Martin 10B60

B00452TR4Y

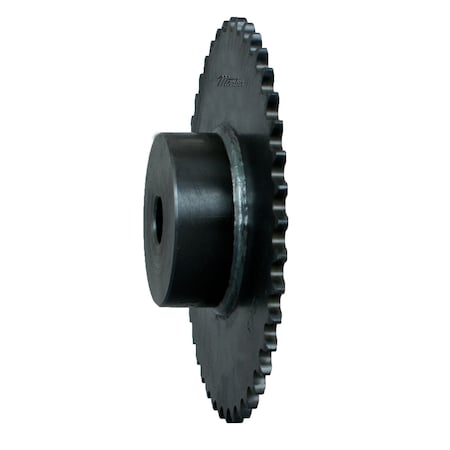

Martin Roller Chain Sprocket, Reboreable, Type B Hub, Single Strand, 10B Chain Size, 15.88mm Pitch, 60 Teeth, 25mm Bore Dia., 312.44mm OD, 95mm Hub Dia., 9.17mm Width

Martin Roller Chain Sprocket, Reboreable, Type B Hub, Single Strand, 10B Chain Size, 15.88mm Pitch, 60 Teeth, 25mm Bore Dia., 312.44mm OD, 95mm Hub Dia., 9.17mm Widthzoom

Attributes

Key Value
Bore Dia. - Sprockets11.5420766308108
bore diameter:25 mm
Bore TypeReboreable
bore type:Reboreable
Caliper Diameter29.8551915770271
caliper diameter:29.9 mm
chain / sprocket type:Metric Roller Chain
Chain Number10B-1
chain number & pitch:10B / 5/8 in
Chain Roller Dia.10.16
chain roller diameter:10.160 mm
chain roller width:0.35 mm
Chordal Pitch9.525
Country of Origin (subj.United States
Hardened TeethNo
hardened teeth:Non-Hardened Teeth
Hub Dia.93.853
Hub Dia. (In.)3.695
hub outside diameter:94 mm
hub style:B
Length through Bore43.9928
Length through Bore (In.1.26
length through bore:44 mm
manufacturer upc number:697950399430
MaterialSteel
material:Steel
maximum bore diameter:0 mm
Min. Bore25.019
Number of Rows1
number of strands acros.1
Number Of Teeth60
Number of Teeth60
number of teeth:60
Outside Dia183.743 mm
Outside Dia.25.3746
Outside Dia. (In.)0.999
outside diameter:183.7 mm
Pin Dia.10.16
Pitch15.875, 15.875 mm
Pitch Dia.303.328746422596
Pitch Dia. (In.)11.9420766308108
Pitch Diameter303.329 mm
pitch diameter:303.3 mm
Roller Width0.354
Sprocket Hub TypeB
storage dimension heigh.1.26 mm
storage dimension lengt.7.23 mm
storage dimension width:7.23 mm
Storage Height1.26
Storage Length7.23399597848651
Storage Width7.23399597848651
Surface TreatmentProtective Coating
surface treatment:Protective Coating
Tooth Thickness8.7122
tooth thickness:9 mm
tooth width:25 mm
TypeMetric Roller Chain
Weight12.6
weight:12.6 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com02301984133.091In StockMartin133.09 @ 1
thumbzoomZoroG2530181154.01In Stock14Martin Sprocket & Gear12.6154.0 @ 1
thumbzoomMRO Supply258482178.11In StockMartin Sprocket178.1 @ 1
thumbzoomPurvis10B60197.721In StockMartin197.72 @ 1
