Molex 39536-4003

mpn0395364003
brandname: Molex
manufacturername: Molex

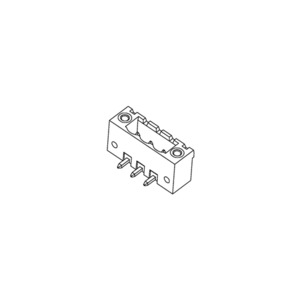

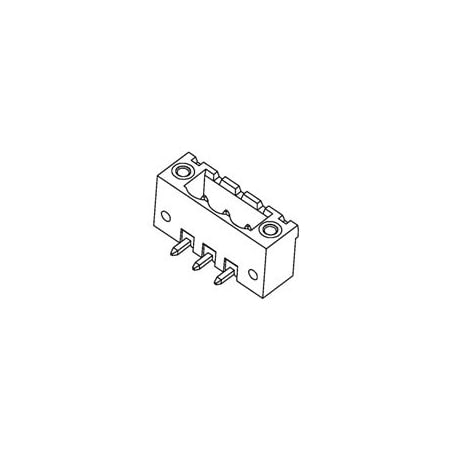

Molex 5.08Mm Euro Header Ra Me Ht Blk 3Ckt Rohs Compliant: Yes - 39536-4003

Molex 5.08Mm Euro Header Ra Me Ht Blk 3Ckt Rohs Compliant: Yes - 39536-4003

zoom

Brand: Molex
PartNumber: 39536-4003
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Base Product Number	039536
Category	Connectors, Interconnec.
Circuits (Loaded)	3
Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.150" (3.81mm)
Current - IEC	-
Current - Maximum per C.	15.0A
Current - UL	15 A
Description	TERM BLOCK HDR 3POS 90D.
Detailed Description	3 Position Terminal Blo.
Digi-Key Part Number	0395364003-ND
Features	Mating Flange
Header Orientation	90?, Right Angle
Housing Material	Polyamide (PA46), Nylon.
Ingress Protection	-
Insulation Height	0.327" (8.30mm)
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Product Nu.	0395364003
Manufacturer Standard L.	13 Weeks
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	3
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Orientation	Horizontal
Package	Bulk
Package Quantity	1
Panel Mount	No
PC Tail Length	5.08mm
PCB Thickness - Recomme.	3.20mm
Pitch	0.200" (5.08mm)
Pitch - Mating Interface	5.08mm
Pitch - Termination Int.	5.08mm
Plug Wire Entry	-
Polarized to Mating Part	Yes
Positions Per Level	3
Product Status	Active
Screw Size	-
Series	Eurostyle ESE 39536
Shrouded	Closed Ends
Stackable	No
Surface Mount Compatibl.	Yes
Temperature Range - Ope.	-40? to +140?C
Termination Style	Solder
Torque - Screw	-
Type	Header, Male Pins, Shro.
UL	E48521
Voltage - Maximum	300V
Voltage - UL	300 V
Wire Gauge or Range - A.	-
Wire Gauge or Range - m.	-
Wire Strip Length	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	39536-4003	0.61	1	770		MOLEX / WALDOM		0.61 @ 1
	Newark	59R7170	0.678	3600	147		MOLEX		0.678 @ 3600
	Digi-Key	2740193	0.6825	3600	147		Molex		0.6825 @ 3600
	Waldom	MOLEX 39536-4003	0.81	70	720		MOLEX		0.81 @ 70
	jensentools.com	10188931	0.96	1	720		Molex		0.96 @ 1
	Radwell	39536-4003	1.8	240	147		MOLEX		1.8 @ 240
	Zoro	G505919064	90.3	1	147		Molex		90.3 @ 1
