Molex / Waldom 87832-5020

mpn87832-5020
brandname: MOLEX / WALDOM
manufacturername: MOLEX / WALDOM

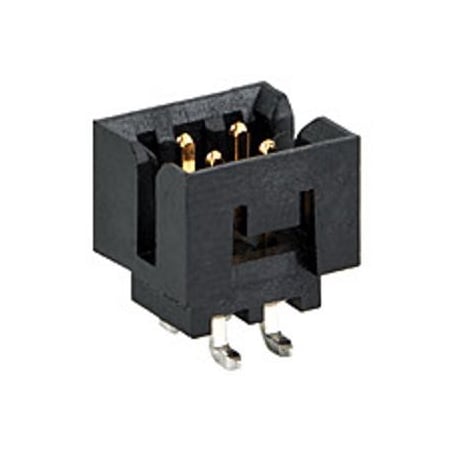

Molex / Waldom 87832-5020 Connector Headers and PCB Receptacles

Molex / Waldom 87832-5020 Connector Headers and PCB Receptacles

zoom

Brand: Molex / Waldom
PartNumber: 87832-5020
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	87832
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	-
Contact Material	Phosphor Bronze
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Current Rating (Amps)	-
Description	CONN HEADER SMD 50POS 2.
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	23-0878325020-ND
Fastening Type	Latch Holder
Features	Board Guide, Keying Slo.
Flammability Rating	UL 94V-0
Hole Center to Center	2 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.252" (6.40mm)
Insulation Material	Polyamide (PA), Nylon, .
Manufacturer	Molex
Manufacturer Product Nu.	0878325020
Manufacturer Standard L.	15 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	125V
Mfr	Molex
Mounting Type	Surface Mount
Number of Contacts	50
Number of Positions	50
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 105?C
Overall Contact Length	-
Package	Tube
Package Quantity	1
Pitch - Mating	0.079" (2.00mm)
Product Status	Active
Row Spacing - Mating	0.079" (2.00mm)
Series	Milli-Grid 87832
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Arrow	87832-5020	2.698	1	10		Molex		2.698 @ 10
	Onlinecomponents.com	87832-5020	2.85	1	807		MOLEX / WALDOM		2.85 @ 10
	Newark	01AH1748	3.05	1	124		MOLEX		3.05 @ 10
	Waldom	MOLEX 87832-5020	3.11	20	544		MOLEX		3.11 @ 20
	jensentools.com	10197805	4.15	1	10		Molex		4.15 @ 10
	Hotenda	H1300372	4.752	1	10		Molex		4.752 @ 10
	Mouser	538-87832-5020	5.17	1	88		Molex		5.17 @ 10
	Digi-Key	699192	6.215	1	2026		Molex		6.215 @ 10
	Zoro	G105891159	109.8	20	10		Molex		109.8 @ 20
