NKK Switches LB26CKW01

B010IJ24B0

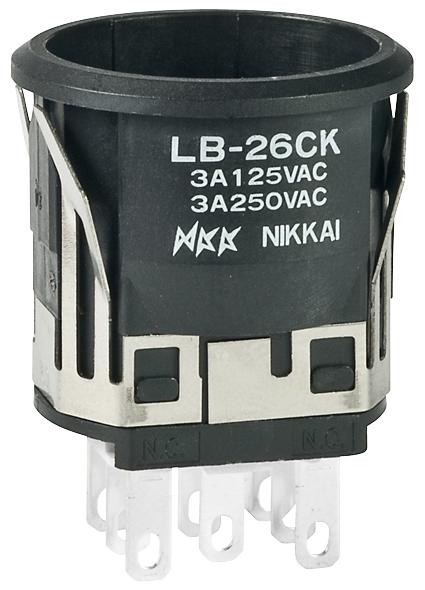

NKK Switches Part Number LB26CKW01

NKK Switches Part Number LB26CKW01zoom

Attributes

Key Value
AC contacts rating @R3A / 250V AC
ActuatorWithout Cap
Actuator TypeRound
Alternate Part No.633-LB26CKW01
Body colourBlack
Body dimensions?23.7x23.3mm
Body materialpolyamide
Body StyleStandard
BrandNKK Switches
Button shapeRound
Casing MaterialStainless Steel
ColorBlack
Conform to the normCSA
Contact FormDPDT
Contact materialphosphor bronze
Contact MaterialSilver
Contact PlatingSilver
Contact platingsilver plated
Contact Resistance50 mOhms
Contacts configurationDPDT
Cover ColorClear/White Cap
Current Rating3 A
DC contacts rating @R3A / 30V DC
Dielectric Strength1500 VAC
Electrical Life100000 Operations (Min.)
Electrical life100000 cycles
FeaturesButton/cap ordered sepa.
Flammability RatingUL 94 V-0
Housing MaterialPolyamide, Glass Fiber .
IlluminationNone
Illumination ColourNone
Insulation Resistance200 MegaOhms
Key stroke3mm
Kind of materialfiber glass reinforced
Leadsconnectors 2,8x0,5mm
Lens ColorLens and LED lamp sold .
ManufacturerNKK Switches
Manufacturer Part No.LB26CKW01
Manufacturer seriesLB
Max. contact resistance:50m?
Mechanical durability200000 cycles
Mechanical Life1000000 Operations (Min.
Min. insulation resista.200M?
Mountingon panel,
Mounting Hole Size0.866 in
Mounting StylePanel
Mounting TypePanel Mount, Snap In
Number of Poles2
Number of Positions2
Number of positions2
Number of terminals6
Operating Force4.41N, 4.41 N
Operating Temperature-25 to +50 ?C
Operating temperature-25...70?C
OperationOn-On
Part # AliasesLB-26CKS1
Poles number2
Product CategoryIlluminated Pushbutton .
SeriesLB, LB Series
Stable positions number2
StandardsUL Recognized, CSA Cert.
Switch FunctionON - ON
Switching methodOn-On
Terminal MaterialPhosphor Bronze with Si.
Terminal SealEpoxy
TerminationSolder ; QC Tabs
Termination StyleSolder Lug
TypePush Button
Type of switchpush-button
Voltage Rating125 V
Voltage Rating AC250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7019294413.81In StockNKK Switches13.8 @ 1
thumbzoomswatee.comLB26CKW0118.6216NKK Switches18.62 @ 1
AmazonTPB00HKHYYX020.241In Stock5NKK Switches20.24 @ 1
AmazonSCB00HKHYYX020.241In StockNKK Switches20.24 @ 1
TMELB26CKW0120.551In StockNKK SWITCHES20.55 @ 1
thumbzoomNewark10X280822.461In StockNKK SWITCHES22.46 @ 1
