- mpn80253295
- brandname: Ohaus
- manufacturername: Ohaus

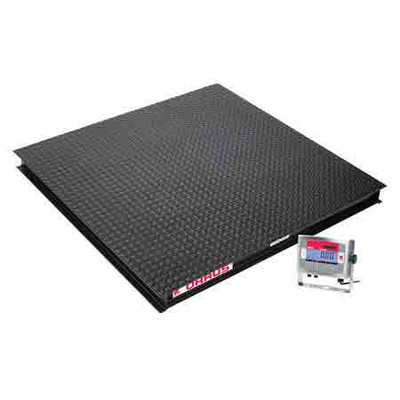

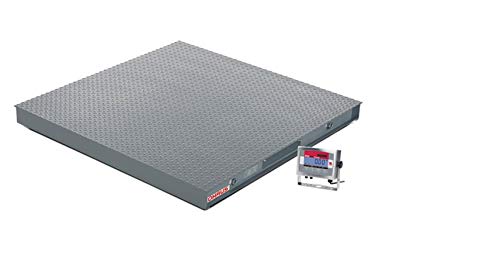

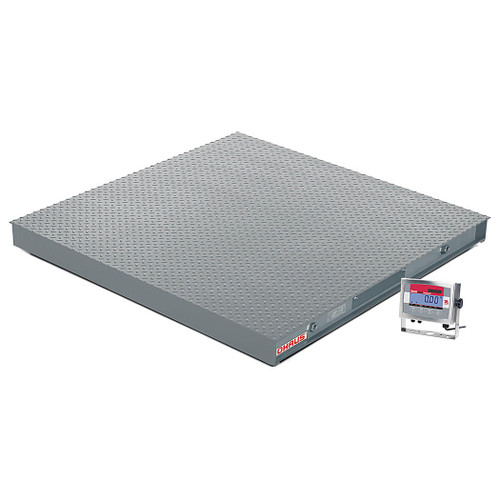

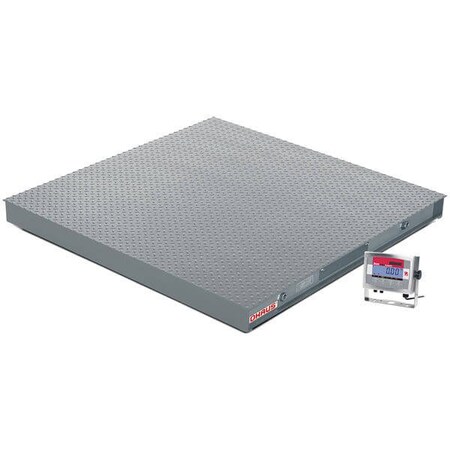

Washdown Floor Scale, 5000 lb, 4' x 4' Platform
- Brand: Ohaus
- PartNumber: 80253295
- Model: VX32XW5000L
- PackageQuantity: 1
- Manufacturer: Ohaus
- Label: Ohaus
Attributes
| Key | Value |
|---|
| Application | Parts Counting, Weighing |
| Approvals | NTEP certified" |
| asin | B00S3XI8EG |
| Auto-Zero Tracking | Off, 0.5, 1 or 3d |
| battery-life | 58 Hours with Rechargea. |
| Brand | OHAUS |
| brand | VX Series Floor Scales |
| Calibration | No |
| Capacity | 5000 lbs., 5,000 lb |
| Capacity x emin | 5,000 lb x 1 lb / 2,200. |
| capacity-lb | 5000 |
| Certified Readability (. | 1 lb |
| Class | III |
| communication | RS232 (Included) |
| Communication | RS232C bi-directional |
| Country of Origin (subj. | China |
| Dimensions | 4 ft x 4 ft |
| dimensions | 4.5 in x 4 ft x 4 ft (1. |
| Display | Backlit LCD, 1 in / 25 . |
| Feet | 4 x Ball-in-cup design,. |
| gtin | 00030955172491 |
| HPIS Code | 770_180_35_20 |
| Indicator | T32XW |
| Indicator Construction | Stainless steel housing. |
| Indicator Dimensions (W. | 8.3 x 2.8 x 5.8 in. / 2. |
| Interface | No |
| IP Rating | IP67 for shear beam loa. |
| Item | Vx Series Vx32xw5000L F. |
| Junction Box | Side panel access, IP65. |
| Keyboard | 4-button, raised with t. |
| Latex Free | No |
| legal-for-trade | NTEP Certified |
| list-price | 3457.00 |
| Load Cell | 4 x Shear Beam, IP67, N. |
| Load Cell Excitation Vo. | 5V~15V DC/AC |
| Load Cell Output Impeda. | 350 ? ? 3 ? |
| Manual | VX32XW5000L_Manual.pdf |
| manufacturer-part-number | VX32XW5000L |
| Material | Epoxy painted carbon st. |
| Maximum Central Load | 100% of maximum capacity |
| Model | VX32XW5000L |
| model | VX32XW5000L |
| Net Weight | 220 lb / 100 kg |
| net-weight | 229 lb (104 kg) |
| NTEP | Yes |
| ntep | Yes |
| NTEP Resolution | NTEP 5000d |
| Operating Temperature | 14? to 104?F / -10? to . |
| part-number | 80253295 |
| Platform Construction | 1/4 inch painted Carbon. |
| Platform Dimensions (W . | 4 ft x 4 ft x 4.5 in. |
| platform-construction | Painted Steel Diamond P. |
| platform-size | 4 ft x 4 ft (1,219 mm x. |
| Power | Power Cord, Rechargeabl. |
| power | AC Power (Included);Rec. |
| Product Type | Scale |
| protection-rating | IP 65 |
| Readability | 1 lb, 1 lb. |
| readability-certified | 1 lb (0.5 kg) |
| readability-lb | 1 |
| Resolution | NTEP 5000d |
| Safe Endload Capacity | 100% of maximum capacity |
| Scale Name | Floor Scales |
| Shipping Weight | 285 lb / 129 kg |
| Spec Sheet | VX32XW5000L_Spec_Sheet.. |
| Stabilization Time | 2 seconds or less |
| tare-range | To capacity by subtract. |
| Unit of Measure | No |
| units-of-measure | Gram;Kilogram;Ounce;Pou. |
| warranty-covering-parts. | 1 Year |
| Weighing Units | lb, kg, oz, g, lb-oz |
| Weight | 450 lb / 195 kg |
| working-environment | 14?F ? 104?F, 85%RH, no. |
| Zeroing Range | 0%, 2% or 100% of capac. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Solutions Direct | 80253295 | 1510.6 | 1 | 5 | | Ohaus | | 1510.6 @ 1 |
 | unbeatablesale.com | OHAS002 | 1831.15 | 1 | In Stock | | OHAUS | | 1831.15 @ 1 |
 | spectraservices.com | 80253295 | 1901.35 | 1 | In Stock | | OHAUS | | 1901.35 @ 1 |
 | Megadepot | 80253295 | 1939.0 | 1 | In Stock | | Ohaus | 285.0 | 1939.0 @ 1 |
 | usmegastore.com | 80253295 | 1940.0 | 1 | In Stock | | Ohaus | 285.0 | 1940.0 @ 1 |
 | scalesplus.com | 80253295 | 2234.43 | 1 | In Stock | | OHAUS | 450.0 | 2234.43 @ 1 |
 | novatech-usa.com | OHA-80253295 | 2247.05 | 1 | In Stock | | Ohaus | | 2247.05 @ 1 |
 | sycamorelifesciences.com | 80253295 | 2376.0 | 1 | In Stock | | Ohaus | | 2376.0 @ 1 |
 | certifiedmtp.com | V025.80253295 | 2534.98 | 1 | In Stock | | Ohaus | | 2534.98 @ 1 |
 | dscbalances.com | 80253295 | 2920.0 | 1 | In Stock | | Ohaus | 229.0 | 2920.0 @ 1 |
| graylinemedical.com | 80253295 | 3052.99 | 1 | In Stock | | Ohaus | | 3052.99 @ 1 |
 | ramotrading.com | 80253295 | 3177.91 | 1 | In Stock | | Ohaus | | 3177.91 @ 1 |
 | Zoro | G4927633 | 3453.01 | 1 | In Stock | 25 | Ohaus | 1.0 | 3453.01 @ 1 |
