Schneider Electric XB7NS8442

B00CONDSYQ

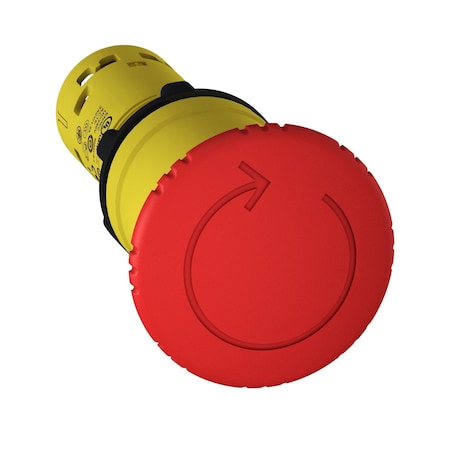

SCHNEIDER ELECTRIC XB7NS8442 Estop Ttr 1N/C

SCHNEIDER ELECTRIC XB7NS8442 Estop Ttr 1N/Czoom

Attributes

Key Value
[Ie] Rated Operational .0.1 A 250 V, DC-13, R30.
[Ui] Rated Insulation V.250 V 3)EN/IEC 60947-1
[Uimp] Rated Impulse Wi.4 kV EN/IEC 60947-1
ActionSnap action
Actuatorlatching;Red mushroom ?.
Actuator ColorRed
Actuator TypeMushroom 40 mm Push-Pull
Ambient Air Temperature.-40-70?C
BrandSchneider Electric
Cad Overall Depth72 mm
Cad Overall Height40 mm
Cad Overall Width40 mm
Case ColorYellow
Catalog NumberXB7NS8442
CategorySwitches
CircuitSPST-NC
ColorRed
ConnectionScrew clamp terminals,
Connections - Terminalsscrew clamp terminals, .
Contact Configuration1 NC, 1NC
Contact OperationSnap action
Contact Rating250 V
Country of OriginIndonesia
Current Rating0.6 A
Current Rating (Amps)1.5A (AC), 220mA (DC)
DescriptionHARMONY XB7, MONOLITHIC.
Device Short NameXB7
Digi-Key Part Number4008-XB7NS8442-ND
Electrical Reliability? < 5 x 10exp(-7) 17 V .
EnclosureNEMA 12 UL 50-NEMA 3 UL.
Features-
Fixing Center>= 30 x 40 mm support p.
Fixing Modefixing nut beneath head.
Illumination Voltage (N.-
Includes-
Ingress ProtectionIP65 - Dust Tight, Wate.
Insulation250 V 3)EN/IEC 60947-1
Ip Degree Of ProtectionIP20 IEC 60529 rear fac.
IP RatingIP65
ItemEstop Ttr 1NC
Item TypeEMERGENCY STOP PUSH-BUT.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.XB7NS8442
Manufacturer Standard L.1 Weeks
Maximum Operating Tempe.70 ?C
MfrSchneider Electric
Minimum Operating Tempe.-25 ?C
MountingMounting Holes
Mounting Diameter22 mm
Mounting Hole Size22 mm
Mounting TypePanel Mount, Front, Pan.
Operating Temperature-25?C ~ 70?C, -25-70 A .
OperationTwst Rel
Operator Profilered mushroom ? 40 mm, u.
PackageBox
Panel Cut Out22 mm
Panel Cutout DimensionsCircular - 22.00mm Dia
Positive Openingwith EN/IEC 60947-5-1 a.
Product CertificationsCCC || GOST
Product Or Component Ty.EMERGENCY STOP PUSH-BUT.
Product StatusActive
Reset OperationTwist
SeriesHarmony XB7, Harmony XB.
Shape Of Signaling Unit.round
Short-Circuit Protection4 A cartridge fuse gG E.
Size22 mm, 0.87
Special FeaturesEMERGENCY STOP PUSH-BUT.
Standard1000000 CYCLES, DC-13, .
StandardsEN/IEC 60947-1 || UL 50.
Sub BrandXB7
Switch FunctionTurn to Release, On-Off
Temperature Operating R.-25 to +70 ?C
Terminal TypeScrew Clamp
TerminationScrew
Termination StyleScrew Terminal
UPC785901979609
UPC Code785901979609
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Voltage Rating120 V
Voltage Rating - AC120 V
Voltage Rating - DC125 V
Voltage, Rated AC240 V
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers242-569028.6813Schneider Electric28.68 @ 1
thumbzoomkempstoncontrols.co.ukXB7NS844228.90584451In StockSchneider28.9058445 @ 1
standardelectricsupply.com226867053.47129Schneider Electric53.47 @ 1
us.rs-online.com7027334656.68110Schneider Electric56.68 @ 1
thumbzoomNewark96W064161.9410In StockSCHNEIDER ELECTRIC61.94 @ 10
thumbzoomDigi-Key1661463766.3219Schneider Electric66.32 @ 1
thumbzoomRadwellXB7NS844270.010In StockSCHNEIDER ELECTRIC TELEMECANIQUE70.0 @ 10
thumbzoomcrescentelectric.com25369381.731In StockSchneider Electric81.73 @ 1
thumbzoomZoroG1207182558.910In StockSchneider Electric0.1558.9 @ 10
