SKF SY 3/4 TF

B007VH2XA0

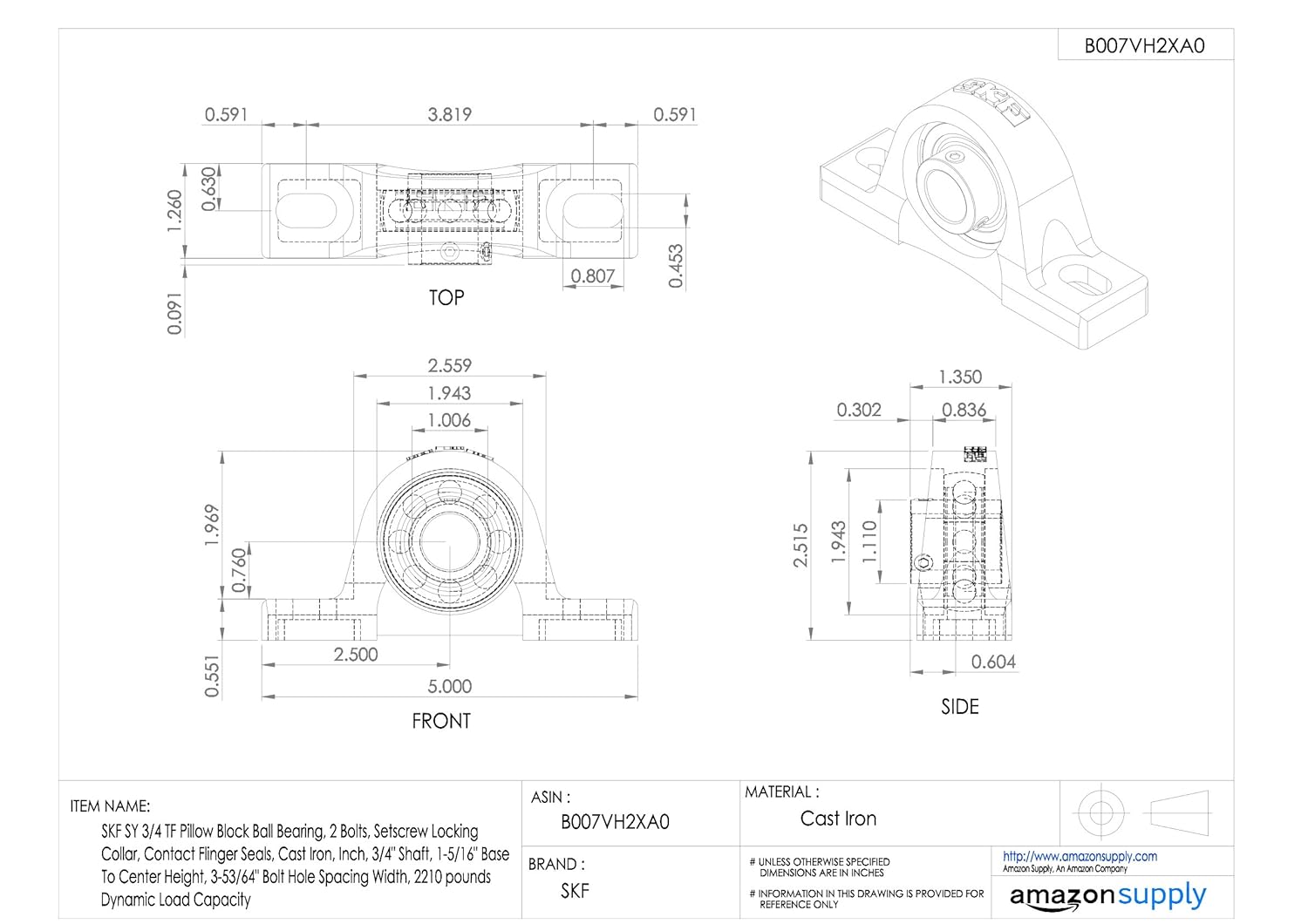

SKF SY 3/4 TF Pillow Block Ball Bearing, 2 Bolts, Setscrew Locking Collar, Contact Flinger Seals, Cast Iron, Inch, 3/4" Shaft, 1-5/16" Base To Center Height, 3-53/64" Bolt Hole Spacing Width, 2210 pounds Dynamic Load Capacity

SKF SY 3/4 TF Pillow Block Ball Bearing, 2 Bolts, Setscrew Locking Collar, Contact Flinger Seals, Cast Iron, Inch, 3/4" Shaft, 1-5/16" Base To Center Height, 3-53/64" Bolt Hole Spacing Width, 2210 pounds Dynamic Load Capacityzoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
Base to Center Height1.313 Inch | 33.35 Mill.
Bolt Spacing Maximum4.188 Inch | 106.375Mil.
Bolt Spacing Minimum3.469 Inch | 88.113Mill.
Bore0.75 Inch | 19.05 Milli.
BrandSKF
CategoryPillow Block Bearings
Category - BDIPillow Block
EAN7316577748720
Expansion / Non-expansi.Non-expansion
Global Part Number GPN501366
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style2 Bolt Pillow Block
Inch - MetricInch
Insert Part NumberYAR 204-012-2F
Keyword StringPillow Block
Length Thru Bore1.219 Inch | 30.963 Mil.
Long Description2 Bolt Pillow Block; 3/.
Manufacturer Item NumberSY 3/4 TF
Manufacturer NameSKF
Minimum Buy QuantityN/A
Mounting Bolts3/8 Inch
Mounting MethodSet Screw
Nominal Bolt Center to .3.8 Inch | 97 Millimeter
NounBearing
Number of Mounting Holes2
Other FeaturesSingle Row | Standard D.
price$ 59.98 / each
Product Group - BDIM06110
RelubricatableYes
Rolling ElementBall Bearing
SealsM Seal
titleSY 3/4 TF
UNSPSC31171511
Weight / kgm0.64
Weight / Kilogram0.64
Weight / LBS1.4

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonSCB007VH2XA033.651In StockSKF33.65 @ 1
RS Delivers339-839446.0441In StockSKF46.044 @ 1
thumbzoomLily BearingSY 3/4 TF50.981In StockSKF1.40850.98 @ 1
us.rs-online.com7361912471.231In StockSKF Bearings71.23 @ 1
thumbzoomPurvisSY 3/4 TF80.161In StockSKF80.16 @ 1
thumbzoomBDI Express142204992.371In StockSKF1.40892.37 @ 1
