Square D D571539-9070TF100D2

B074JGMPLM

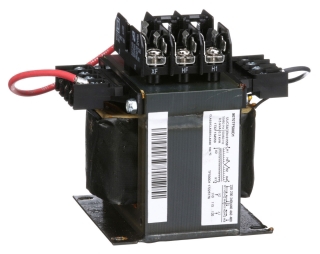

SQUARE D 9070TF100D2 VOLTAGE TRANSFORMER 100VA 1PH 240/480V-AC 24V-AC D571539

SQUARE D 9070TF100D2 VOLTAGE TRANSFORMER 100VA 1PH 240/480V-AC 24V-AC D571539zoom

Attributes

Key Value
ApplicationFSC1
ApprovalsCSA, UL
BrandSquare D by Schneider E.
Catalog Number9070TF100D2
Connection Typescrew clamp terminals
Country of OriginMX - Mexico, Mexico
Depth3.38 in
ECCNEAR99
EnclosedNo
EnclosureNOT RATED (OPEN DEVICE)
Enclosure FinishEpoxy Resin Varnish
Enclosure Style - Trans.Open
Family SeriesSquare D Transformers
FusedYes
Gross Weight0 lbs
Height4.25 in
Hz50/60
Hz - Electrical50 Hz, 60 Hz
IncludesTop Mounted Fuse Block
Input Voltage240/480VAC
Input Voltage - Transfo.240V AC, 480V AC
Item - TransformerControl Transformer
Item Number9070TF100D2
Item TypeTF
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturers Warranty .1 yr
MountingPanel
Mounting - TransformerFoot
Net Weight0 lbs
Output Voltage24VAC
Output Voltage - Transf.24V AC
Phase1
Phase - Electrical1
Primary Voltage240 V, 480 V, 240 x 480.
Protective DevicePrimary Fuse, Secondary.
RoHSYes
Secondary Voltage24 V, 24
Series9070TF
Special FeaturesINDUSTRIAL CONTROL TRAN.
StandardCE-CSA-UL LISTED
StandardsCE Compliant, CSA Certi.
Temperature Rating55 DEGREES C
Temperature Rise (F)131 ?F
TerminationScrew Clamp
Transformer TypeWire-Wound
UNSPSC39121002
UPC785901905219
Use WithFSC1
VA Rating100 VA, 100VA, 100 VA U.
VA Rating - Transformer100 VA
Warranty DescriptionContractual Warranty:18.
Width3.34 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2935773230.4118Square D4.5230.4 @ 1
thumbzoomblackhawksupply.com9070TF100D2246.381In StockSquare D246.38 @ 1
thumbzoomsustainablesupply.comC1168979250.351In StockSquare D4.5250.35 @ 1
Grainger1YUW5252.51180SQUARE D252.5 @ 1
thumbzoomNational Supply Network69661692263.231In StockSquare D263.23 @ 1
thumbzoomRadwell9070TF100D2280.013SCHNEIDER ELECTRIC SQUARE D280.0 @ 1
thumbzoomGalco9070TF100D2-SQD280.361In StockSquare D280.36 @ 1
standardelectricsupply.com122866287.991In StockSquare D287.99 @ 1
thumbzoommidwestapplianceparts.com9070TF100D2-SQ-P300.611In StockSquared300.61 @ 1
thumbzoomNewark17B2926307.361In StockSQUARE D BY SCHNEIDER ELECTRIC307.36 @ 1
thumbzoomgordonelectricsupply.com9070TF100D2318.01In Stock10SQUARE D318.0 @ 1
us.rs-online.com72195851326.2411Square D326.24 @ 1
thumbzoomRaptor SuppliesAF6QCH354.7586251In StockSQUARE D354.758625 @ 1
thumbzoomptacsolutions.com9070TF100D2367.991In StockSchneider Electric (Square D)367.99 @ 1
Graybar96020757446.62241In StockSquare D (Schneider Electric)446.6224 @ 1
thumbzoomcrescentelectric.com94406551.31In StockSquare D by Schneider Electric551.3 @ 1
