Square D D321NRB

B07J5TLP7L

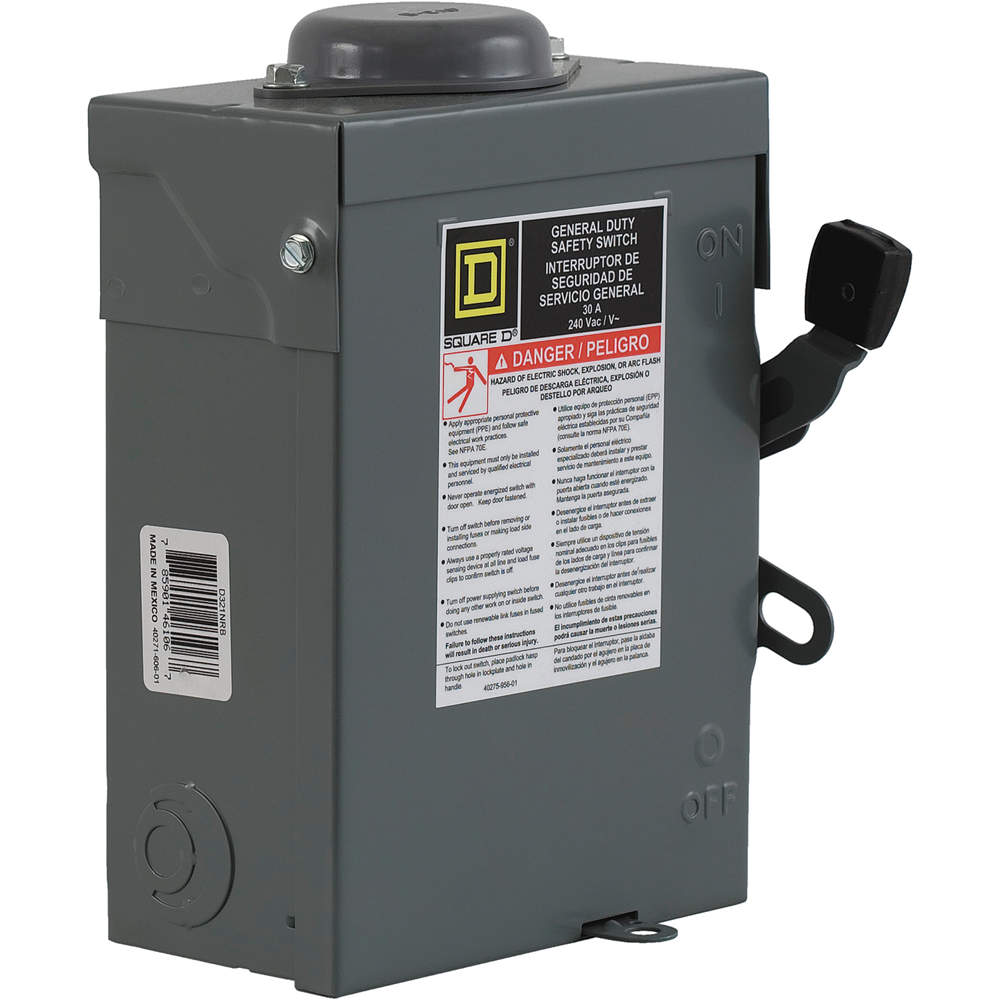

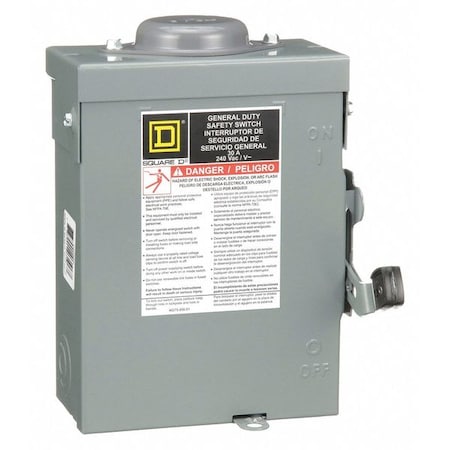

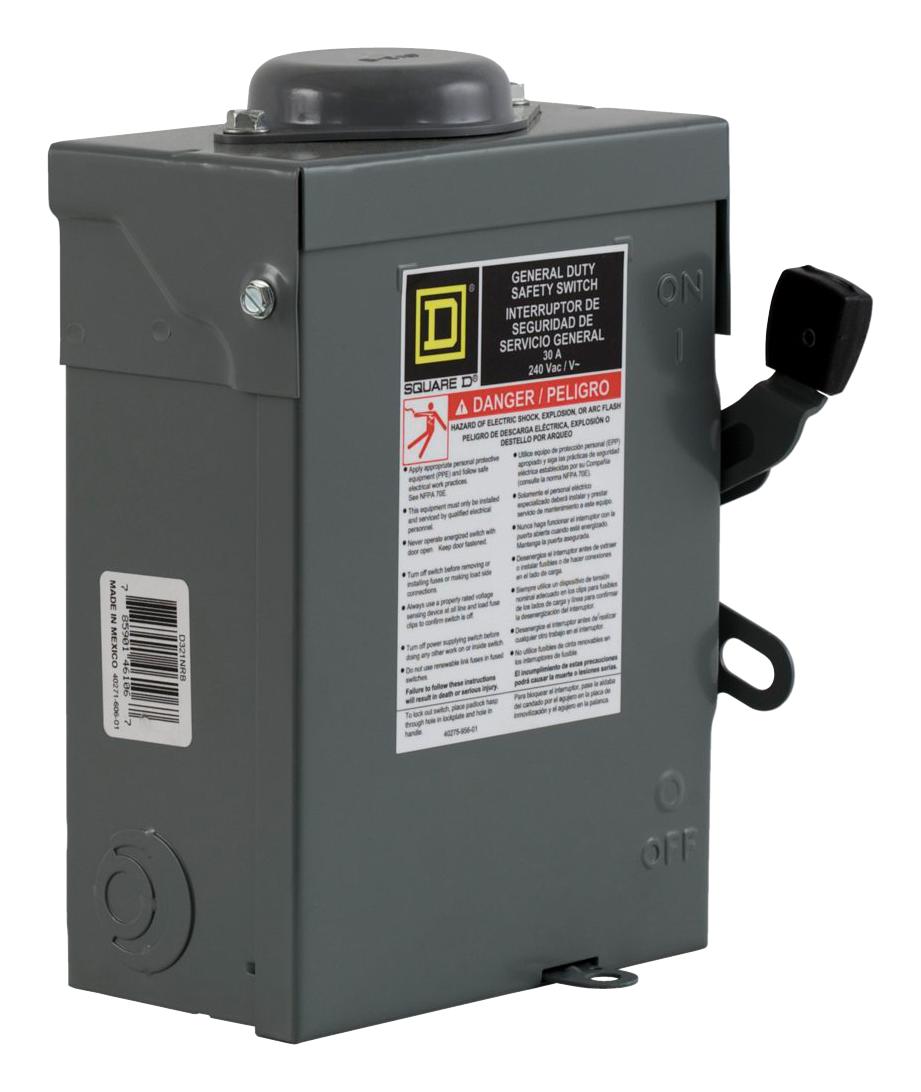

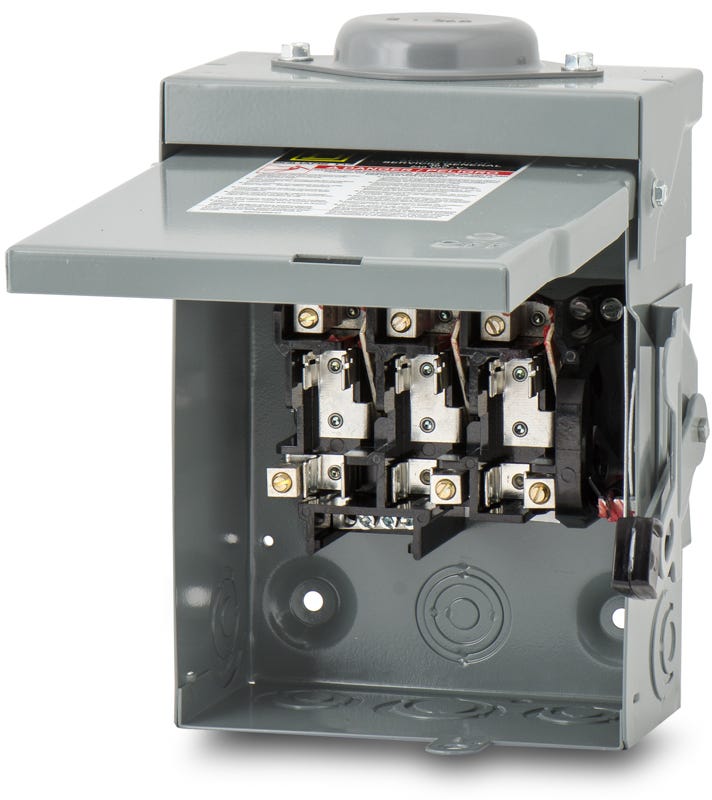

Square D Safety Switch, 3R NEMA Enclosure Type, 30 Amps AC, 7-1/2 HP @ 240 VAC HP

Square D Safety Switch, 3R NEMA Enclosure Type, 30 Amps AC, 7-1/2 HP @ 240 VAC HPzoom

Attributes

Key Value
ActionSINGLE THROW
Amperage Rating30A, 30
Amps AC30 A
ApplicationResidential
ApprovalsROHS, UL
BrandSquare D
Catalog NumberD321NRB
ColorGrey
CompositionMetallic
ConditionNew
ConnectionLugs;AWG 14...AWG 6 cop.
Contact Form3PST
Contactor TypeLighting
Country of OriginMX - Mexico, Mexico
Current Rating30 A
Current Stock97
Depth3.8 in
DutyGeneral
Duty RatingGeneral Duty
ECCNEAR99
EnclosureNEMA 3R
Enclosure H x W9 3/4 in x 7 3/4 in
Enclosure Height0 to 9 3/4 inches
Enclosure RatingNEMA 3R
Enclosure Width0 to 9 3/4 inches
Environmental ConditionsRAINPROOF AND SLEET/ICE.
Estimated Lead Time (in.6
Family SeriesSquare D Safety Switches
For Use WithClass H, K, R, T Fuse
Fuse TypeClass H, K, or R
FusibilityFusible
FusibleYes
Fusible / NonfusibleFusible
Gross Weight4.875 lbs
GTIN00785901461067, 7859014.
Gtin785901461067
Height9.6 in
HP7-1/2 hp @ 240 V AC
International ShippingNo
IP Rating14
ItemSingle Throw Safety Swi.
Item NumberD321NRB
Item TypeFusible disconnect swit.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number421622
MaterialGalvannealed Steel
Material of ConstructionGalvannealed Steel
Maximum Current30 A
Metallic / Non-MetallicMetallic
MountingSurface
Mounting TypeSurface Mount
MpnD321NRB
NEMA Enclosure Type3R
Nema RatingIndoor
NEMA Rating3R
Net Weight4.875 lbs
NeutralYes
Number of Poles3
Number of Wires4
Phase3
Protection MethodFusible
SeriesD3 Series, D
Size3.75
SKUZO-G2942931
Special FeaturesGeneral Duty
StandardsUL listed
Sub BrandGeneral Duty
SubCategoryElectrical
Switch TypeGeneral Duty
Terminal TypeLugs
TypeFusible
UNSPSC39122205
UPC785901461067
Upc785901461067
UPC Code785901461067
Voltage240V AC, 240 V
Voltage Rating240 V AC, 240 V
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width7.7 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC1166748131.131In StockSquare D4.9131.13 @ 1
thumbzoomgordonelectricsupply.comD321NRB134.621In Stock10SQUARE D134.62 @ 1
standardelectricsupply.com102412134.621In StockSquare D134.62 @ 1
thumbzoomNewark15B7535153.81In StockSQUARE D BY SCHNEIDER ELECTRIC153.8 @ 1
thumbzoomsuperbreakers.comD321NRB156.01In StockSquare D156.0 @ 1
thumbzoomAllfusesD321NRB159.191In StockSquare D159.19 @ 1
Graybar88239381159.555212Square D (Schneider Electric)159.5552 @ 1
thumbzoomindustrialrefrigerationparts.comD321NRB164.111In StockSquare D2.0164.11 @ 1
thumbzoomGalcoD321NRB-SQD170.5812Square D4.875170.58 @ 1
us.rs-online.com70061043172.218Square D172.2 @ 1
thumbzoomZoroG2942931174.57171Square D4.9174.57 @ 1
thumbzoomsimsupply.comZO-G2942931202.45197Square D202.45 @ 1
thumbzoomblackhawksupply.comD321NRB228.51In StockSquare D228.5 @ 1
thumbzoomRaptor SuppliesAG9FZF235.14630751In StockSQUARE D235.1463075 @ 1
thumbzoomUnited Electric56017290.071In StockSQUARE D290.07 @ 1
thumbzoomNational Supply Network69525012305.161In StockSquare D305.16 @ 1
thumbzoomcrescentelectric.com109407379.8412Square D379.84 @ 1
