Square D by Schneider Electric 9007CB33S1

B00CONJ368

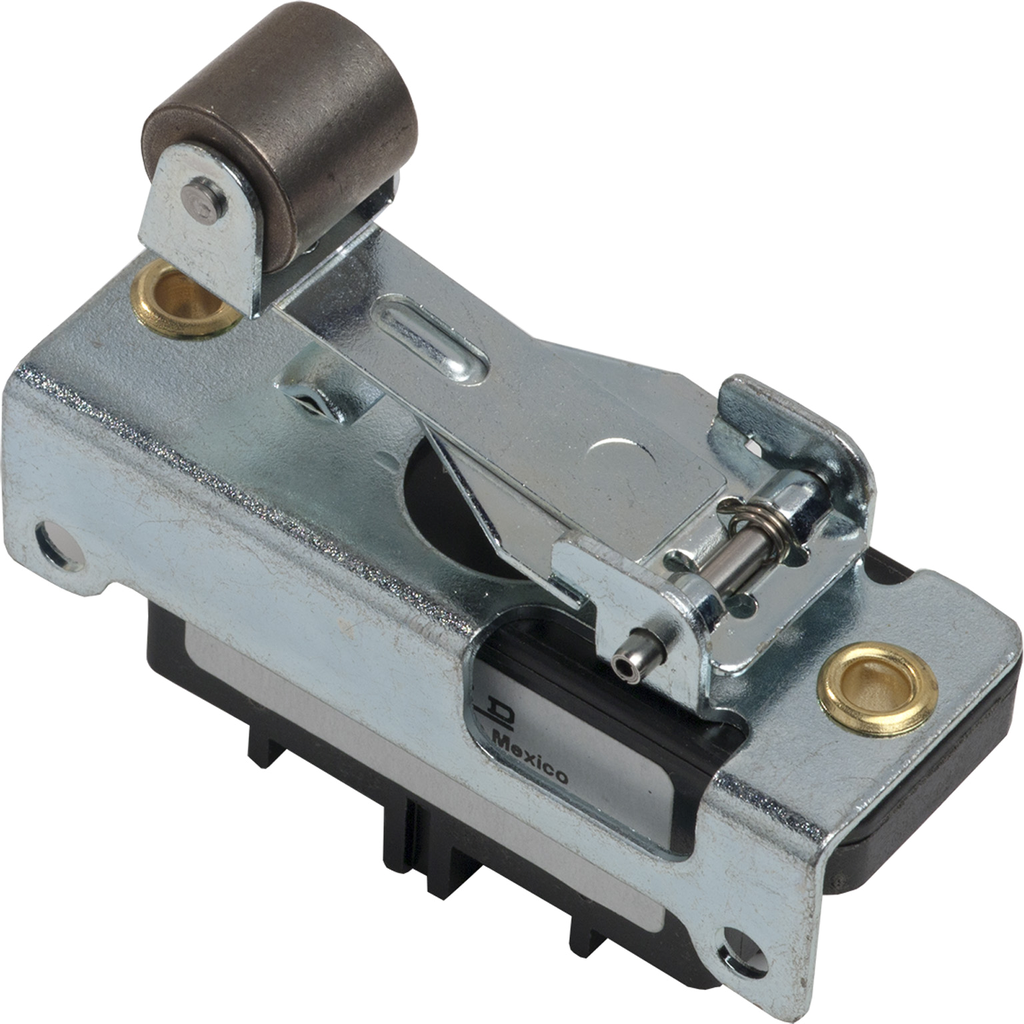

Square D 9007CB33S1 Industrial Limit Switch, Rigid 15/32" Wide Roller Lever Plunger Operator, 2 NO + 2 NC Contacts, Right-Hand Mounting Bracket

Square D 9007CB33S1 Industrial Limit Switch, Rigid 15/32" Wide Roller Lever Plunger Operator, 2 NO + 2 NC Contacts, Right-Hand Mounting Bracketzoom

Attributes

Key Value
[Ie] Rated Operational .0.6 A 600 V AC, B600 NE.
[Ithe] Conventional Enc.10 A
[Ui] Rated Insulation V.600 V 3)UL 508 contact .
Ambient Air Temperature.-20-185 ?F
Ambient Air Temperature.-20-185 ?F, -20-185?F
Body Materialcast zinc
Body Typefixed
California Proposition .Diisononyl phthalate (D.
Contact FormForm ZZ
Contact Operationsnap action
Contacts Materialsilver contacts
Contacts Type And Compo.2(NC-NO) DPDT-DB
Country of OriginMX - Mexico
Depth2.54 in
Device Short Name9007AO/CO
ECCNEAR99
Electrical Connection1-2 6 binder head screw.
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectivePro-active compliance (.
Fixing Modeby the body
Height2.5 in
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemSnap Switch 600V 10Amp .
Materialmetal
Maximum Force For Tripp.0.5 lbf
Mercury FreeYes
Minimum Force For Tripp.0.5 lbf
Movement Of Operating H.linear
Nema Degree Of Protecti.NEMA 1 Nema type 250
Net Weight1.5 lb(US)
Number Of Poles2
Number Of Steps1
Operator Materialcast zinc
Operator Profileplunger head
Positive Openingwithout
Product Or Component Ty.snap limit switch
Promotion RestrictionNot eligible for promot.
Range Of Product9007
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Series Nameheavy duty
Sustainable Offer StatusGreen Premium product
Switch Actuationby 30? cam
Terminals Description I.(5-6)NC || (1-2)NC || (.
Type Of Approachtraverse approach, 2 di.
Type Of Operatorspring return roller le.
UNSPSC39122209
Warranty18 months
Watertight - Snap Actio.No
Width0.95 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0839828124.991In StockSquare D0.2124.99 @ 1
thumbzoommostelectric.com9007CB33S1143.121In StockSQUARE D/TELEMECANIQUE143.12 @ 1
thumbzoomsustainablesupply.comC3044918171.851In StockSquare D0.2171.85 @ 1
thumbzoomgordonelectricsupply.com9007CB33S1189.591In Stock10SQUARE D189.59 @ 1
steinerelectric.com346238198.331In StockSquare D?198.33 @ 1
thumbzoommayerelectric.comSQD9007CB33S1206.731In StockSQUARE D1.5206.73 @ 1
Graybar88293069273.561In StockSquare D (Schneider Electric)273.56 @ 1
