TE Connectivity 530781-7

B096T2W8YF

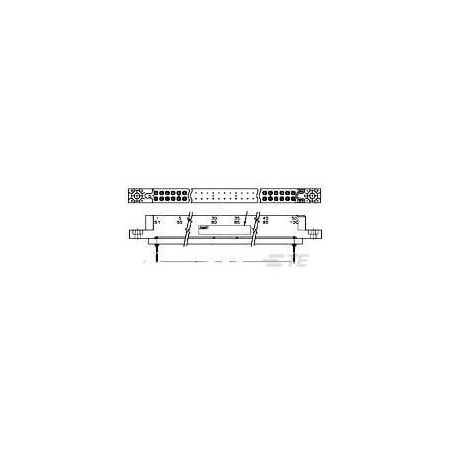

Box Connector Assembly

Box Connector Assemblyzoom

Attributes

Key Value
Applications-
Base Product Number530781
CategoryConnectors, Interconnec.
ColorBlue
Connection MaterialBeryllium Copper
Connector Terminates ToPrinted Circuit Board
Connector TypeReceptacle
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - Post-
Contact Finish Thicknes.50.0?in (1.27?m)
Contact Finish Thicknes.-
Contact Length - Post0.405" (10.29mm)
Contact MaterialBeryllium Copper
Contact Plating Thickne.50 ?in
Contact ShapeCircular
Contact TypeSocket, Female Socket
Current Rating (Amps)-
DescriptionCONN RCPT 90POS 0.1 GOL.
Detailed Description90 Position Receptacle .
Digi-Key Part Number530781-7-ND
Fastening TypePush-Pull
FeaturesMating Guide
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorBlue
Insulation Height0.400" (10.16mm)
Insulation MaterialDiallyl Phthalate (DAP)
ItemPCB Mount Receptacle
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.530781-7
Manufacturer Standard L.34 Weeks
Mated Stacking Heights-
MaterialDiallyl Phthalate
Material Flammability R.-
MfrTE Connectivity Aerospa.
Mounting TypeThrough Hole
Number of Contacts90
Number of Positions90
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
PackageBulk
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesMilitary, MIL-DTL-55302.
StyleBoard to Board
Terminal FinishTin-Lead Plated
Terminal TypeThrough Hole; Wrap-Type
TerminationWire Wrap
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AvnetM55302/27-169297.0158756In StockTE Connectivity / AMP297.01587 @ 56
WaldomTE CONNECTIVITY AMP BRAND 530781-7311.264245TE CONNECTIVITY/AMP BRAND311.26 @ 4
Electro SonicM5530227169314.32181300TE Connectivity / AMP314.3218 @ 1
Allied ElectronicsE5182832322.7856In StockTE Connectivity322.78 @ 56
Onlinecomponents.com530781-7330.411289TE Connectivity / AMP Brand330.41 @ 1
thumbzoomDigi-Key2259869417.914245TE Connectivity Aerospace, Defense and Marine417.91 @ 4
Newark96Y2552422.24245AMP - TE CONNECTIVITY422.2 @ 4
thumbzoomZoroG7010436241631.961In StockTe Connectivity1631.96 @ 1
