- mpnUCFB204-12A
- brandname: TRITAN
- manufacturername: TRITAN

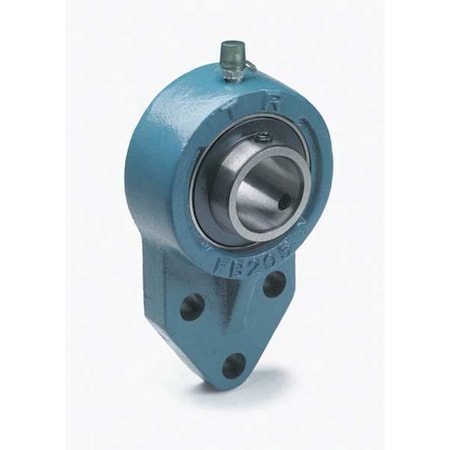

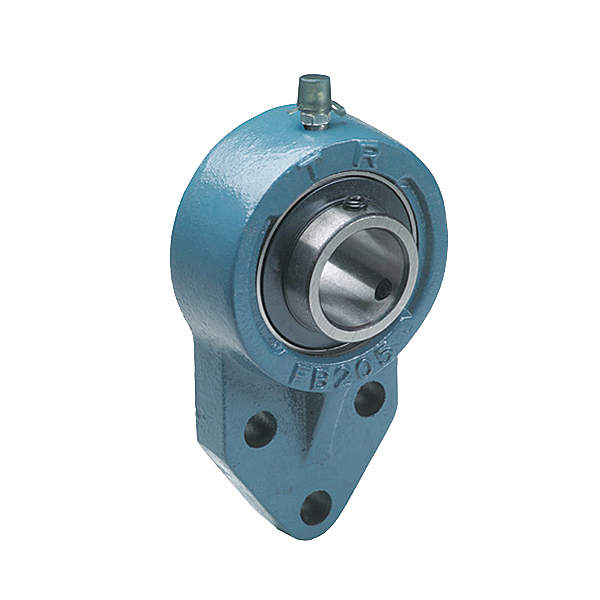

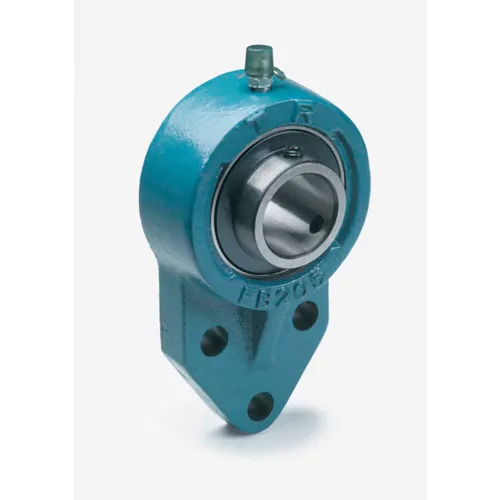

Flange Bearing, 3-Bolt, Ball, 3/4" Bore
- Brand: Tritan
- PartNumber: UCFB204-12A
- Model: UCFB204-12A
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TRITAN
- Label: TRITAN
Attributes
| Key | Value |
|---|
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NL. |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Cen. | 1.5000" |
| Bolt Size | 5/16 in |
| Bore Dia. | 0.75" |
| Bore Diameter | 3/4 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Current Stock | 42 |
| Dynamic Load Capacity | 2.877 lbf, 2827 Lbf |
| Features | UCFB Standard Duty, Wid. |
| Finish | Painted |
| Flange Thickness | 0.5 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Flange Bracket |
| Included Bearing | UC204-12 |
| International Shipping | No |
| Item | 3 Bolt Flange Bearing, . |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Ce. | 0.875 in |
| Mount Hole Center-to-Ce. | 1.5 in |
| Mount Hole Size | 5/16 in |
| Mounting Bolt Size | 1/4 in |
| Mpn | UCFB204-12A |
| Number of Mount Holes | 3 |
| Overall Height | 1.347 in, 34.2 mm |
| Overall Length | 4.25 in, 108 mm |
| Overall Width | 2.5 in, 63.5 mm |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | UCFB |
| Shaft Locking Type | Set Screw, Set Screws |
| SKU | ZO-G9563994 |
| Standards | ISO, AFBMA, AFBMA, ISO |
| Static Load Capacity | 1495 Lbf |
| Static Radial Load Capa. | 1,494 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Temp. Range | -4 to +248? F |
| UPC | 888569049070 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9563994 | 19.19 | 1 | 407 | | Tritan | 1.25 | 19.19 @ 1 |
 | simsupply.com | ZO-G9563994 | 28.11 | 1 | 42 | | Tritan | | 28.11 @ 1 |
| grainger.ca | WWG36UY58 | 32.21852834 | 1 | In Stock | | TRITAN | 1.25 | 32.21852834 @ 1 |
 | Global Industrial | WBB1873331 | 33.04 | 1 | In Stock | | Tritan | | 33.04 @ 1 |
 | Raptor Supplies | AH7JYG | 38.369799 | 1 | In Stock | | TRITAN | | 38.369799 @ 1 |
