EDGE INDUSTRIAL WEG ELECTRIC 01018OT3E215T-S

B07D96NDCK

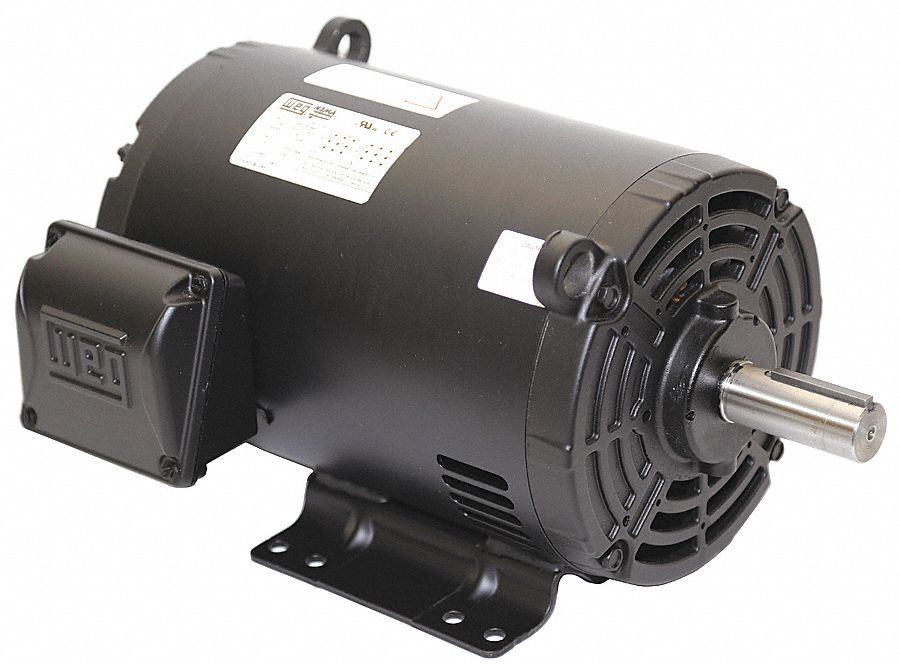

WEG INDUSTRIAL GRADE 10HP GENERAL PURPOSE, 3 PHASE, COMPRESSOR DUTY MOTOR, 230/460V, 1770RPM, 215T / 213T FRAME, 1 3/8" SHAFT DIAMETER, 24.8 FLA

WEG INDUSTRIAL GRADE 10HP GENERAL PURPOSE, 3 PHASE, COMPRESSOR DUTY MOTOR, 230/460V, 1770RPM, 215T / 213T FRAME, 1 3/8" SHAFT DIAMETER, 24.8 FLAzoom

Attributes

Key Value
Amperage Rating27.4 to 24.8/12.4 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BrandWEG
CC NumberCC029A
ClassificationThree Phase
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Current Stock25
Description:MOTOR 10HP 4P 213/5T WC.
Dimensions16.575 in L
Drive End Flange TypeStandard
Duty CycleContinuous
EnclosureODP, Open, IC01 - ODP
Enclosure TypeOpen Drip-Proof
Estimated Weight149.00
Family SeriesWEG Electric Motors
FL Amps12.4
FL Efficiency91.7
FlangesWithout Flanges
Frame215T, 213T, 213/5T
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps24.8/12.4
Full Load Amps @ 50Hz27.2/14.4, 29.8/14.9
Green Certification or .NEMA Premium(R) Rated
Green Environmental Att.Does not Contain Formal.
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
HP @ 50Hz10
Hz60
Ins. ClassF
Insulation ClassClass F
International ShippingNo
Inverter RatedYes
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number01018OT3E215T-S
Length Less Shaft13 3/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number01018OT3E215T-S
Manufacturers Warranty .3 yr
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
MFG Part #:01018OT3E215T-S
Model12630272
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignODP, Open Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFOOT, Rigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Mpn01018OT3E215T-S
Nameplate RPM1,770, 1800
NEMA DesignNone
NEMA Frame213/5T
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency91.7 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating10 hp
Overall Length16 9/16 in, 16.575
Part Number01018OT3E215T-S
Phase3, 3 ph, Three
Product TypeGeneral Purpose
Replaces01018OT3ECD215T
RotationCW/CCW
RPM1,800 RPM, 1700 - 1800,.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Shaft Size1-3/8 in Dia x 3-3/8 in.
SKUZO-G8515735
Speed1770 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsUL (E104590, CSA (70014.
SubCategoryMotors/Ac Motors
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7909158439034
Usable @ 200VNo
Usable @ 208VYes
Voltage230/460//190-220/380-41.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight129.330000, 121 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB019TUY5HU724.951In Stock2WEG724.95 @ 1
thumbzoomcompressor-source.com01018OT3E215T-S793.4411WEG793.44 @ 1
thumbzoomWalker Industrial01018OT3E215T-S826.51In Stock17WEG826.5 @ 1
kscdirect.comWEG 01018OT3E215T-S826.51In StockWEG ELECTRIC CORP826.5 @ 1
thumbzoommotorsandcontrol.com01018OT3E215T-S826.51In StockWEG Electric149.0826.5 @ 1
thumbzoomMRO Supply2520208870.291In StockWEG870.29 @ 1
thumbzoomDealers Electric01018OT3E215T-S905.521In StockWeg149.0905.52 @ 1
thumbzoomindustrialrefrigerationparts.com01018OT3E215T-S950.571In StockWEG129.33950.57 @ 1
thumbzoomZoroG8515735951.5120Weg141.0951.5 @ 1
thumbzoommidwestapplianceparts.com01018OT3E215T-S-WG-P954.5711Weg954.57 @ 1
thumbzoomGalco01018OT3E215T-S-WEG969.761In StockWEG Electric969.76 @ 1
grainger.caWWG33HP201004.26147191In StockWEG141.01004.2614719 @ 1
thumbzoomRadwell01018OT3E215T-S1050.01In StockWEG1050.0 @ 1
thumbzoomsimsupply.comZO-G85157351051.921In StockWeg1051.92 @ 1
thumbzoomPurvis01018OT3E215T-S1119.641In StockWEG1119.64 @ 1
Airline HydraulicsWEG 01018OT3E215T-S1136.081In StockWEG1136.08 @ 1
thumbzoomsustainablesupply.comC15551841324.811In StockWEG141.01324.81 @ 1
thumbzoomRaptor SuppliesAG3FDD1557.1836541In StockWEG1557.183654 @ 1
