WEG Electric Motor 05018ET3ER326TC-W22

B00BC8MCJQ

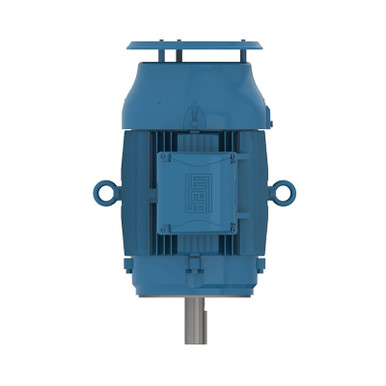

WEG Electric, 05018ET3ER326TC-W22, 50HP, 1800RPM, 3PH, 208V;230V;460V, 326TC Frame, C-Face Flange, Footless, TEFC, General Purpose Motor.

WEG Electric, 05018ET3ER326TC-W22, 50HP, 1800RPM, 3PH, 208V;230V;460V, 326TC Frame, C-Face Flange, Footless, TEFC, General Purpose Motor.zoom

Attributes

Key Value
Amperage Rating131 to 118/59.2 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 50HP 4P 326TC WFF2
Dimensions33.754 in L
Drive End Flange TypeC-Face
Efficiency %94.5 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight474.00
Family SeriesWEG Electric Motors
FL Amps59.2
FL Efficiency94.5
FlangesWithout
FRAME326TC
Frame326TC
Frame MaterialCast Iron
Frame RemarksRound Body, Footless
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps59.2
Gross Weight0 lbs
Hertz60
Horsepower50 hp
HP50
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number05018ET3ER326TC-W22
Kw37
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number05018ET3ER326TC-W22
MaterialCast Iron
MFG Part #:05018ET3ER326TC-W22
Model11625961
Motor Enclosure DesignTEFC
Motor Mounting TypeFootless
Motor Service Factor1.25
MountingFoot-mounted (F-1), Foo.
Mounting TypeC-Face Footless, Footle.
Nameplate RPM1800
NEMA Frame326TC
Net Weight0 lbs
Nominal Efficiency94.5
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Overall Length33.754
Part Number05018ET3ER326TC-W22
Phase3, 3 ph
Product TypeGeneral Purpose
Replaces05018EP3ER326TC-W22
RotationCW/CCW
RPM1,800 RPM, 1800
Service Factor1.25
Speed1775 rpm
Speed (RPM)1800
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7891327569430
VOLTAGE230/460
Voltage575 V, 208-230/460, 208.
Voltage (AC)208 VAC
Volts208/230/460
WEIGHT648

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com05018ET3ER326TC-W222914.01In StockWEG601.02914.0 @ 1
thumbzoomWalker Industrial05018ET3ER326TC-W224033.51In Stock17WEG4033.5 @ 1
thumbzoommotorsandcontrol.com05018ET3ER326TC-W224033.51In StockWEG Electric474.04033.5 @ 1
kscdirect.comWEG 05018ET3ER326TC-W224130.161In StockWEG ELECTRIC CORP4130.16 @ 1
thumbzoomGalco05018ET3ER326TC-W22-WEG4417.131In StockWEG Electric4417.13 @ 1
thumbzoomindustrialrefrigerationparts.com05018ET3ER326TC-W224473.271In StockWEG4473.27 @ 1
thumbzoomZoroG0034352264525.761In Stock11Weg648.04525.76 @ 1
thumbzoomRadwell05018ET3ER326TC-W224850.01In StockWEG4850.0 @ 1
thumbzoomDealers Electric05018ET3ER326TC-W224910.191In StockWeg474.04910.19 @ 1
thumbzoomPurvis05018ET3ER326TC-W224915.491In StockWEG4915.49 @ 1
thumbzoomvfds.com05018ET3ER326TC-W225378.01In StockWEG5378.0 @ 1
Airline HydraulicsWEG 05018ET3ER326TC-W225544.331In StockWEG5544.33 @ 1
