GRAINGER APPROVED CHK BRS 610-6F6M-F

mpnCHK BRS 610-6F6M-F
brandname: Zoro Select
manufacturername: Zoro Select

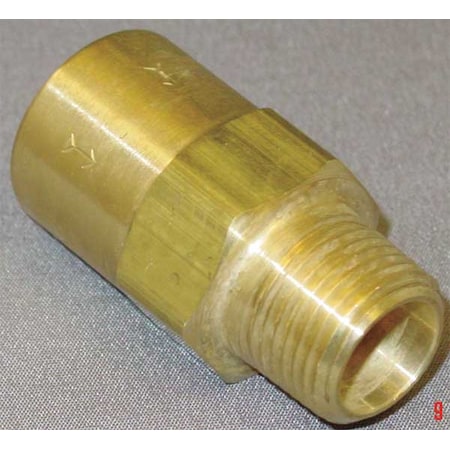

Piston Spring Check Valve, Brass, 3/8 In.

Piston Spring Check Valve, Brass, 3/8 In.

zoom

Brand: GRAINGER APPROVED
PartNumber: CHK BRS 610-6F6M-F
PackageQuantity: 1
Manufacturer: GRAINGER APPROVED
Label: GRAINGER APPROVED

Attributes

Key	Value
Body Material	Brass
Cap to Inlet Center	2-29/32"
Connection Type	FNPT x MNPT
Cracking Pressure - Che.	1.000 psi
Flow Design	Single
Hex Size	7/8"
Item	Piston Spring Check Val.
Length	1.94"
Length (Straight Wirewa.	1 11/16 in
Material of Construction	Brass
Max. Pressure	500 psi
Max. Temp.	375 Degrees F
Max. Temp. - Valves	180 Degrees F
Max. Water Pressure	500 psi
Mounting Orientation - .	Horizontal, Vertical
Mounting Position	Vertical or Horizontal
Overall Height	7/8"
Pipe or Tube Size	3/8 in
Pipe or Tube Size - Che.	3/8"
Pipe Size	3/8"
Seat Material	Brass
Size	3/8"
Spring Material - Check.	Stainless Steel
Width	0.88"

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0825124	24.11	1	205		Zoro Select	0.86	24.11 @ 1
