Amphenol 97-3102A-14S-9S

B005T927YY

Amphenol Industrial 97-3102A-14S-9S Circular Connector Socket, Threaded Coupling, Solder Termination, Box Receptacle, Solid Backshell, 14S-9 Insert Arrangement, 14S Shell Size, 2 Contacts

Amphenol Industrial 97-3102A-14S-9S Circular Connector Socket, Threaded Coupling, Solder Termination, Box Receptacle, Solid Backshell, 14S-9 Insert Arrangement, 14S Shell Size, 2 Contactszoom

Attributes

Key Value
Agency ApprovalsUL ; CSA
Amperage Rating13A
AngleStraight
ApplicationCommercial
ClassA
Connector StyleReceptacle
Connector TypeCircular
Contact Configuration2#16
Contact MaterialBrass or Copper Alloy
Contact Mating Life100
Contact PlatingSilver
Contact Size2#16S
Contact StyleSocket
Contact TypeSocket
Contacts SuppliedYes
Contacts, # of2
Current Rating13 A
Dielectric MaterialDiallyl Phthalate
Export ClassEAR / EAR99
Family Name97 Series Connector Fam.
GenderPanel Socket
Housing FinishOlive Drab Cadmium
Housing MaterialAluminum Alloy
Housing TypeMetal
Insert Arrangement14S-9
Insert MaterialDiallyl Phthalate
Insert Rotation/KeyingNormal
IP RatingIP67
Keyed PositionN (Normal)
Mating TypeFemale
MIL TypeSAE AS50151
Mounting Hole Diameter0.12 "
Mounting TypeChassis Mount, Box - Fr.
Number of Contacts2
Operating Temperature &.+257 (+125) for 60 hour.
Operating Voltage AC V .500
Operating Voltage DC700
PackagingBulk
Primary TypeMIL/Aero
RoHSNo
Series97 Series
Service RatingA
Shell ColorOlive Drab
Shell MaterialAluminum Alloy
Shell PlatingOlive Drab Chromate ove.
Shell Size14S
ShieldingYes
SpecificationMIL-DTL-5015
Strain ReliefSolid
TerminationSolder
Termination MethodSolder
Type5015 Commercial
Voltage Rating500 ; 700 V
Weight (g)23.00000
Weight (lbs)0.05070
Wire Size16

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com97-3102A-14S-9S10.46168Amphenol IO10.46 @ 1
us.rs-online.com7010818310.721446Amphenol Industrial10.72 @ 1
Electronic Connector Co97-3102A-14S-9S11.331In StockAMPHENOL INDUSTRIAL11.33 @ 1
PEI-Genesis97-3102A14S-9S13.83176Amphenol0.050713.83 @ 1
AmazonTPB00DECYMYQ14.461In Stock2AMPHENOL INDUSTRIAL14.46 @ 1
AmazonUNKB00DECYMYQ14.461In StockAMPHENOL INDUSTRIAL14.46 @ 1
HotendaH114053620.771In StockAmphenol Industrial20.77 @ 1
Newark97J487125.952In StockAMPHENOL INDUSTRIAL25.95 @ 1

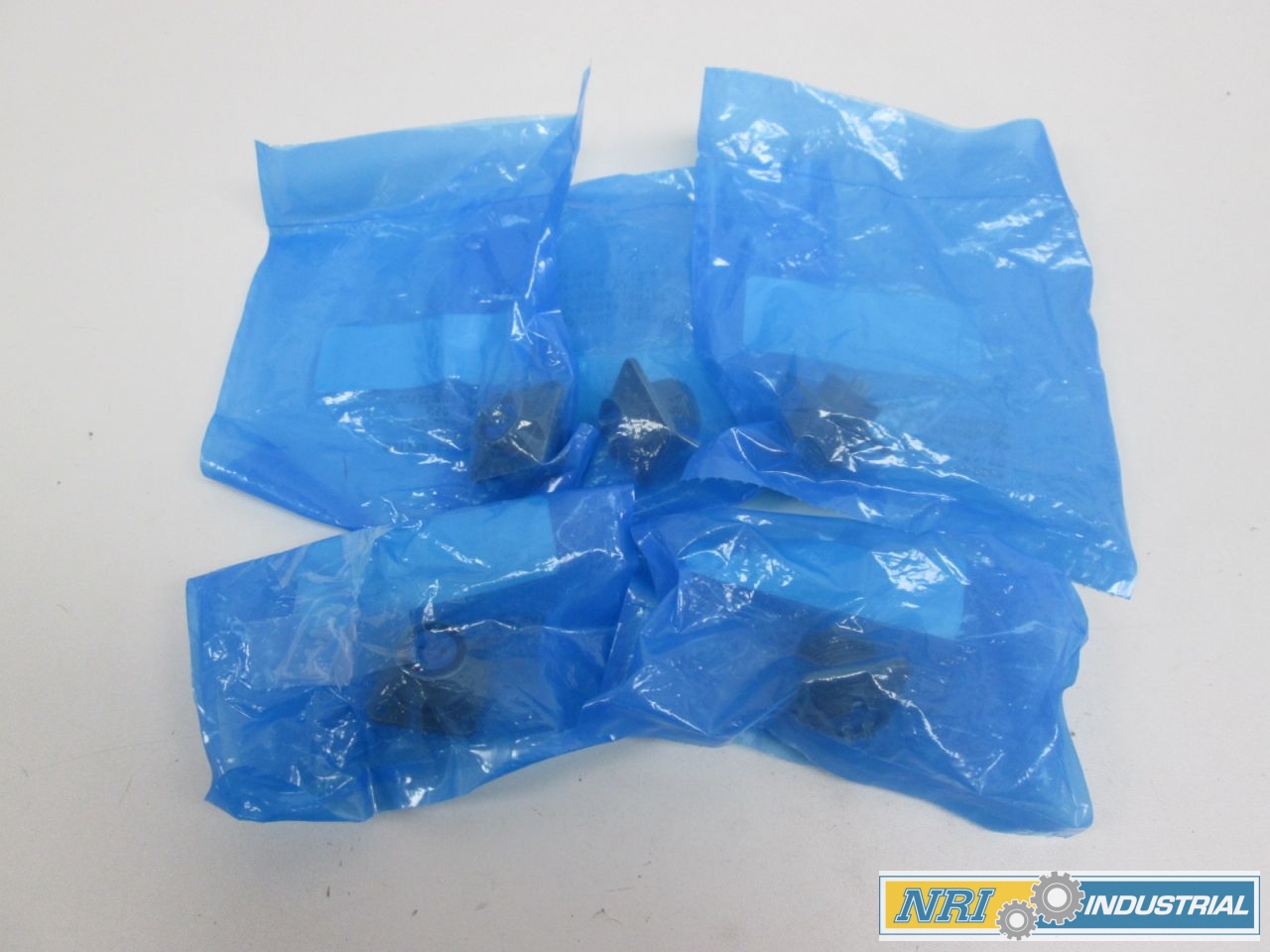

thumbzoomNRI IndustrialD26337140.611In StockAMPHENOL40.61 @ 1
