Amphenol PT02SE-12-10S

mpnPT02SE-12-10S
brandname: Amphenol Industrial Operations
manufacturername: Amphenol Industrial Operations

Amphenol Industrial PT02SE-12-10S Circular Connector Socket, Environmental Resisting, Bayonet Coupling, Crimp Termination, Box Mounting Receptacle, 12-10 Insert Arrangement, 12 Shell Size, 10 Contacts

Brand: Amphenol
PartNumber: PT02SE-12-10S
Size: 12-10 Insert Arrangement
PackageQuantity: 1
Binding: Misc.
Manufacturer: Amphenol
Label: Amphenol

Attributes

Key	Value
Alternate Part No.	654-PT02SE1210S
Amperage Rating	13A
Applications	Aerospace, Industrial, .
Backshell Material, Pla.	Aluminum, Olive Drab Ca.
Base Product Number	PT02SE
Brand	Amphenol Industrial
Cable Opening	-
Category	Connectors, Interconnec.
Color	Olive Drab
Connector Style	Receptacle
Connector Type	Receptacle, Female Sock.
Contact Finish - Mating	Gold
Contact Finish Thicknes.	-
Contact Gender	Socket (Female)
Contact Material	Copper Alloy
Contact Mating Life	500
Contact Plating	Gold
Contact Size	10#20
Contact Style	Socket
Contacts Supplied	Yes
Contacts, # of	10
Crimp Wire Gauge	24,22,20
Current Rating	7.5 A
Current Rating (Amps)	7.5A
Description	CONN RCPT FMALE 10POS G.
Detailed Description	10 Position Circular Co.
Digi-Key Part Number	PT02SE12-10S-ND
Endbell Type	Grommet Nut
Export Class	EAR / EAR99
Fastening Type	Bayonet Lock
Features	-
Grommet & Seals Mat.	Neoprene
Ingress Protection	Environment Sealed

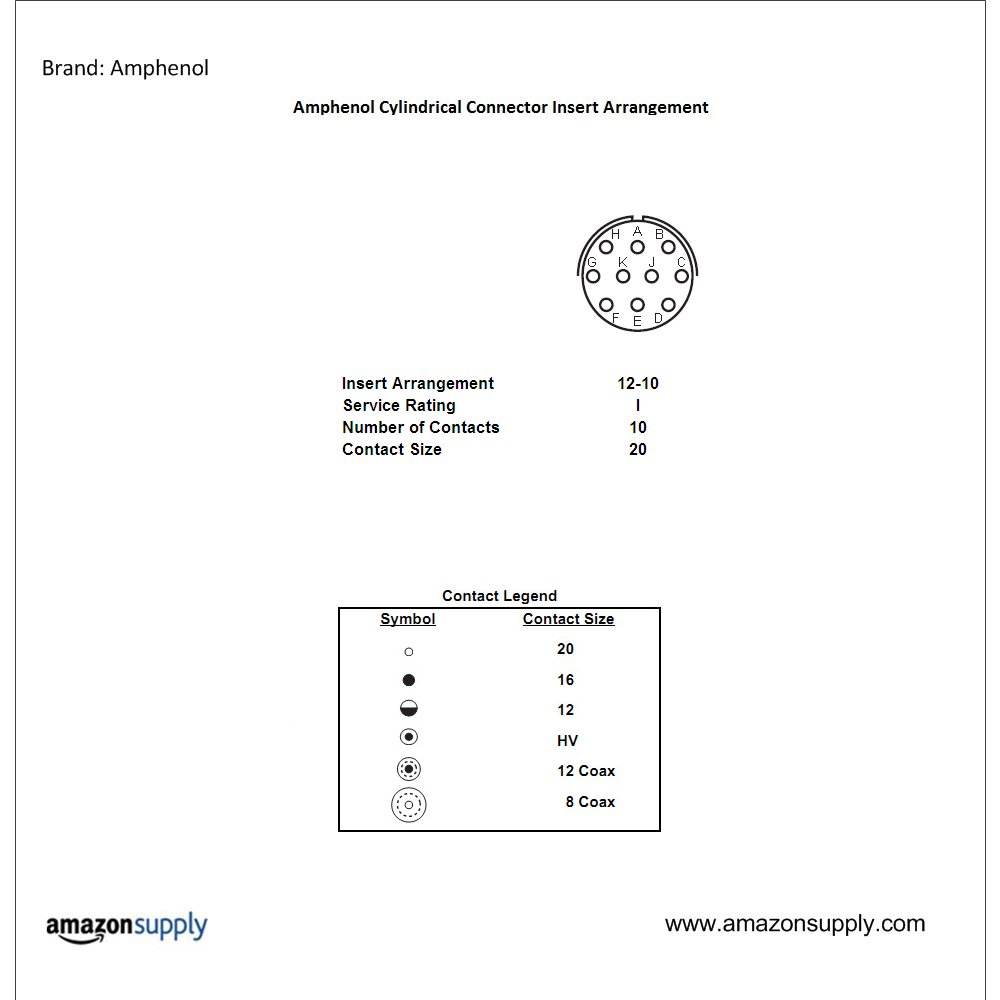

Insert Arrangement	12-10
Insert Material	Neoprene
Insert Rotation/Keying	Normal
Manufacturer	Amphenol Industrial Ope.
Manufacturer Part No.	PT02SE-12-10S
Manufacturer Product Nu.	PT02SE-12-10S
Manufacturer Standard L.	18 Weeks
Material Flammability R.	-
Mating Style	Bayonet
Mfr	Amphenol Industrial Ope.
MIL Type	MIL-DTL-26482
Mounting Angle	Straight
Mounting Feature	Flange
Mounting Style	Panel
Mounting Type	Panel Mount, Box - Fron.
Number of Positions	10
Operating Temperature	-55?C ~ 125?C
Operating Temperature &.	-67 to +257 (-55 to +12.
Operating Voltage AC V .	600
Operating Voltage DC	850
Orientation	Straight, N (Normal)
Package	Bulk
Primary Material	Metal
Primary Type	MIL/Aero
Product Category	Circular MIL Spec Conne.
Product Status	Active
Product Type	Receptacles
RoHS	No
Sealing	Sealed
Series	MIL-DTL-26482 Series I,.
Service Rating	I
Shell Color	Olive Drab
Shell Finish	Olive Drab Chromate ove.
Shell Material	Aluminum Alloy, Aluminum
Shell Plating	Chromate over Cadmium, .
Shell Size	12
Shell Size - Insert	12-10
Shell Size, MIL	-
Shell Style	Box Mount
Shielding	Yes, Unshielded
Specification	MIL-DTL-26482
Termination	Crimp
Termination Method	Crimp
Termination Style	Crimp
Tradename	26482
Type	26482 Commercial
Voltage Rating	-, 600 V
Weight (g)	Unknown
Weight (lbs)	Unknown
Wire Gauge	20-24
