APOLLO 82LF20401

B08YLS3W12

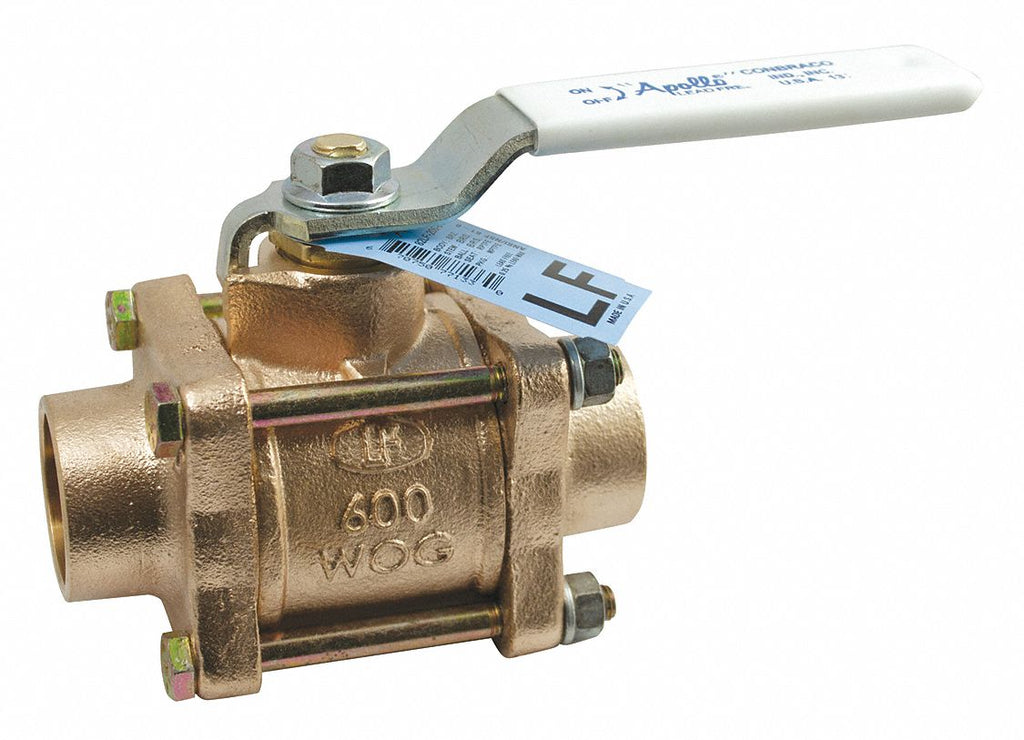

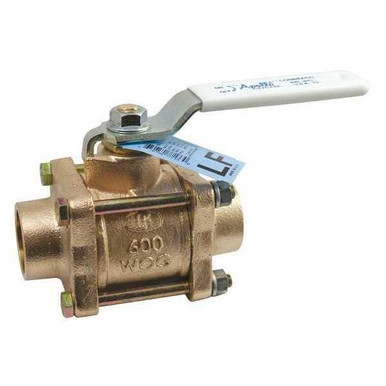

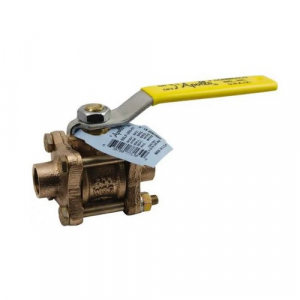

APOLLO LF Bronze Ball Valve,Sweat,3/4 in 82LF20401

APOLLO LF Bronze Ball Valve,Sweat,3/4 in 82LF20401zoom

Attributes

Key Value
Actuator TypeLever Operated
ANSI SpecificationsANSI 372, ANSI 61-8 Ann.
ApplicationCold Working Pressure, .
ASTM SpecificationsASTM B-584 C89836
Ball MaterialChrome Plated Brass, Le.
Ball Valve Basic Body M.Bronze
Ball Valve Product GroupManual
Body MaterialLead-Free Bronze, Bronze
Body Seal MaterialPTFE
Body StyleInline
BrandApollo Valves
Clean BaggedNo
Collection82LF-200 Series
ComplianceISO 9001
Connection TypeSweat x Sweat
Country of Origin (subj.United States
CSA CertifiedCSA B51
Current Stock18
Description:BV,3/4"SLDR,3PC,FP,LF B.
Domestic/ImportDomestic
End Connection 1Solder
End Connection 2Solder
End ConnectionsFemale NPT, Solder
End StyleSolder
FeaturesWhite Grip, and Blue Ha.
FM ApprovedNo
General Connection TypeSweat
Handle MaterialZinc Plated Steel, Zinc.
Handle TypeLever
IAPMO ListedNo
Inlet to Outlet Length3.43 in
International ShippingNo
ISO SpecificationsISO 9001:2008
ItemBall Valve
Lead Law CompliantYes
Length3-43/100 in
ManufacturerApollo Conbraco Industr.
MaterialLead Free Bronze, Bronze
Max. Pressure600 psi CWP
Max. Steam Pressure150 PSI WSP
Maximum Temperature400
MFG Part #:82LF20401
Mpn82LF20401
MSS SpecificationsMSS SP-110
Nominal Size3/4 in
NSF CertifiedYes
NSF SpecificationsNSF 372, NSF 61-8 Annex.
Overall Length3.43 in, 3.43"
Pipe Size3/4", 3/4 in
Pipe Size (Inch)3/4
PortFull
Port TypeFull
Pressure Class600#
Pressure Rating600 psi CWP
Product TypeBall Valve
Prop 65WARNING: Cancer and Rep.
Seat MaterialRPTFE, Reinforced PTFE
Series82LF-200
SKUZO-G5152987
Softgoods MaterialMPTFE
Standard Pack:Order QTY must be in mu.
StandardsNSF 61-8
Steam Pressure Rating (.150
Stem MaterialC27450LF Brass
Stem TypeBlowout Proof
Style3 piece
SubCategoryPlumbing
Supplier:Apollo Conbraco Industr.
Temp. Range-20 Degrees to 450 Deg.
Temperature Rating400 deg F
Top to Inlet Center2.18 in
Trim MaterialBrass Stem and MPTFE Se.
Tube Size3/4", 3/4 in
TypeFull Port, 3-Piece
UL ListedNo
UPC670750771316
UPC:670750771316
Valve Basic Body Materi.Bronze
Valve Body Style3 piece
Valve Bonnet TypeWelded
Valve OperatorLever Handle
Valve Port OpeningFull Port
Valve Seat MaterialRPTFE
Valve Size3/4 in
Valve Structure3-Piece
Valve TypeBall Valve
Weight2.3
Width1-49/50 in
WOG Rating (psi)600

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG515298766.591In StockApollo Valves1.9566.59 @ 1
grainger.caWWG40D95576.253178361In StockAPOLLO1.9576.25317836 @ 1
thumbzoomsupply.com82LF2040180.13164Apollo80.13 @ 1
thumbzoomsimsupply.comZO-G515298791.42118Apollo Valves91.42 @ 1
AmazonTPB00FG7BD4Y91.971In Stock2APOLLO91.97 @ 1
ferguson.com4283879102.951In StockApollo Valves102.95 @ 1
kscdirect.comAPO 82LF20401103.661In StockApollo Conbraco Industries103.66 @ 1
thumbzoomsustainablesupply.comC2862093113.631In StockApollo Valves1.95113.63 @ 1
thumbzoomRaptor SuppliesAD3MDE140.12686351In StockAPOLLO140.1268635 @ 1
thumbzoomprimebuy.com82LF20401237.31In StockApollo237.3 @ 1
