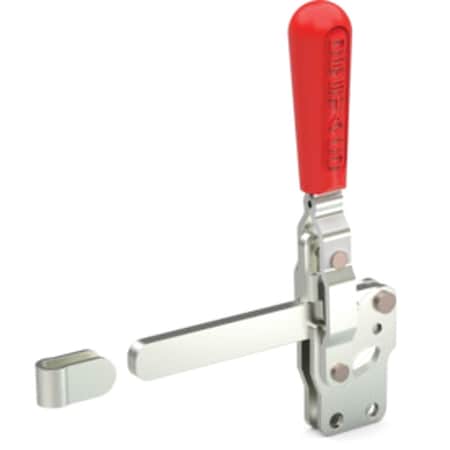

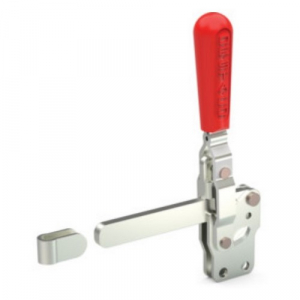

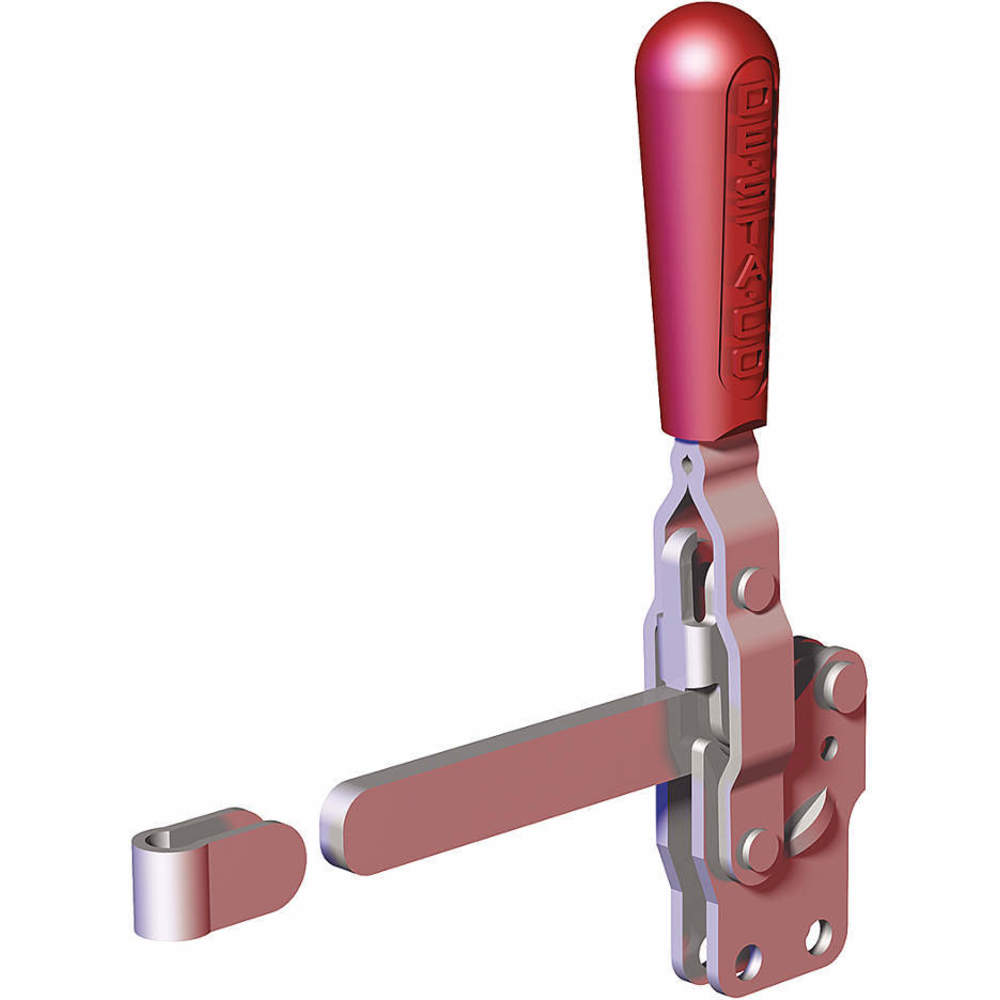

DESTACO 207-LB Series 207 Vertical Hold Down Clamp, Straight Base, Long Solid Bar
- Brand: De-Sta-Co
- PartNumber: 207-LB
- Model: 207-LB
- Color: Black
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: DESTACO Europe GmbH
- Label: DESTACO Europe GmbH
Attributes
| Key | Value |
|---|
| Accommodates Workpiece . | No |
| Application | Assembly:Checking Fixtu. |
| Application - Assembly | Excellent/High |
| Application - Checking . | Excellent/High |
| Application - Closures | Excellent/High |
| Application - Food Proc. | Fair/Medium |
| Application - Machining | Poor/Low |
| Application - Welding | Poor/Low |
| Application - Wood-Work. | Excellent/High |
| Arm Length | 88.4, 3.48, 3.48 in |
| Arm Movement | 99 |
| Arm Type | Solid |
| Available | Yes |
| Bar Opening Angle | 99 Degrees |
| Bar Thickness (Decimal . | 0.2400 |
| Bar Type | Long Solid, Long Solid . |
| Base Length | 1.38, 35.1 |
| Base Mounting Centers (. | 0.75 |
| Base Mounting Style | Straight |
| Base Type | Straight |
| Base Width | 6.1, .24 |
| Body Material | Steel |
| Brand | DESTACO, De-Sta-Co |
| Clamp Arm Length (in) | 3.480 |
| Clamp Arm Style | Long Solid Bar |
| Clamp Bar Opening (+10?. | 99 |
| Clamping Orientation | Vertical |
| Current Stock | 9 |
| Duty Cycle | 2 |
| Features | Does Not Come with Spin. |
| Handle | Vertical |
| Handle Movement | 57 |
| Handle Opening (+10?) | 57 |
| Handle Type | Vertical |
| Height Under Arm | 1.56 in, 1.550, 39.4 |
| Height Under Arm (In.) | 1.55 |
| Height Under Bar | 1-1/2", 1.55 in |
| Height Under Clamp Arm . | 1.560 |
| Holding Capacity | 2224.1, 500, 500 lbs., . |
| Holding Capacity (Lb.) | 500 |
| Includes | Bolt Retainer |
| International Shipping | No |
| Item | Manual Toggle Clamp, Ho. |
| Item Weight | 0.80 lbs per EA |
| Lead Time | Expected to ship in 1-2. |
| Max Arm Length | Greater than 3" |
| Max Height Under Arm | 1.51 - 2" |
| Maximum Holding Capacit. | 500 |
| Model Number | 207-LB |
| Mounting Hole Diameter | 7.1, 0.280 |
| Mounting Hole Spacing A. | 0.750, 19.1 |
| Mounting Hole Spacing A. | 12.2, 0.480 |
| Mpn | 207-LB |
| Overall Depth | 7.48 in |
| Overall Height | 190, 7.48, 7.4800 in, 7. |
| Overall Height (In.) | 7.48 |
| Overall Length | 4.8600 in, 4.86, 5.52 i. |
| Overall Length (In.) | 4.86 |
| Overall Width | 1.73 in |
| Product Family | Manual Clamping |
| Product Function | Clamping |
| Product Group | Hold Down Clamps |
| Product Series Descript. | Vertical Clamp |
| Product Type | Standard |
| Service Environment | Normal |
| SKU | ZO-G8917307 |
| Spindle | Not Supplied |
| Spindle Assembly | No |
| Spindle Thread Size | M8,5/16-18 |
| Standard Material | Steel |
| SubCategory | Machining |
| Thread Size | M8 |
| Toggle Lock Plus | No |
| Type | Vertical Hold Down |
| Weight (lb) | 0.75 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G8917307 | 20.99 | 1 | 39 | | De-Sta-Co | 0.85 | 20.99 @ 1 |
 | kinequip.com | 207-LB | 22.7 | 1 | 16 | | Destaco | | 22.7 @ 1 |
 | freertool.com | DE-STA-CO-207-LB | 24.03 | 1 | In Stock | | DESTACO | 0.75 | 24.03 @ 1 |
| grainger.ca | GUS33TV76 | 27.3265959 | 1 | In Stock | | DE-STA-CO | 0.85 | 27.3265959 @ 1 |
 | KBC Tools | 1-910-52086 | 27.6408 | 1 | 3 | | DESTACO | 0.8 | 27.6408 @ 1 |
| reidsupply.com | TC-207-LB | 29.06 | 1 | 242 | | DESTACO | | 29.06 @ 1 |
 | simsupply.com | ZO-G8917307 | 32.07 | 1 | 9 | | De-Sta-Co | | 32.07 @ 1 |
 | Raptor Supplies | AG3QYK | 34.1350425 | 1 | In Stock | | DESTACO | | 34.1350425 @ 1 |
 | primebuy.com | 207-LB | 41.05 | 1 | In Stock | | Destaco | | 41.05 @ 1 |
 | National Supply Network | 44003275 | 47.06 | 1 | In Stock | | De-Sta-Co | | 47.06 @ 1 |
