EATON MOELLER XTCE007B10T

B0078S73HK

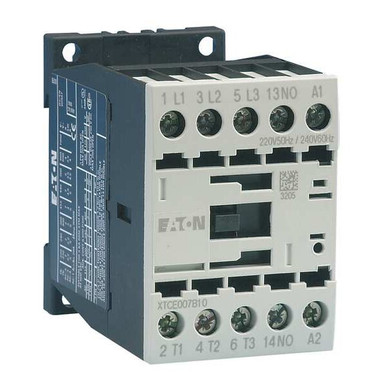

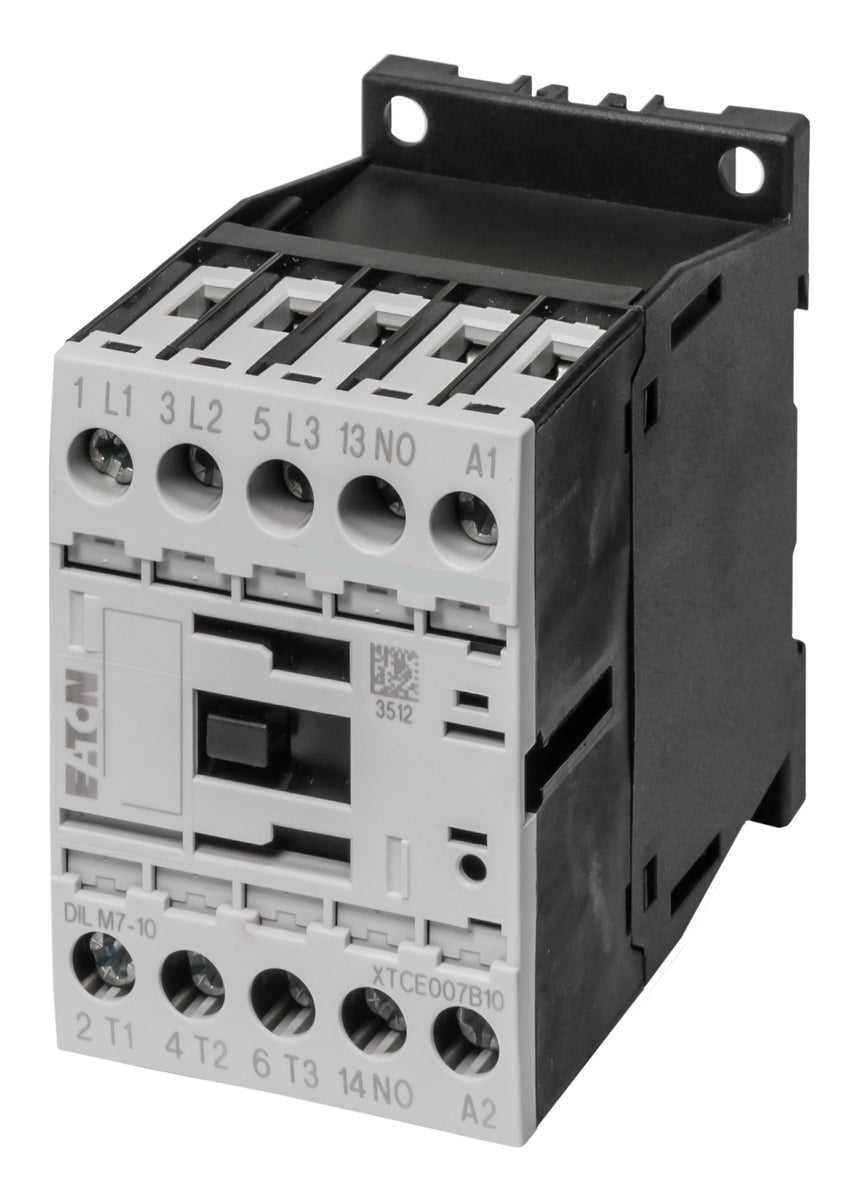

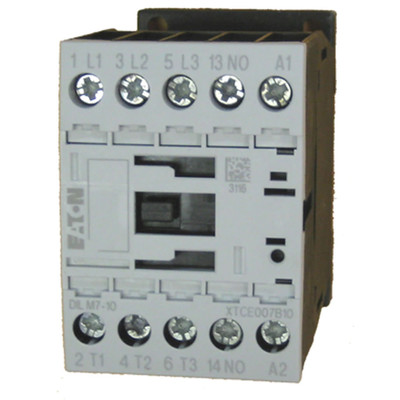

IEC Contactor, NonRev, 24VAC, 7A, 1NO, 3P

IEC Contactor, NonRev, 24VAC, 7A, 1NO, 3Pzoom

Attributes

Key Value
ActionNon-Reversing
Alternate Mfr Part Numb.XTA291012
Amps7
ApprovalsUL Listed ; CSA Certifi.
Aux. Contact Configurat.1NO
Auxiliary Contact1 NO
Auxiliary Contact Form1NO
BrandEaton
Catalog NumberXTCE007B10T
Certification ListingsUL, CSA, IEC 60947, EN .
Coil Power24V 50/60 Hz
Coil Voltage24VAC
Coil Volts24 V AC
Contact Configuration1NO
Contact Current Rating7 A
Control Voltage24 V
Country of Origin (subj.Romania
Current Stock22
Depth2.95 in, 0.079 in
Dimensions45 x 75 x 68 mm
Enclosure NEMA RatingNo Enclosure
Frame / Series / Class .Frame B
Full Load Amps-Inductive7 A
Full Load Amps-Resistive22 A
GTIN04015082765545
Height1.77 in
Horsepower Rating5 hp
HP @ 1 Phase - 120V1/4 hp
HP @ 1 Phase - 230V1
HP @ 1 Phase - 240V1 hp
HP @ 230V (1ph)1
HP @ 230V (3ph)1.5
HP @ 3 Phase - 208V1 1/2 hp
HP @ 3 Phase - 240V2 hp
HP @ 3 Phase - 480V3 hp
HP @ 3 Phase - 575V5 hp
HP @ 460V (3ph)3
Hz50/60
International ShippingNo
ItemIEC Magnetic Contactor
Lead TimeExpected to ship in 1-2.
Length1.771 in
ManufacturerEaton Cutler Hammer, Ea.
Minimum Operating Tempe.25 C (-13 F)
Mounting TypeDIN Rail Mount ; Panel .
MpnXTCE007B10T
N/O Contacts1
Number of Poles3
Part NumberXTCE007B10T
Poles3
Poles (Closed)3
Power Rating2.2 kW
Primary TypeContactor
ReversingNo
SeriesXT Series
SKUZO-G2545417
Special FeaturesLow Power Consumption A.
StandardsUL/CE/CSA/CCC/ATEX/IEC .
SubCategoryElectrical
Temperature Operating R.-25 to 50 C
Terminal TypeScrew
TerminalsScrew terminals
TypeIEC Contactor, Contacto.
UPC786685363400
UPC Code4015082765545
Volts AC Control24
Width0 in, 1.77 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotorsandcontrol.comXTCE007B10T41.771In StockEaton Cutler Hammer41.77 @ 1
thumbzoomkentstore.comXTCE007B10T45.22111Eaton/Cutler Hammer45.22 @ 1
thumbzoomcontrolparts.comXTCE007B10T62.81In StockEaton62.8 @ 1
thumbzoomRadwellXTCE007B10T70.013EATON CORPORATION CUTLER HAMMER70.0 @ 1
thumbzoomWalker IndustrialXTCE007B10T70.691In StockEaton Cutler-Hammer70.69 @ 1
thumbzoomZoroG254541779.791In StockEaton0.5479.79 @ 1
thumbzoomsustainablesupply.comC288306799.471In StockEaton0.5499.47 @ 1
thumbzoomsimsupply.comZO-G2545417100.28122Eaton100.28 @ 1
thumbzoomPlatt.com0651556101.441In StockEaton101.44 @ 1
us.rs-online.com70056462118.5614Eaton - Cutler Hammer118.56 @ 1
thumbzoomcappusa.com2414526119.711In StockEaton119.71 @ 1
thumbzoomNewark60AC3361130.831In StockEATON CUTLER HAMMER130.83 @ 1
crescentelectric.com63646142.811In StockEaton142.81 @ 1
