GRAINGER APPROVED 2G035

B09M75W4KZ

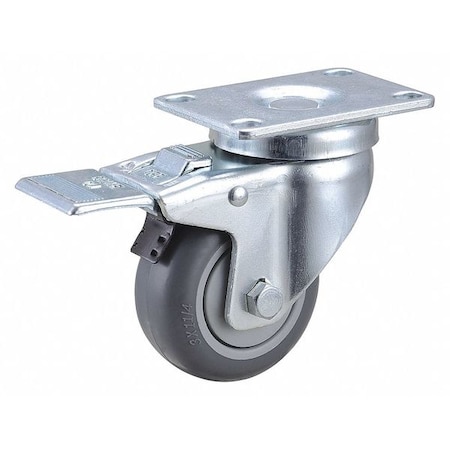

Swivel, 210 lb, Standard Plate Caster, Thermoplastic Rubber,3 in Wheel Dia. GIS-2G035

Swivel, 210 lb, Standard Plate Caster, Thermoplastic Rubber,3 in Wheel Dia. GIS-2G035zoom

Attributes

Key Value
ApplicationFood Service, Hospital .
Caster Brake IncludedYes
Caster Brake TypeTotal Lock Brake
Caster Core MaterialPolyolefin
Caster Frame MaterialSteel
Caster Load Rating RangeLight-Duty
Caster Max. Temp.175 Degrees F
Caster Min. Temp.-40 Degrees F
Caster Plate Hole Patte.C
Caster Plate Size2-1/2" x 3-5/8"
Caster Plate Thickness5/32"
Caster Product GroupSwivel Caster with Tota.
Caster RacewayDouble Ball
Caster Stem TypeNo Stem/Plate Included
Caster Sub-TypeSwivel
Caster Swivel Lock TypeTotal Lock
Caster Temp. Range-40 Degrees to 175 Deg.
Caster Temp. Range Avai.Yes
Caster Wheel BearingsBall
Caster Wheel ShapeCrown
Caster Wheel/Tread Mate.Thermoplastic Rubber
Core ColorGray
Core ColourGray
Country of Origin (subj.China
Durometer88 Shore A
Extended LeadNo
Frame FinishZinc Plated
Frame MaterialSteel
IncludesThread guards
Includes Thread GuardsYes
Inside Bolt Hole Spacing1-3/4 in x 2-13/16 in
ItemStandard Plate Caster
Load Rating210 lb
Load Rating Range0 to 299 lb
Mounting Bolt Dia.5/16 in
Mounting Height4 1/4 in
Mounting Plate Bolt Hol.C
Mounting Plate Size2 1/2 in x 3 5/8 in
Non-MarkingYes
Number of Mounting Holes4
Number of Wheels1
Outside Bolt Hole Spaci.1-3/4 in x 3-1/16 in
Overall Height4-1/4"
Plate Caster Bolt Hole .C
Plate Size2-1/2" x 3-5/8"
Plate Thickness5/32"
StandardsANSI ICWM
Stem Dia.No Stem
Swivel ConstructionKingpin
Swivel Lock TypeTotal Lock
Swivel Raceway TypeDouble Ball
Thread GuardsYes
Tread ShapeStandard
Wheel Bearing TypePrecision Ball
Wheel ColorGray
Wheel Core MaterialPlastic
Wheel Dia.3 in
Wheel Width1 1/4 in
Wheel/Tread ColorGray
Wheel/Tread ColourGray
Wheel/Tread Hardness88 Shore A
Wheel/Tread Hardness Ra.Firm
Wheel/Tread MaterialThermoplastic Rubber

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG2G03511.968540941In StockGRAINGER APPROVED1.711.96854094 @ 1
thumbzoomZoroG266563412.751198Zoro Select1.712.75 @ 1
