- mpn289384
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

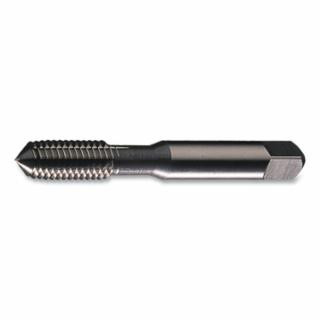

Greenfield Threading 289384 GT/VTD No.10-24 HS G H6 4L PL CNC Form Tap
- Brand: Vermont Tap & Die
- PartNumber: 289384
- Model: 289384
- Size: #10 - 24 Unc
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 4.42mm, 4.42 mm |
| 65% Thread Drill Size | 11/64 in |
| 75% Thread Drill Size | 4.27 mm, 4.27mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Class of Fit | 2B-3B |
| Diameter | 0.1900" |
| Extended Neck | Yes |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Item | Machine Tap, Thread For. |
| Length of Cut | 2 in |
| List Number | FTGP |
| Material | HSS, High-Speed Steel |
| Material Grade - Machin. | FTGP |
| Measurement System | Imperial |
| Number of Flutes | 0 |
| Number of Pieces | 1 |
| Overall Length | 2 3/8 in, 2.3750", 2.37. |
| Overall Length (Metric) | 60.32mm |
| Package Quantity | 6 per case |
| Pitch Diameter Limit | H6 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N, P |
| Product Type | Plug Machine Tap |
| Series | FTGP |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.194" |
| Shank End | Square |
| Shank Length | 1 1/2 in |
| Shank Size | 0.1940", 0.194 in |
| Shank Size (Metric) | 4.93mm |
| Shank Square Length | 0.2500" |
| Shank Square Length (Me. | 6.35mm |
| Shank Square Width | 0.1520" |
| Shank Square Width (Met. | 3.86mm |
| SKU | 289384 |
| Spiral Direction | Neutral |
| Square Size | 0.1520 in |
| Standards | USCTI 302A |
| Style | FTGP |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Blank Construction | USCTI Table 302A |
| Tap Chamfer | Plug |
| Tap Construction | Plug, Standard |
| Tap Dimension Type | Inch |
| Tap Finish | Bright, Bright (Uncoate. |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Interrupted Thread | No |
| Tap Limit | H6 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.875 in, 0.8750" |
| Tap Size | #10 |
| Tap Spiral Point | No |
| Tap Style | Thread Forming, Thread . |
| Tap Thread Size | #10-24 |
| Tap Thread Type | UNC |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread Creation | Thread Forming |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 0.5000", 1/2", 0.5 in |
| Thread Length (Metric) | 12.70mm |
| Thread Limit | H6 |
| Thread Limit / Class of. | H6 / 2B-3B |
| Thread Pitch | 24 |
| Thread Size | #10, #10-24, #10-24 UNC |
| Thread Standard | UNC |
| Thread Tolerance | 2B-3B |
| Threads per Inch | 24 |
| Tool Size | #10-24 UNC |
| UPC | 6.62355E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4355714 | 13.65 | 1 | In Stock | | Greenfield Threading | | 13.65 @ 1 |
 | rshughes.com | 662355-17019 | 14.32 | 6 | In Stock | | Greenfield Industries | | 14.32 @ 6 |
 | usmegastore.com | 289384 | 14.78 | 1 | In Stock | | Greenfield Threading | | 14.78 @ 1 |
 | Megadepot | 289384 | 14.91 | 1 | In Stock | | Greenfield Threading | | 14.91 @ 1 |
 | heavydutydepot.com | 289384 | 14.91 | 7 | In Stock | | Greenfield Threading | | 14.91 @ 7 |
| Grainger | 15J977 | 16.6 | 1 | In Stock | 15 | GREENFIELD THREADING | | 16.6 @ 1 |
| grainger.ca | GNF289384 | 21.50563178 | 1 | In Stock | | GREENFIELD THREADING | 1.18 | 21.50563178 @ 1 |
 | imsbolt.com | 289384 | 24.8 | 1 | In Stock | | GREENFIELD THREADING | | 24.8 @ 1 |
