HAMMOND 166L25B

B011P1NKKE

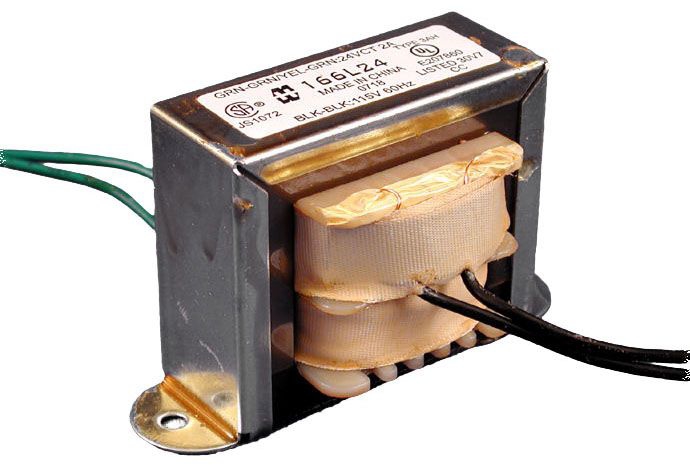

Hammond Filament and Low Voltage Rectifier/Open Transformer - 166L25B

Hammond Filament and Low Voltage Rectifier/Open Transformer - 166L25Bzoom

Attributes

Key Value
1Case Quantity
115 VAC,50/60HZFirst Voltage
166L25BStock Code
2.04 lbWeight (lb.)
2.25''Width (in)
2.63''Height (in)
25.2 C.T.Secondary Voltage
4.03''Length (in)
50.4VAPower Rating (VA)
62398002463UPC
ApprovalsCSA, UL
Base Product Number166L25
CategoryTransformers
Center TapYes
ConfigurationSingle Primary/Single S.
CSA,UL,ROHSUL Listed
Current - Output (Max)2A
DescriptionPWR XFMR LAMINATED 50.4.
Description:POWER TX 115V - 25.2VCT.
Digi-Key Part Number166L25B-ND
Family SeriesHammond Manufacturing T.
For additional options .Notes
Gross Weight0 lbs
HammondBrand
Height - Seated (Max)66.80mm
Insulation ClassClass B
Item Number166L25B
ManufacturerHammond Manufacturing C.
Manufacturer Part Number166L25B
Manufacturer Product Nu.166L25B
Manufacturer Standard L.4 Weeks
MFG Part #:166L25B
MfrHammond Manufacturing
MountingChassis
Mounting TypeChassis Mount
Net Weight0 lbs
PackageBulk
Power - Max50.4VA
Power TransformersFamily
Primary Voltage115 V
Primary Winding(s)Single
Product Series166
Product StatusActive
RoHSYes
Secondary Amps:2AAmperage
Secondary Voltage25.2 V
Secondary Winding(s)Single
Series166
Size / Dimension102.36mm L x 57.15mm W
Supplier:Hammond Manufacturing
Temperature Rise (F)266 ?F
TerminationWire Leads
Termination StyleWire Leads
TypeLaminated Core, Low Vol.
UPC062398002463
UPC:62398002463
VA Rating50.4 VA
Voltage - Isolation2000Vrms
Voltage - Primary117V
Voltage - Secondary (Fu.25.2V
Weight2.1 lbs (952.5 g)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
i-components166L25B14.50111845Hammond Manufacturing14.501 @ 1
Hawk Electronics166L25B39.71In StockHammond Mfg.39.7 @ 1
Onlinecomponents.com166L25B40.061In StockHAMMOND MFG40.06 @ 1
thumbzoomWalker Industrial166L25B41.611In Stock17Hammond Manufacturing41.61 @ 1
thumbzoomDigi-Key386928445.861In StockHammond Manufacturing2.145.86 @ 1
Dale-Electric166L25B45.981In StockHammond Manufacturing Co., Inc.45.98 @ 1
Newark05T643047.3113HAMMOND47.31 @ 1
thumbzoomgordonelectricsupply.com166L25B47.691In StockHAMMOND MFG47.69 @ 1
kscdirect.comHAM 166L25B49.941In StockHammond Manufacturing49.94 @ 1
thumbzoomGalco166L25B-HMND55.491In StockHammond Manufacturing55.49 @ 1
thumbzoombulbspro.com166L25B66.591In StockHammond66.59 @ 1
