HARTING 15120682601000

B00HKI3F1Q

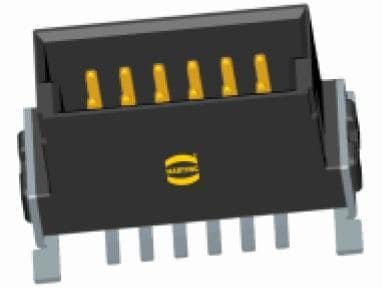

Board to Board & Mezzanine Connectors HAR-FLEX STRT MALE 68P 3.25 HGT PL1

Board to Board & Mezzanine Connectors HAR-FLEX STRT MALE 68P 3.25 HGT PL1zoom

Attributes

Key Value
Applications-
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.157" (4.00mm)
Contact Length - Post-
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating2 A
Current Rating (Amps)-
DescriptionCONN HEADER SMD 68POS 1.
Detailed DescriptionConnector Header Surfac.
Digi-Key Part Number1195-3377-2-ND - Tape &.
Fastening TypePush-Pull
FeaturesBoard Guide, Pick and P.
Ingress Protection-
Insulation ColorBlack
Insulation Height0.319" (8.10mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerHARTING
Manufacturer Product Nu.15120682601000
Manufacturer Standard L.9 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrHARTING
Mounting TypeSurface Mount
Number of Contacts68
Number of Positions68
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 125?C
OrientationStraight
Overall Contact Length-
PackageTape & Reel (TR)
Pitch1.27 mm
Pitch - Mating0.050" (1.27mm)
Primary TypeMezzanine/Stacking
Product StatusActive
Row Spacing - Mating0.050" (1.27mm)
Serieshar-flex?, har-flex Ser.
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder, SMD
TypeMale
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Verical151206826010003.882228HARTING Elektronik3.88 @ 10
Newark33AH59615.728010HARTING5.7 @ 250
Mouser617-151206826010006.261473HARTING Elektronik6.26 @ 10
RS Delivers747-2544P8.2236110HARTING8.2236 @ 10
thumbzoomDigi-Key38549068.5476186HARTING8.5476 @ 10
thumbzoomTME151206826010001421.22110HARTING1421.22 @ 10
us.rs-online.com702809601948.6928010HARTING1948.69 @ 280
