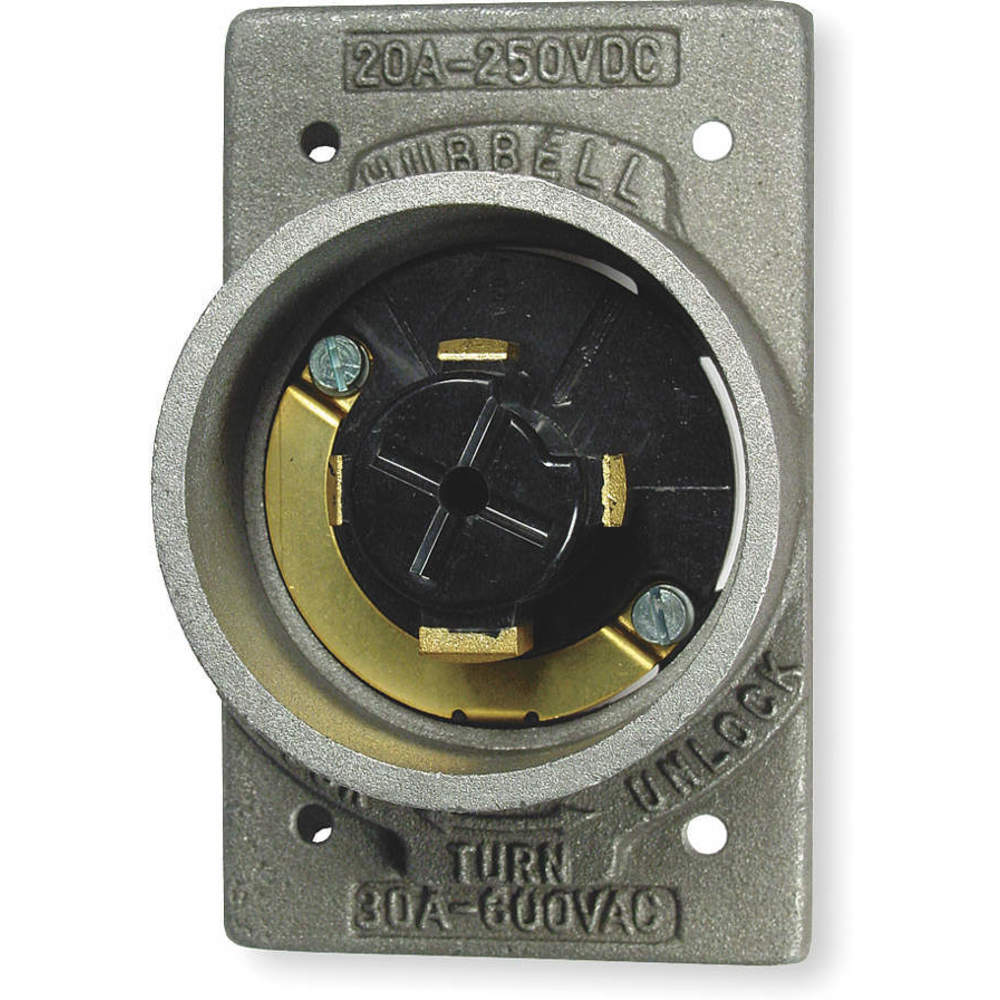

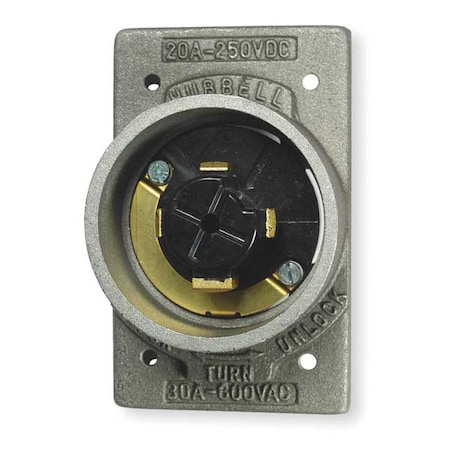

Hubbellock HBL20418

B0078RM8PI

30/20A Flanged Locking Inlet 3P 4W 600VAC/250VDC

30/20A Flanged Locking Inlet 3P 4W 600VAC/250VDCzoom

Attributes

Key Value
Amperage30 A
Amperage Rating20A
Amps30/20
ApplicationExtra Heavy Duty Indust.
ApprovalsCSA, UL
AWG Range#10 AWG to #6 AWG
BrandHubbellock
ColorGray, Metallic
Color FamilyMetallic
ConnectivityBack Wired Screw Termin.
Contact TypePin
Corrosion ResistantNo
Country of OriginUS - United States
Current / amperage rati.30 A
Current Rating30 A, 20 A, 30 A
Current rating20 A
Dielectric strengthWithstands 2,000V minim.
Dimensions4.56 in x 2.84 in x 2.4.
Display TypeStandard Sized Product
ECCNEAR99
Environmental conditionsIndoor Dry Unless Prote.
Face Plate Height4.56 in
Family SeriesHubbell Plugs & Recepta.
Flange Diameter2.84 in
Flange Height4.56 in
GradeIndustrial
Gross Weight0.85 lbs
Height2.4 in., 2.4 in
InsulationInsulated Body
IP Rating30
Isolated GroundNo
ItemFlanged Locking Inlet
Item NumberHBL20418
Length4.56 in., 4.56 in
ManufacturerHubbell
Manufacturer Part NumberHBL20418
MaterialAluminum, Cast, Aluminum
Material - mounting har.Screw Mounting
Maximum Wire Size6 AWG
Minimum Wire Size10 AWG
Mounting TypeFlange Mount, Flush Mou.
NEMA ConfigurationNon-NEMA
NEMA Rating12, 4, 4X
NEMA TypeNon-NEMA
Net Weight0.85 lbs
No. of Poles3
No. of Wires4
Number of Contacts4
Number of poles3-Pole
Number of Poles3
Number of wires4-Wire
Number of Wires4
Operating temperatureMaximum continuous 75C .
Overall Depth2.4 in
Phase3
Primary TypeTwist Lock
Rated Voltage250V dc/600V ac
SeriesHubbellock Series
Shrouded / Non-ShroudedNon-Shrouded
Special FeaturesWith Locking Cover
StandardCertified to CSA Standa.
StandardsUL/CSA
TerminationScrew
TypeFlanged Inlet, Flanged .
UNSPSC39121406
UPC Code783585017457
Voltage250 VDC/600 VAC, 600V A.
Voltage Rating600 V
Voltage rating descript.250 VDC/600 VAC
WatertightNo
Width2.84 in.
Width (in)2.84
Wire size#10 AWG to #6 AWG
Wire Size6-10 AWG, #10 AWG - #6 .
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL20418129.414HUBBELL129.4 @ 1
AmazonSCB0078RM8PI173.561In StockHubbellock173.56 @ 1
thumbzoomZoroG0461727175.79132Hubbell0.81175.79 @ 1
thumbzoomMRO Supply1020000225.711In StockHubbell Wiring225.71 @ 1
thumbzoomGalcoHBL20418-HBBL232.351In StockHubbell0.85232.35 @ 1
thumbzoomRadwellHBL20418250.011HUBBELL KELLEMS250.0 @ 1
thumbzoomturtle.comHUB HBL20418253.331In StockHubbell253.33 @ 1
Graybar88126118282.36321In StockHubbell Wiring Device - Kellems282.3632 @ 1
us.rs-online.com70116333313.1918Hubbell Wiring Device-Kellems313.19 @ 1
thumbzoomNewark35B476352.341In StockHUBBELL WIRING DEVICES352.34 @ 1
thumbzoomRaptor SuppliesAC8QJQ356.66929351In StockHUBBELLOCK356.6692935 @ 1
kirbyrisk.com501413367.281In StockHubbell367.28 @ 1
