Leeson Electric 811564.00

B0773TYR8T

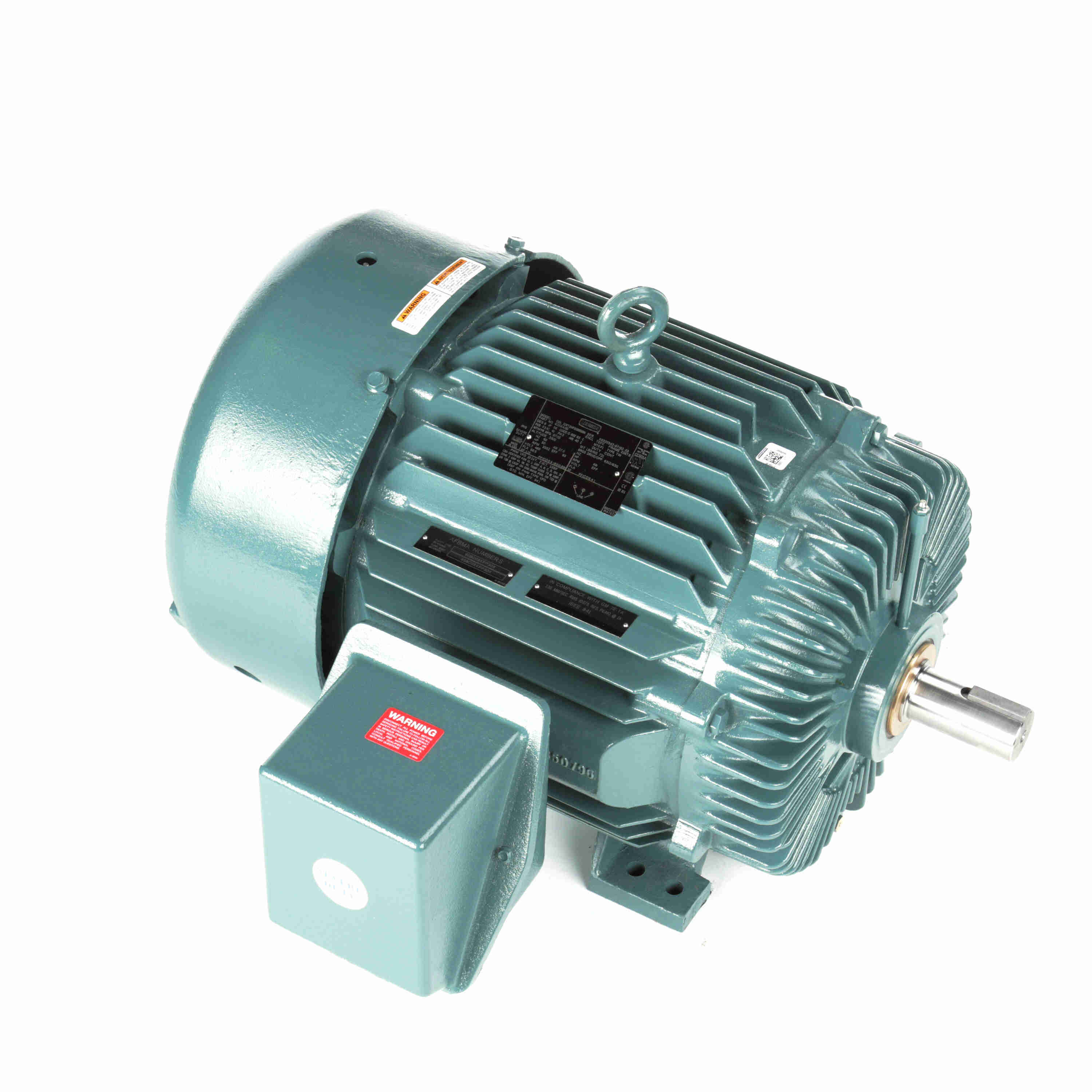

Leeson Electric, 811564.00, 50HP, 3552RPM, 3PH, 460V, 326TS Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motor

Leeson Electric, 811564.00, 50HP, 3552RPM, 3PH, 460V, 326TS Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motorzoom

Attributes

Key Value
Amperage Rating56.5 A
Bearing TypeBall
CompositionCast Iron
Description:OBSOLETE REPLACED BY 32.
Dimensions28.87 in L x 26.05 in W.
Efficiency %93 %
EnclosureTotally Enclosed Fan Co.
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors
Frame326TS
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower50 hp
Insulation ClassClass F
Item Number811564.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number811564.00
MaterialCast Iron
MFG Part #:811564.00
Mounting TypeFoot Mount, Rigid Base
NEMA Frame326TS
Net Weight725 lbs
Nominal Voltage480 VAC
Phase3, 3 ph
RotationReversible
RPM3,552 RPM
Service Factor1.15
Shaft Size1.88 in Dia x 3.75 in L
Special FeaturesSevere Duty Motors
Speed3552 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720247396
Voltage (AC)460 VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco811564.00-LEES5704.831In StockLeeson725.05704.83 @ 1
kscdirect.comLEE 811564.006427.061In StockLEESON ELECTRIC CORPORATION6427.06 @ 1
thumbzoomWalker Industrial811564-006658.231In Stock10Leeson6658.23 @ 1
AmazonTPB0773TYR8T8605.61In Stock10Leeson Electric8605.6 @ 1
thumbzoomRaptor SuppliesAJ2UKQ11226.31713451In StockLEESON11226.3171345 @ 1
