Marathon Electric O211

B007ZQL4R0

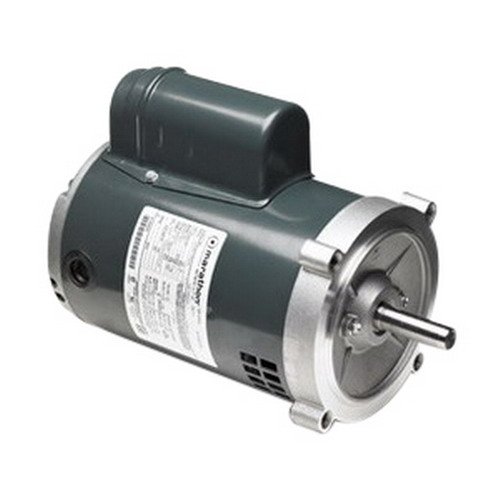

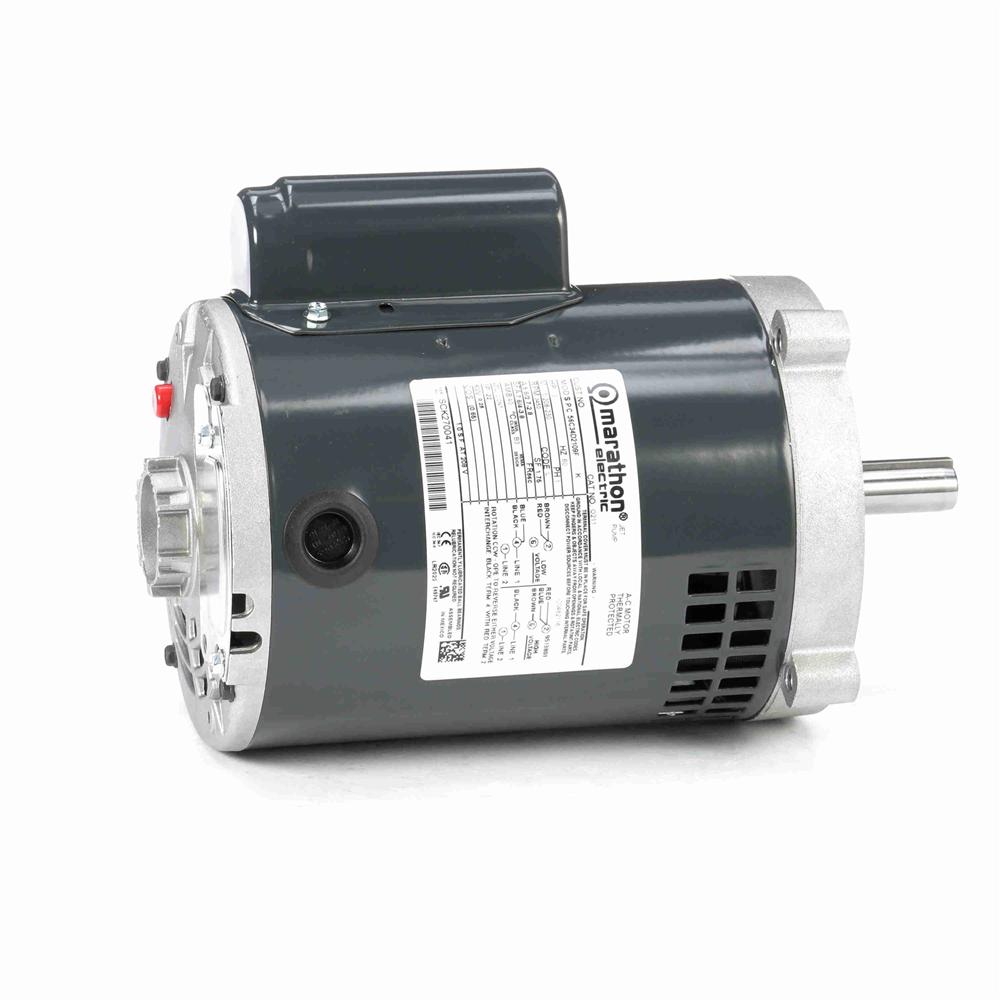

Marathon O211 56C Frame Open Drip Proof 56C34D2109 Oil Burner Motor, 1/3 hp, 3600 RPM, 115/208-230 VAC, 1 Phase, 1 Speed, Ball Bearing, Flange Mount, Capacitor Start

Marathon O211 56C Frame Open Drip Proof 56C34D2109 Oil Burner Motor, 1/3 hp, 3600 RPM, 115/208-230 VAC, 1 Phase, 1 Speed, Ball Bearing, Flange Mount, Capacitor Startzoom

Attributes

Key Value
Alternate Mfr Part Numb.056C34D2109
Amps5.6/2.7-2.8
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Country of Origin (subj.Mexico
Duty CycleContinuous
Efficiency0.64
Efficiency %64 %
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motors
Frame56C
frame material:Rolled Steel
frame size:56C
Frequency60 Hz
frequency rating:60 Hz
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
Item NumberO211
Kilowatts0.25 kW
ManufacturerMarathon Electric
Manufacturer Model #056C34D2109
Manufacturer Part Number056C34D2109
Maximum Ambient Tempera.40? C
motor category:Oil Burner Motor
motor horsepower:0.33 hp, 1/3 hp
motor phase:1 ph
Motor Shell Length6.5"
motor supply voltage:115/208-230 V
MountingFace
Mounting OrientationHorizontal
Mounting TypeRound
mounting type:C-Face Flange
NEMA Frame56C
Net Weight14 lbs
Number of Poles2
Number of Speeds1
Overall Length10.44", 10.44 "
Package Quantity1
Phase1
Product TypeCapacitor Start
RotationReversible
RPM3,450 RPM, 3400 - 3600,.
Service Factor1.75
service factor:1.00
Shaft Diameter0.63 ", 5/8"
Shaft Length2.06"
Ship Weight14 lbs.
standards met:UL, CSA
synchronous rpm:3600 rpm
Thermal ProtectionManual
Voltage115/208-230
Voltage (AC)115 VAC, 208-230 VAC
Volts115, 208, 230
weight:14 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com03900245159.641In StockMarathon Electric159.64 @ 1
thumbzoomapexindustrialautomation.comO211164.76128Marathon164.76 @ 1
thumbzoomGalcoO211-MARA169.091In StockMarathon Electric14.0169.09 @ 1
thumbzoomemotorpro.comO211183.361In StockMarathon14.0183.36 @ 1
thumbzoomMRO Supply2269775187.71In StockMarathon Electric187.7 @ 1
thumbzoommidwestapplianceparts.comO211-MT-P190.171In StockMarathon190.17 @ 1
us.rs-online.com72650263190.471In StockMarathon Motors190.47 @ 1
thumbzoomNational Supply NetworkB872050192.941In StockMARATHON MOTORS192.94 @ 1
thumbzoomindustrialstores.comO211203.671In Stock26Marathon Motors203.67 @ 1
thumbzoomptacsolutions.comO211232.791In StockMarathon Motors232.79 @ 1
thumbzoomGuardianMARSO211249.41In StockMarathon249.4 @ 1
thumbzoomZoroG204949331286.991In StockMarathon Motors286.99 @ 1
