Martin 6 5V 1320 F

B004BJ2F5Y

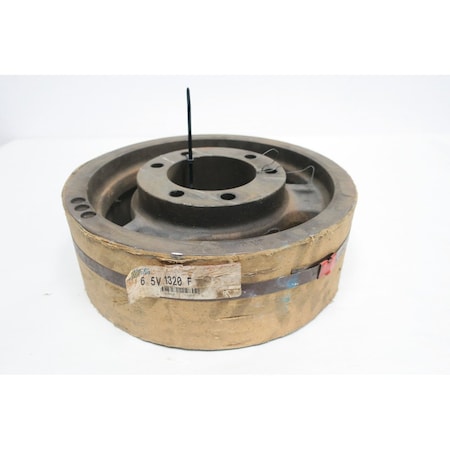

Martin 6 5V 1320 F Hi-Cap QD Sheave, 5V Belt Section, 6 Grooves, F Bushing required, Class 30 Gray Cast Iron, 13.2" OD, 1879 max rpm, 13.1" Pitch Diameter

Martin 6 5V 1320 F Hi-Cap QD Sheave, 5V Belt Section, 6 Grooves, F Bushing required, Class 30 Gray Cast Iron, 13.2" OD, 1879 max rpm, 13.1" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section5V
belt section size:5V
Bore TypeBushed
bore type:QD Bushed
Bushed ForF
bushing bore range:1.0000 to 4.0000 in
Bushing Maximum Bore Si.3.3125 "
Bushing MountReverse
bushing series:F
Bushing StyleQD
Length Through Bore3.625 "
manufacturer upc number:697950119809
MaterialCast Iron
material:Cast Iron
mounting type:STD
Number of Grooves6
Outer Diameter13.2 in
Outside Dia13.200"
overall width:4-7/16 in
Package Quantity1
Pitch Diameter13.1 "
pitch diameter:13.1000 in
pulley construction:Arm / Spoke
Sheave ConstructionArm / Spoke
sheave drawing type:B
Sheave Face Width4.4375 "
Sheave TypeHigh Capacity
UPC Code697950119809
Weight48.2 lbs
weight:48 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonSCB004BJ2F5Y347.771In StockMartin347.77 @ 1
AmazonB004BJ2F5Y416.061In StockMartin416.06 @ 1
thumbzoommotionindustries.com00707282534.581In StockMartin534.58 @ 1
us.rs-online.com72480271540.631In StockMartin Sprocket & Gear48.2540.63 @ 1
thumbzoomMRO Supply255514564.361In StockMartin Sprocket564.36 @ 1
factorysupplyoutlet.comHH71YT571.411In Stock25MARTIN571.41 @ 1
thumbzoomPurvis6 5V 1320 F589.51In StockMartin589.5 @ 1
thumbzoomZoroG107203677615.9911Martin615.99 @ 1
