Miller 63 TNCHE3T9A X 50.00

B00C70JJ80

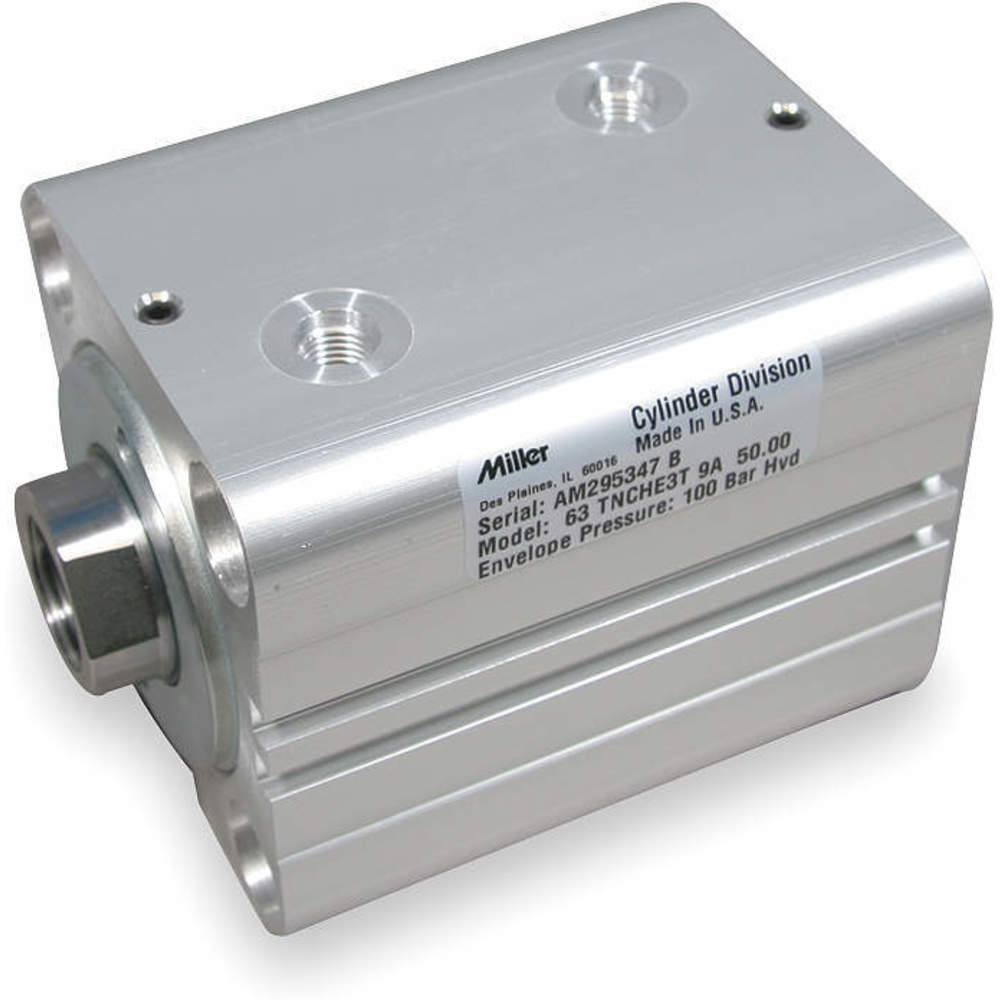

Hydraulic Cylinder, 63mm Bore, 50mm Stroke

Hydraulic Cylinder, 63mm Bore, 50mm Strokezoom

Attributes

Key Value
Bore Dia.63 mm
Bore Dia. (mm)63
Dimension A (mm)30
Dimension C (mm)11
Dimension D (mm)32
Dimension E (mm)94
Dimension EE (SAE)#4
Dimension EK (mm)17
Dimension EL (mm)26
Dimension FB (mm)13.5
Dimension FC (mm)20
Dimension FD (mm)13
Dimension Kk (In.)1-14
Dimension LB (mm)67
Dimension MM (mm)36
Dimension NA (mm)35
Dimension R (mm)69
Dimension RD f9 (mm)66
Dimension RT (mm)3
Dimension WP (mm)16
Dimension ZL (mm)83
Extended Length183 mm
ItemCompact Hydraulic Cylin.
Max. Pressure1,450 psi
Max. Push Capacity7,014 lb
Port Size#4 SAE
Port Size (SAE)#4
Retract (mm)133
Retracted Length133 mm
Rod Dia.36 mm
Rod Dia. (mm)36
Rod Thread (In.)1-14
Rod Thread Size1"-14
Single Acting/Double Ac.Double Acting
Stroke Length50 mm
TypeDouble Acting

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier

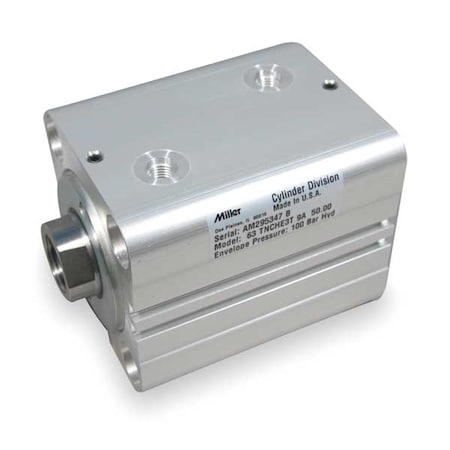

thumbzoomZoroG1898206767.991In Stock15Miller Fluid Power7.1767.99 @ 1
thumbzoomRaptor SuppliesAC3YCF1348.67497051In StockMILLER FLUID POWER1348.6749705 @ 1
