Molex / Waldom 39-29-1188

mpn39-29-1188
brandname: MOLEX
manufacturername: MOLEX

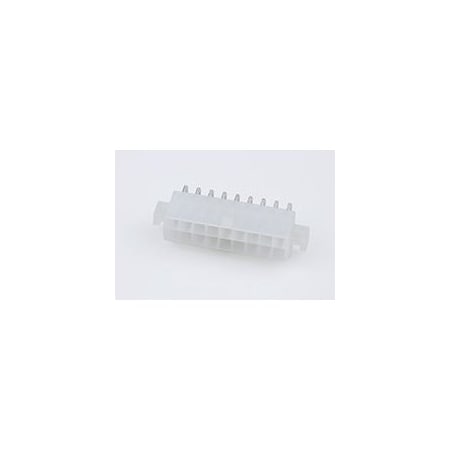

Molex / Waldom 39-29-1188 Connector Power

Brand: Molex / Waldom
PartNumber: 39-29-1188
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alias	39291188
Category	Connectors, Interconnec.
Circuits (Loaded)	18
Circuits (maximum)	18
Color	Natural
Color - Resin	Natural
Connector	socket
Connector pinout layout	2x9
Connector series	Mini-Fit Jr.
Connector Type	Male Pin
Contact Finish - Mating	100.0?in (2.54?m)
Contact Finish - Post	Brass
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	General Purpose, Indust.
Contact Length - Mating	0.142" (3.60mm)
Contact Length - Post	-
Contact Material	Polyamide (PA66), Nylon.
Contact plating	tinned
Contact Shape	Tin
Contact Type	0.165" (4.20mm)
Contacts pitch	4.2mm
CSA	LR19980
Current - Maximum per C.	13.0A
Current Rating (Amps)	-
Durability (mating cycl.	30
Duration at Max. Proces.	5
Electrical mounting	THT
Engineering PN	5569-18A1
Fastening Type	-
Features	-
Flammability rating	UL94V-2
Ingress Protection	UL94 V-2
Insulation Color	-
Insulation Height	Square
Insulation Material	Mounting Flange
Kind of connector	male
Lock to Mating Part	Yes
Locking system	latch
Manufacturer	MOLEX
Mated Stacking Heights	100.0?in (2.54?m)
Material - Plating Mati.	Matte Tin
Material - Plating Term.	Matte Tin
Material Flammability R.	Natural
Max. Cycles at Max. Pro.	1
Maximum current	9A
Mechanical mounting	holders
Mfr	MOLEX
Mounting Type	Solder
Number of pins	18
Number of Positions	2
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	2, 0.165" (4.20mm)
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	0.378" (9.60mm)
Package	Active
Part Status	Header
PCB Locator	Yes
PCB Retention	Yes
PCB Thickness - Recomme.	1.78mm
Pitch - Mating	18
Pitch - Mating Interface	4.20mm
Pitch - Termination Int.	4.20mm
Plating min - Mating	2.540?m
Polarized to Mating Part	Yes
Polarized to PCB	Yes
Row Spacing - Mating	All
Series	Bulk
Shrouded	Fully
Shrouding	Through Hole, Right Ang.
Spatial orientation	angled 90?
Style	Shrouded - 4 Wall
Temperature Range - Ope.	-40? to +105?C
Termination	Locking Ramp
Type of connector	wire-board
Voltage - Maximum	600V
Voltage Rating	-
