Molex / Waldom 39-30-6047

mpn39-30-6047
brandname: MOLEX
manufacturername: MOLEX

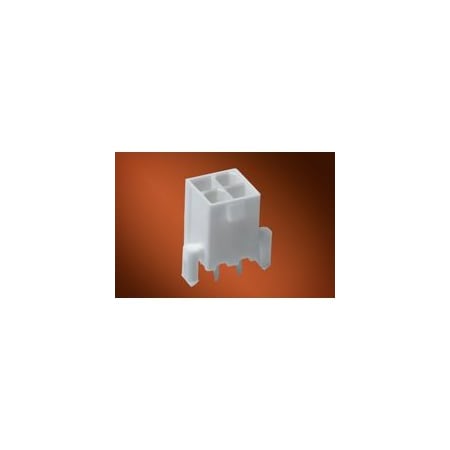

Molex / Waldom 39-30-6047 Connector Power

Brand: Molex / Waldom
PartNumber: 39-30-6047
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Part No.	538-39-30-6047
Applications	General Purpose, Indust.
Base Product Number	003930
Brand	MOLEX
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Gender	Pin (Male)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
Current Rating	9 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 4POS 4.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM17746-ND
Fastening Type	Locking Ramp
Features	Board Lock
Housing Material	Nylon
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.504" (12.80mm)
Insulation Material	Polyamide (PA66), Nylon.
Manufacturer	MOLEX
Manufacturer Part No.	39-30-6047
Manufacturer Product Nu.	0039306047
Manufacturer Standard L.	19 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-2
Mfr	MOLEX
Mounting Angle	Vertical
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Tray
Package Quantity	1
Packaging	Tray
Part # Aliases	0039306047 5566-04B2S
Pitch	4.2 mm
Pitch - Mating	0.165" (4.20mm)
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Header Assemblies
Row Spacing	5.5 mm
Row Spacing - Mating	0.165" (4.20mm)
Series	5566, Mini-Fit Jr 5566
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Termination Style	Through Hole
Tradename	Mini-Fit Jr.
Type	Pin Header
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	39-30-6047	0.394	1	2675	MOLEX / WALDOM	0.394 @ 50
Waldom	MOLEX 39-30-6047	0.43	150	12340	MOLEX	0.43 @ 150
Newark	01AH8352	0.456	1	61	MOLEX	0.456 @ 50
TME	MX-39-30-6047	0.519	5	50	MOLEX	0.519 @ 50
jensentools.com	10188554	0.57	1	50	Molex	0.57 @ 50
RS Delivers	178-9713	0.5952	1	50	Molex	0.5952 @ 50
Digi-Key	1633818	0.91	1	52636	Molex	0.91 @ 50
swatee.com	39-30-6047	1.14	1	88	Molex	1.14 @ 50
Radwell	39-30-6047	1.6	1	50	MOLEX	1.6 @ 50
Zoro	G7770722	102.0	1	50	Molex	102.0 @ 50
