PARKER 1.06PSR01.00

mpn1.06PSR01.00
brandname: Parker
manufacturername: Parker

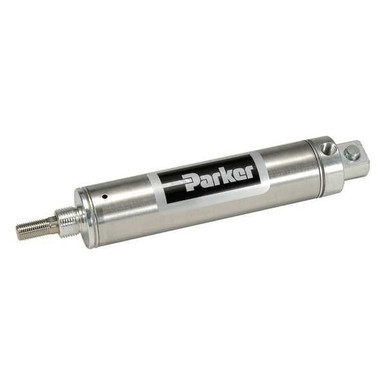

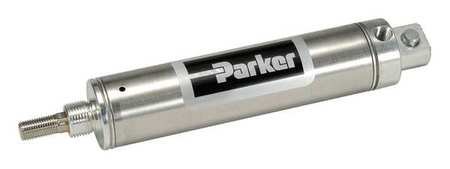

1-1/16" Bore Round Single Acting Air Cylinder 1" Stroke

1-1/16" Bore Round Single Acting Air Cylinder 1" Stroke

zoom

Brand: PARKER
PartNumber: 1.06PSR01.00
Manufacturer: PARKER
Label: PARKER

Attributes

Key	Value
Air Cylinder Bore Dia.	1 1/16 in
Air Cylinder Mount	Pivot
Air Cylinder Type	Round Body
Body Material	Stainless steel
Bore Dia.	1 1/16 in
Brand	Parker
Country of Origin (subj.	United States
Current Stock	57
Cushion Type	None
Cylinder Action	Single Acting
Cylinder Type	Round Non-Repairable, N.
Dimension A	1/2 in
Dimension B	0.624 in
Dimension Cb	0.38 in
Dimension Cc	0.312 in
Dimension Cd	0.25 in
Dimension D	0.25 in
Dimension E	0.38 in
Dimension Kk	5/16"-24 UNF
Dimension L	0.34 in
Dimension N1	5/8"-18
End Cap Material	Aluminum
Features	Non-Switch Ready
Finish	Silver
International Shipping	No
Item	Air Cylinder
Magnetic Piston	No
Max. Pressure	250 psi
Maximum Stroke	1 inch
Mount	Pivot
Mpn	1.06PSR01.00
Nose Mount Thread	5/8"-18
Overall Length	5 in
Piston Material	Aluminum
Piston Rod Material	Stainless steel
Pivot Hole Dia.	0.251 in
Port Size	1/8 in FNPT
Promotion Restriction	Not eligible for promot.
Prop 65	WARNING: Cancer and Rep.
Rod Dia.	0.312 in
Rod End Style	Standard Rod End (Male)
Rod Thread Length	0.5 in
Rod Thread Size	5/16-24 UNF
Single Acting/Double Ac.	Single Acting
SKU	ZO-G6178322
Spring Retraction Force	3 lb
Stroke	1 in
SubCategory	Pneumatics
Temp. Range	-10 Degrees to 165 Deg.
Tube Material	Stainless steel
UOM	EACH

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Wilson	1.06PSR01.00	29.45	1	In Stock		Parker - Pneumatic Division		29.45 @ 1
	sustainablesupply.com	C1685306	42.15	1	In Stock		Parker	0.3	42.15 @ 1
	Zoro	G6178322	45.7	1	195		Parker	0.3	45.7 @ 1
	simsupply.com	ZO-G6178322	59.28	1	57		Parker		59.28 @ 1
	Raptor Supplies	AJ2EGB	64.202931	1	In Stock		PARKER		64.202931 @ 1
