PHOENIX CONTACT 1718025

B004I2TH9Q

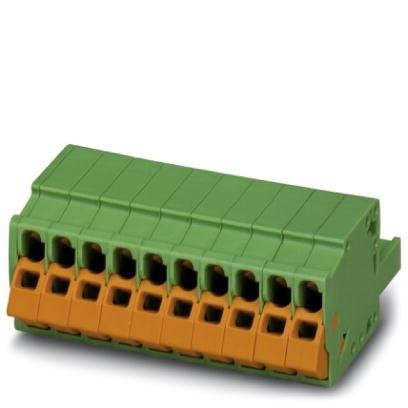

1718025 Phoenix Contact QC 1,5/ 8-ST

1718025 Phoenix Contact QC 1,5/ 8-STzoom

Attributes

Key Value
Alternate Mfr Part Numb.QC 1 5/ 8-ST
Alternate Part No.651-1718025
ApprovalsEAC ; cULus Recognized,.
BrandPhoenix Contact
CategoryConnectors, Interconnec.
ColorGreen
Connection MethodIDC/IDT
Contact Material-
Contact Mating FinishTin
Contact PlatingTin
Contact Tail Length-
Current - IEC12A
Current - UL10 A
Current Rating12 A
DescriptionTERM BLOCK PLUG 8POS ST.
Detailed Description8 Position Terminal Blo.
Digi-Key Part Number277-8607-ND
Dimensions5 mm
Family NameCOMBI Plug Family
FeaturesRetention Latches (Non-.
Header Orientation-
Housing MaterialPolyamide (PA), Nylon, .
Ingress Protection-
Insulation Height0.772" (19.60mm)
ManufacturerPhoenix Contact
Manufacturer Part No.1718025
Manufacturer Product Nu.1718025
Manufacturer Standard L.10 Weeks
Material Flammability R.UL94 V-0
MfrPhoenix Contact
Mounting TypeFree Hanging (In-Line),.
Number of Contacts8
Number of Levels1
Number of Positions8, 8 Position
Operating Temperature-
PackageBulk
Part # AliasesQC_1,5/_8-ST QC158ST
Pin Spacing5 mm(0.197 in), 5 mm (0.
Pitch5 mm, 0.197" (5.00mm)
Plug Wire Entry180?
Positions Per Level8
Primary TypeWire to Board
ProductPlugs
Product CategoryPluggable Terminal Bloc.
Product StatusActive
Screw Size-
SeriesQC, COMBICON QC, COMBIC.
TerminationIDC
Termination StyleScrewless - IDC
Torque - Screw-
TradenameCOMBICON Control
TypePlug, Plug, Female Sock.
Unit Weight270 g
UPC Code4046356140294
Voltage - IEC1 kV
Voltage - UL300 V
Voltage Rating630 V, 500 V
Wire Gauge or Range - A.16-24 AWG
Wire Gauge or Range - m.0.2-1.5mm?
Wire Gauge Range24-16
Wire Size16 AWG, 16-24 AWG
Wire Strip Length-
Wire Termination TypeIDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
electricautomationnetwork.comQC 1,5/ 8-ST5.041In StockPHOENIX_CONTACT5.04 @ 1
Onlinecomponents.com17180255.621In StockPhoenix Contact5.62 @ 1
HotendaH15427266.181In StockPhoenix Contact6.18 @ 1
thumbzoomDigi-Key25140006.753650In StockPhoenix Contact6.7536 @ 50
industrialautomationparts.comAE-0080357.171In StockPhoenix Contact7.17 @ 1
MRO Stop7530337757.451In StockPhoenix Contact7.45 @ 1
us.rs-online.com700554397.4750In StockPhoenix Contact7.47 @ 50
Airline HydraulicsPHOENIX 17180257.7514396Phoenix Contact7.75 @ 1
thumbzoomswatee.com171802510.16142Phoenix Contact10.16 @ 1
