Ruland PCMR13-5-4-A

9820492580

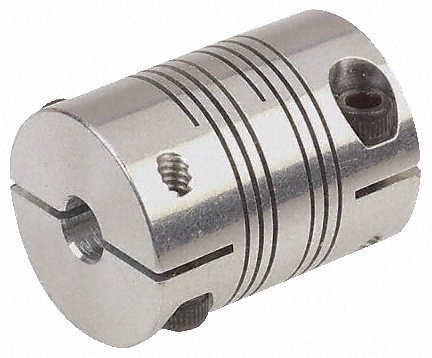

Ruland - PCMR13-5-4-A - Coupling, 4 Beam Clamp, Bore 5 x 4 mm

Ruland - PCMR13-5-4-A - Coupling, 4 Beam Clamp, Bore 5 x 4 mmzoom

Attributes

Key Value
Bore Dia.5mm x 4mm
Clearance Dia. (mm)12.7
Country of Origin (subj.United States
FinishBright
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length through Bore9.55 mm
Length through Bore (In.0.375
Length through Bore (mm)9.55
MaterialAluminum
Material - CouplingsAluminum
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.005
Max. Parallel Misalignm.0.008 in
Max. RPM6,000 RPM
Max. Temp.225 Degrees F
Max. Temp. Range (F)225
Outside Dia.12.7 mm
Outside Dia. (In.)0.500
Outside Dia. (mm)12.70
Overall Length19.1 mm
Overall Length (In.)0.75
Overall Length (mm)19.10
Rated Torque8 in-lb
Screw SizeM2
Screw Size (mm)M2
Screw TypeCap Screw
Shaft Locking Type - Co.1 Piece Clamp
Style4 Beam Clamp
Torque (In.-Lbs.)8
Torsional Stiffness (De.0.75

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers814-45535.196141Ruland35.196 @ 1
Grainger2ADL943.11In Stock10RULAND MANUFACTURING43.1 @ 1
thumbzoomZoroG024236546.251In Stock10Ruland Manufacturing0.0146.25 @ 1
thumbzoomsustainablesupply.comC164436353.051In StockRuland Manufacturing0.0153.05 @ 1
