Square D QGL22200LW

B00CONKQSM

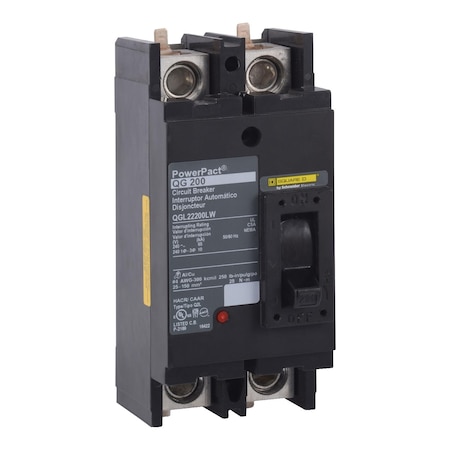

SQUARE D QGL22200LW Molded Case Circuit Breaker 240V 200A

SQUARE D QGL22200LW Molded Case Circuit Breaker 240V 200Azoom

Attributes

Key Value
[Ue] Rated Operational .240 V AC 50/60 Hz UL
[Uimp] Rated Impulse Wi.8 kV UL
AC Voltage Rating240VAC
Accessory / Separate Pa.control wire ON and OFF.
Ambient Air Temperature.40-70 ?C
Amperage Rating200
Amps200
ApplicationHACR rated Applications.
BrandSquare D
Breaking Capacity65 kA 120/208 V AC 50/6.
Breaking Capacity CodeG
California Proposition .DINP, which is known to.
Catalog NumberQGL22200LW
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatoroperating handle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.Unit Mount Lug
Circularity ProfileN/A
ConnectionLUGS LOAD AWG 4...300 K.
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typeoperating handle
Country of OriginMexico
Depth3.93 in
Device Applicationdistribution
Electrical Connectionlugs, load || lugs, line
Environmental DisclosureENVPEP1406032EN
Eu Rohs DirectiveCompliant with Exemptio.
FeaturesMercury Free; PVC Free
FrameG
Frame SizeQ
GTIN00785901926023
Gtin00785901926023
Halogen Content Perform.Halogen free product
Height6.47, 6.47 in
Height UOMInch
High Amp Trip Setting2400 A
Interrupt Rating65 kA at 120/208/240V A.
ItemMolded Case Circuit Bre.
Item Typecircuit breaker
Length3.93 in
Line Rated Current200-200 A, 200 A
Local Signalling1 trip indicator green)
Made in USANo
Magnetic Hold Current1200 A
Magnetic Tripping Curre.2400-2400 A
ManufacturerSchneider Electric
Max. AIR Rating65 kA
Mechanical Durability1000 cycles loaded || 5.
Mercury FreeYes
Mounting Modeunit mount lug)
Mounting Supportlug
MpnQGL22200LW
Network Frequency50/60 Hz
Number of Poles2
Phase1
Poles2
Poles Description2P
Product CertificationsUL || CSA || NOM
Product NamePowerPact Q
Product Or Component Ty.circuit breaker
Pvc FreeYes
RangePowerPact
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesOGL
Special FeaturesUNIT MOUNT
StandardIEC-UL LISTED-CSA
StandardsUL, CSA, NEMA, NOM, UL .
Sustainable Offer StatusGreen Premium product
Terminal Connectionlug
Tightening Torque28-28 N.m 25-150 mm? (A.
Trip Range1200 A,200 A,2400 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
Upc785901926023
UPC785901926023
Utilisation Categorycategory A
Voltage Rating240 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width3.00 in, 3.0
Width UOMInch
Wire Stripping Length22 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comQGL22200LW807.55112Square D807.55 @ 1
thumbzoomsustainablesupply.comC30464041018.991In StockSquare D3.61018.99 @ 1
thumbzoomRadwellQGL22200LW1150.01In StockSCHNEIDER ELECTRIC SQUARE D1150.0 @ 1
thumbzoommayerelectric.comSQDQGL22200LW1272.53941In StockSQUARE D1272.5394 @ 1
thumbzoomgordonelectricsupply.comQGL22200LW1272.541In Stock10SQUARE D1272.54 @ 1
thumbzoomZoroG08424181272.541In Stock10Square D3.61272.54 @ 1
Newark71K96641791.651In StockSQUARE D BY SCHNEIDER ELECTRIC1791.65 @ 1
standardelectricsupply.com23928841854.981In StockSquare D1854.98 @ 1
thumbzoomcrescentelectric.com7692822623.091In StockSquare D2623.09 @ 1
