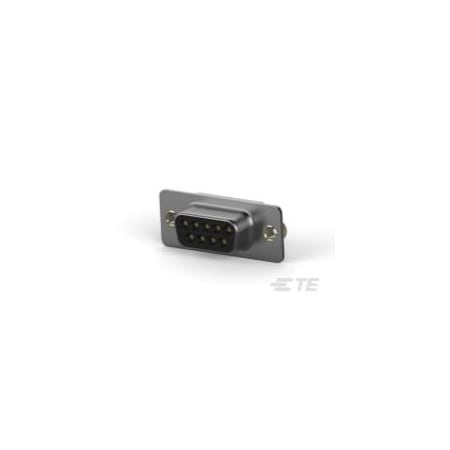

TE CONNECTIVITY 5-747905-7 D SUB CONNECTOR, STANDARD, 9POS, RCPT (10 pieces)

TE CONNECTIVITY 5-747905-7 D SUB CONNECTOR, STANDARD, 9POS, RCPT (10 pieces)zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
Alternate Mfr Part Numb.5-747905-7
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number747905
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.11?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleD-Sub, Receptacle
Connector SystemCable-to-Board
Connector TypeReceptacle, Female Sock.
Contact Base MaterialPhosphor Bronze
Contact ConfigurationSolder Cup
Contact Current Rating .3
Contact FinishGold
Contact Finish ThicknessFlash
Contact Form-
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold Flash
Contact Size20
Contact TypeSignal
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN D-SUB RCPT 9POS SL.
Detailed Description9 Position D-Sub Recept.
Dielectric MaterialPolybutylene Terephthal.
Digi-Key Part Number5-747905-7-ND
EnclosureWithout
Features-
Flange FeatureCable Side (4-40)
Housing FinishTin
Ingress Protection-
Insert MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5-747905-7
Manufacturer Standard L.15 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Clinch Nut, 4-40 UNC
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Contacts9
Number of Positions9
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTray
PCB Contact Termination.Tin-Copper
PCB Mount Retention TypeNone
Primary TypeD-Sub
Product StatusActive
SealableNo
SeriesHD-20 Series, AMPLIMITE.
Shell MaterialFull Metal Shell
Shell Material, FinishSteel, Tin Plated
Shell Size1
Shell Size, Connector L.1 (DE, E)
Shell TypeFull Metal Shell
ShieldedYes
StandardsUL94 V-0
TerminationSolder Cup, Solder
Termination Method to W.Solder
TypeCable Socket
Voltage Rating250V, 250 V
Wire Gauge-
Wire Size.5 ? .6, 20, 20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5-747905-76.46100010TE CONNECTIVITY/AMP BRAND6.46 @ 1000
thumbzoomNewark52K37637.23200010TE CONNECTIVITY7.23 @ 2000
TE Connectivity5-747905-77.78611284TE Connectivity (TE)7.7861 @ 10
thumbzoomZoroG0010487638.0200010Te Connectivity8.0 @ 2000
Mouser571-5-747905-78.591513TE Connectivity8.59 @ 10
Onlinecomponents.com5-747905-79.434328TE Connectivity9.43 @ 10
thumbzoomDigi-Key22588429.74411476TE Connectivity AMP Connectors9.744 @ 10
us.rs-online.com7008489312.541326TE Connectivity12.54 @ 10
AmazonTPB00DEDK20I14.061102TE CONNECTIVITY14.06 @ 10
