TE Connectivity T92S7D22-12

B00FRBZF1G

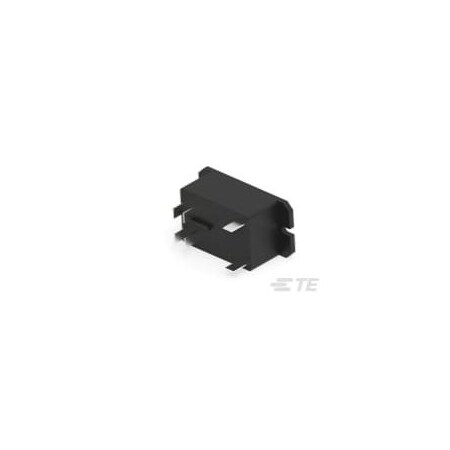

TE Connectivity / P&B Brand T92S7D22-12 Power Relays (20 Amps to 99.9 Amps)

TE Connectivity / P&B Brand T92S7D22-12 Power Relays (20 Amps to 99.9 Amps)zoom

Attributes

Key Value
Alternate Mfr Part Numb.1-1393212-4
Base Product NumberT92S7
CategoryRelays
Coil Current140 mA
Coil InsulationClass F
Coil Resistance86 Ohms
Coil TypeNon Latching
Coil Voltage12 VDC, 12VDC
Contact Current Rating30 A
Contact FormDPST-NO, DPST-NO (2 For.
Contact MaterialSilver Cadmium Oxide (A.
Contact Rating (Current)30 A
Contact Voltage Rating300 VAC
Control Voltage12
Country of Origin (subj.China
Current Rating30 A
DescriptionRELAY GEN PURPOSE DPST .
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part NumberPB298-ND
Features-
FunctionGeneral Purpose
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.T92S7D22-12
Manufacturer Standard L.21 Weeks
MfrTE Connectivity Potter .
Mounting TypePanel Mount, Chassis Mo.
Must Operate Voltage9 VDC
Must Release Voltage1.2 VDC
Number of Pins6 Pin
Operate Time15 ms
Operating Temperature-55?C ~ 85?C
PackageBulk
Primary TypePower Relays
Product HeaderT92 Series Two-Pole DC .
Product StatusActive
Relay TypeElectromechanical, Gene.
Release Time15 ms
Seal Rating-
SeriesT92 Series, T92
StandardsUL ; CSA ; VDE
Switching Voltage277VAC - Nom
TerminationQC Tabs
Termination StyleQuick Connect - 0.250" .
Voltage Rating600 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomExcessParts.NetT92S7D22-126.07113TE CONNECTIVITY6.07 @ 2
Onlinecomponents.comT92S7D22-1210.03392TE Connectivity10.03 @ 3
Carlton Bates Company7411499883612.77131TE Connectivity12.77 @ 2
Future Electronics428119219.4281202TE Connectivity19.428 @ 120
thumbzoomNewark17M309922.93175POTTER&BRUMFIELD - TE CONNECTIVITY22.93 @ 2
thumbzoomZoroG80097400323.012Te Connectivity23.0 @ 2
us.rs-online.com7019879223.85119TE Connectivity23.85 @ 2
thumbzoomDigi-Key25451529.0412029TE Connectivity Potter & Brumfield Relays29.04 @ 2
Wild West Pool SuppliesT92S7D22-1229.9612Potter & Brumfield0.1929.96 @ 2
AmazonTPB07KX7MNX138.1121TE Connectivity / AMP Brand38.1 @ 2
AmazonSCB07KX7MNX138.112TE Connectivity / AMP38.1 @ 2
thumbzoomebay.com_harrnage-0T92S7D22-12113.2412POTTER&BRUMFIELD - TE CONNECTIVITY113.24 @ 2
thumbzoomebay.com_chgv47T92S7D22-12114.9812POTTER&BRUMFIELD - TE CONNECTIVITY114.98 @ 2
thumbzoomebay.com_csatoolboxT92S7D22-12117.9412POTTER&BRUMFIELD - TE CONNECTIVITY117.94 @ 2
thumbzoomebay.com_plccenterT92S7D22-12126.9912POTTER&BRUMFIELD - TE CONNECTIVITY126.99 @ 2
thumbzoomebay.com_boombenderT92S7D22-12129.1912POTTER&BRUMFIELD - TE CONNECTIVITY129.19 @ 2
thumbzoomebay.com_gregory.281T92S7D22-12145.1112POTTER&BRUMFIELD - TE CONNECTIVITY145.11 @ 2
thumbzoomebay.com_pstpoolsT92S7D22-12156.1912POTTER&BRUMFIELD - TE CONNECTIVITY156.19 @ 2
