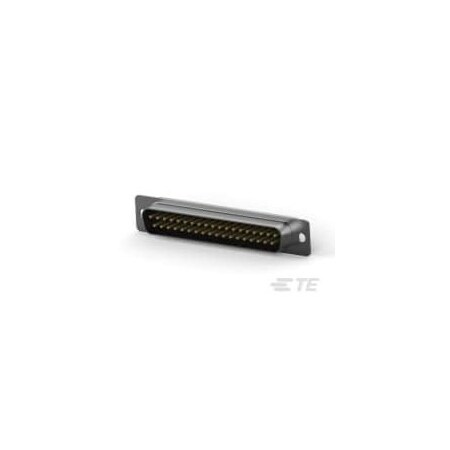

TE CONNECTIVITY / AMP 5-747916-2 D SUB CONNECTOR, STANDARD, 37POS, PLUG (500 pieces)

TE CONNECTIVITY / AMP 5-747916-2 D SUB CONNECTOR, STANDARD, 37POS, PLUG (500 pieces)zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
Alternate Mfr Part Numb.5-747916-2
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number747916
Cable Clamping MethodSolder
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.11?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StylePlug, D-Sub
Connector SystemCable-to-Board
Connector TypePlug, Male Pins
Contact Base MaterialPhosphor Bronze
Contact ConfigurationSolder Cup
Contact Current Rating .3
Contact FinishGold
Contact Finish Thickness8.00?in (0.203?m)
Contact Form-
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold Flash
Contact Size20
Contact TypeSignal
Contact Underplating Ma.Nickel
Current Rating3 A
Current Rating (Amps)3A
Dielectric MaterialPolybutylene Terephthal.
EnclosureWithout
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthread.
Housing FinishTin
Ingress Protection-
Insert MaterialWithout
ItemConnector
MaterialSteel
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Mounting Holes
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Contacts37
Number of Positions37
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTray
Part StatusActive
PCB Contact Termination.Tin-Copper
PCB Mount Retention TypeNone
Primary TypeD-Sub
SealableNo
SeriesHD-20 Series, AMPLIMITE.
Shell MaterialFull Metal Shell
Shell Material, FinishSteel, Tin Plated
Shell Size4
Shell Size, Connector L.4 (DC, C)
Shell TypeFull Metal Shell
ShieldedYes
StandardsUL94 V-0
TerminationSolder, Solder Cup
Termination Method to W.Solder
TypeCable Plug, Plug, Pin
Voltage Rating250V, 250 V
Wire Gauge-
Wire Size.5 ? .6, 20, 20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark79K34993.3811560AMP - TE CONNECTIVITY3.38 @ 500
WaldomTE CONNECTIVITY AMP BRAND 5-747916-23.7615500TE CONNECTIVITY/AMP BRAND3.76 @ 500
Onlinecomponents.com5-747916-24.1811492TE Connectivity / AMP Brand4.18 @ 500
Future Electronics35459515.1241600500TE Connectivity5.124 @ 500
us.rs-online.com700415375.441500TE Connectivity5.44 @ 500
TE Connectivity5-747916-25.493511645TE Connectivity (TE)5.4935 @ 500
Digi-Key31117035.913564513179TE Connectivity AMP Connectors5.9135645 @ 500
RS Delivers489-2471P8.56921500TE Connectivity8.5692 @ 500
thumbzoomZoroG201037703101.251500Te Connectivity101.25 @ 500
AmazonTPB083N1SNT8118.3615001TE Connectivity / AMP118.36 @ 500
