W.E. Anderson? WE01-FTD01-A

mpnWE01-FTD01-A
brandname: W.E. Anderson
manufacturername: W.E. Anderson

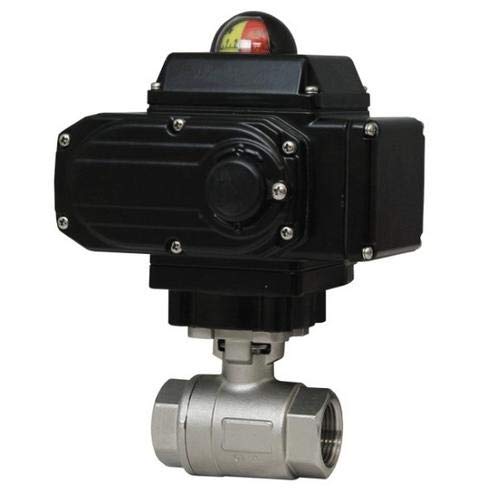

W.E. Anderson 2-Piece NPT SS Ball Valve, WE01-FTD01-A, 1-1/4" 2 Position NEMA 4X Electric Actuator

W.E. Anderson 2-Piece NPT SS Ball Valve, WE01-FTD01-A, 1-1/4" 2 Position NEMA 4X Electric Actuator

zoom

Brand: W.E. Anderson?
PartNumber: WE01-FTD01-A
PackageQuantity: 1
Manufacturer: W.E. Anderson
Label: W.E. Anderson

Attributes

Key	Value
Agency Approvals:	Agency Approvals: Meets.
Body:	2-piece.
Cycle Time (per 90?.	10 s
Duty Rating:	85%.
Electrical Connection:	1/2" female NPT.
Enclosure Rating:	NEMA 4X (IP67).
End Connections:	Female NPT.
Housing Material:	Powder coated aluminum.
Line Sizes:	1/2 to 3".
Modulating Input:	4 to 20 mA.
Other Materials:	O-ring: Fluoroelastomer.
Power Requirements:	110 VAC
Pressure Limits:	28" Hg to 1000psi (-0.7.
Temperature Limits:	-22 to 140?F (-30 to 60.
Wetted Materials:	Body and Ball: 316 SS (.
