Albion P2XS03X31SG

mpnP12KS-PRP030K-12
brandname: Zoro Select
manufacturername: Zoro Select

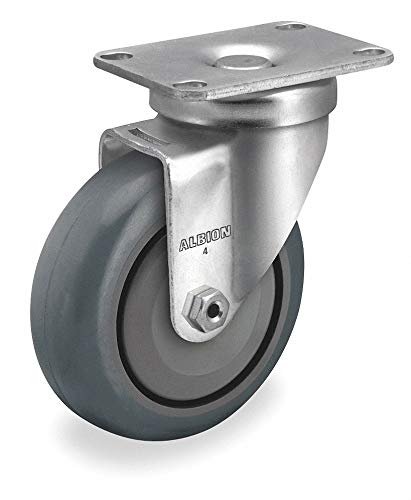

Swivel Plate Caster, 250 lb, Steel

Brand: Albion
PartNumber: P2XS03X31SG
Model: P2XS03X31SG
Color: gray
PackageQuantity: 1
Binding: Misc.
Manufacturer: ALBION
Label: ALBION

Attributes

Key	Value
Application	Retail, Industrial, Com.
Caster Brake Included	No
Caster Brake Type	No Brake Included
Caster Break Type	No Brake Included
Caster Core Material	Polypropylene
Caster Frame Material	Steel
Caster Load Rating Range	Light Duty
Caster Max. Temp.	180 Degrees F
Caster Min. Temp.	-45 Degrees F
Caster Mounting Type	Plate
Caster Plate Hole Patte.	C
Caster Plate Size	2-1/2 in x 3-5/8 in
Caster Plate Thickness	0.118 in
Caster Product Group	Swivel Caster
Caster Raceway	Double Ball
Caster Stem Type	No Stem/Plate Included
Caster Sub-Type	Swivel
Caster Swivel Lock Type	No Lock Included
Caster Temp. Range	-4 Degrees To 140 Degre.
Caster Temp. Range Avai.	Yes
Caster Wheel Bearings	Precision Ball
Caster Wheel Shape	Standard
Caster Wheel/Tread Mate.	Thermoplastic Rubber
Core Color	Gray
Country of Origin (subj.	China
Durometer	85 Shore A
ESD Conductive	No
Extended Lead	No
Features	Floor Protection, Noise.
Frame Finish	Zinc Plated
Frame Material	Steel
Includes	Thread Guards
Includes Thread Guards	Yes
Inside Bolt Hole Spacing	1-3/4 in x 2-13/16 in
Item	Swivel Plate Caster
Load Capacity	200 lb
Load Rating	200 lb
Load Rating Range	-
Mounting Bolt Dia.	5/16 in
Mounting Height	4 11/16 in
Mounting Plate Bolt Hol.	C
Mounting Plate Size	2 1/2 in x 3 5/8 in
Non-Marking	Yes
Number of Mounting Holes	4
Number of Wheels	1
Operating Temperature R.	-40 Degrees to 180 Deg.
Outside Bolt Hole Spaci.	1-3/4 in x 3-1/16 in
Overall Height	4-1/4 in
Plate Caster Bolt Hole .	C
Plate Size	2-1/2" x 3-5/8"
Plate Thickness	1/8"
Replacement Wheel	Mfr. No. P-RRP-030x013/.
Resistant To	High Chemical Resistanc.
Series	P12K Series
Standards	RoHS, ICWM
Stem Dia.	No Stem
Swivel Construction	Kingpin
Swivel Lock Type	No Lock Included
Swivel Raceway Type	Double Ball
Swivel Radius	2-13/16 in
System of Measurement	Inch
Thread Guards	Yes
Tread	Standard
Tread Color	Gray
Tread Shape	Standard
Wheel Bearing Type	Precision Ball
Wheel Color	Gray
Wheel Core Material	Polypropylene
Wheel Dia.	3 in
Wheel Width	1-1/4 in
Wheel/Tread Color	Gray
Wheel/Tread Hardness	85-95 Shore A
Wheel/Tread Hardness Ra.	Firm
Wheel/Tread Material	Thermoplastic Rubber
