TE Connectivity 4-1617567-1

B00KSQ2YQE

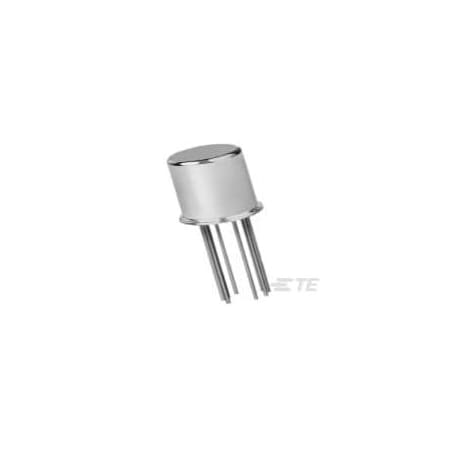

TE Connectivity Part Number 4-1617567-1

TE Connectivity Part Number 4-1617567-1zoom

Attributes

Key Value
CategoryRelays
Coil Current40.9 mA
Coil Insulation-
Coil Resistance220 Ohms, 220 ?
Coil TypeNon Latching, Non-Polar.
Coil Voltage9VDC
Coil Volts9V DC
Contact FormDPDT (2 Form C)
Contact Form - Relay2 Form C, DPDT, 2 C/O
Contact MaterialSilver Palladium (AgPd).
Contact Rating1A
Contact Rating (Current)1 A
DescriptionJMACDD-9XP=M39016/20-05.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number2266-4-1617567-1-ND
Electrical Connection -.Long Leads
FeaturesCoil Polarity Protectio.
Item - RelayMilitary/Aerospace High.
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.4-1617567-1
MfrTE Connectivity Aerospa.
Mounting TypePrinted Circuit Board, .
Must Operate Voltage6.3 VDC
Must Release Voltage0.9 VDC
Operate Time2 ms
Operating Temp. Range-65 to 125?C
Operating Temperature-65?C ~ 125?C
PackageBox
Package Quantity1
Power Consumption - Rel.368 mW
Product StatusActive
Relay TypeGeneral Purpose
Release Time4 ms
Seal RatingSealed - Hermetically
SeriesMACDD
Switching Voltage28VDC - Nom
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 4-1617567-168.85117TE CONNECTIVITY/AMP BRAND68.85 @ 1
Verical4-1617567-179.2417TE Connectivity79.24 @ 1
Newark42AJ371599.53117AMP - TE CONNECTIVITY99.53 @ 1
thumbzoomDigi-Key14723181103.77117TE Connectivity Aerospace, Defense and Marine103.77 @ 1
thumbzoomZoroG500976000145.991In StockTe Connectivity145.99 @ 1
