- mpn26A25L14
- brandname: Dodge
- manufacturername: Dodge

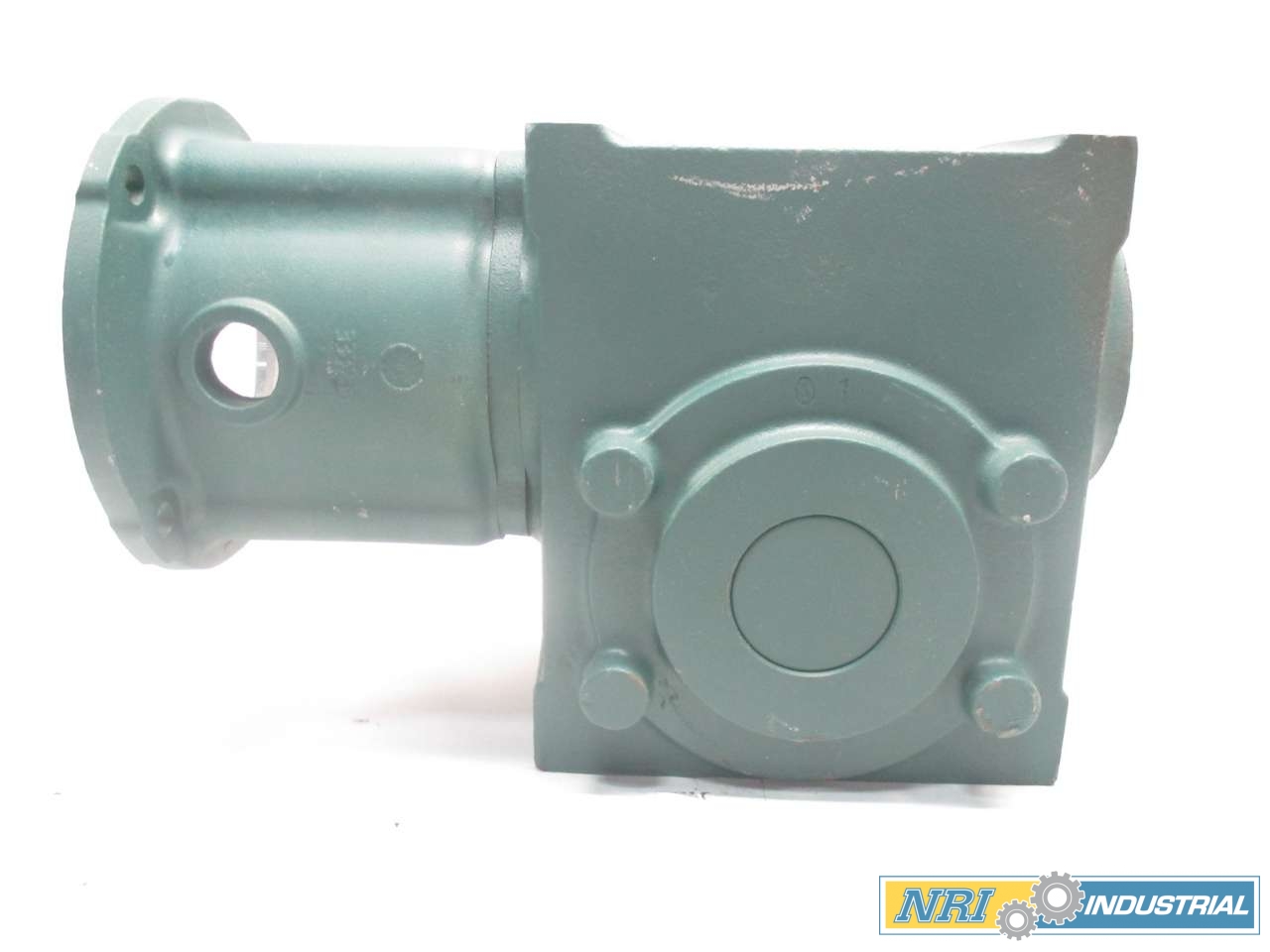

Dodge - 26A25L14 TIGEAR-2 Reducer
- Brand: Dodge
- PartNumber: 26A25L14
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.8700 in, 72.898 mm |
| Case size | 26 |
| Center distance (in) | 2.6 in, Center distance. |
| Center to end of shaft . | 5.6300 in, 143.002 mm |
| Finish | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 2.2600 hp, 1.685 kW |
| Horsepower rating output | 1.8600 hp, 1.387 kW |
| Housing material | Cast iron |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 2.26 |
| Input style | 3-Piece coupled |
| Lubrication type | PAG, standard temperatu. |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 6.3800 in, 162.052 mm |
| Mounting bolt pattern w. | 3.3800 in, 85.852 mm |
| Nominal ratio | 25 |
| Output | Left side solid output . |
| Output bore/shaft diame. | 1.25 in |
| Output horse power | 1.86 |
| Output shaft | Left (solid A) |
| Output shaft center to . | 8.6100 in, 218.694 mm |
| Output style | Left |
| Overhung load | 1610 lbf, 7161.637 N |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 1677 in/lb, 1677.0 in/lb |
| Ratio | 25 to 1 |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.1250 in, 28.575 mm |
| Shaft length output | 2.6700 in, 67.818 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 3.0000 hp, 2.237 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | D437510 | 576.99 | 1 | In Stock | | DODGE | | 576.99 @ 1 |
 | MRO Supply | 143382 | 1111.08 | 1 | In Stock | | Dodge | | 1111.08 @ 1 |
 | Walker Industrial | 26A25L14 | 1259.17 | 1 | In Stock | | Dodge | | 1259.17 @ 1 |
| kirbyrisk.com | 3245738 | 1501.19 | 1 | In Stock | | Dodge | | 1501.19 @ 1 |
| factorysupplyoutlet.com | MF15JU | 1718.27 | 1 | In Stock | 25 | DODGE | | 1718.27 @ 1 |
