CAI - HUBBELL WIRING DEVICE-KELLEMS IG15DRGRY

B07J9LYCCH

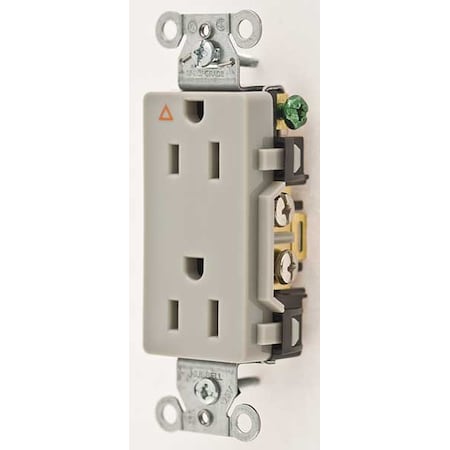

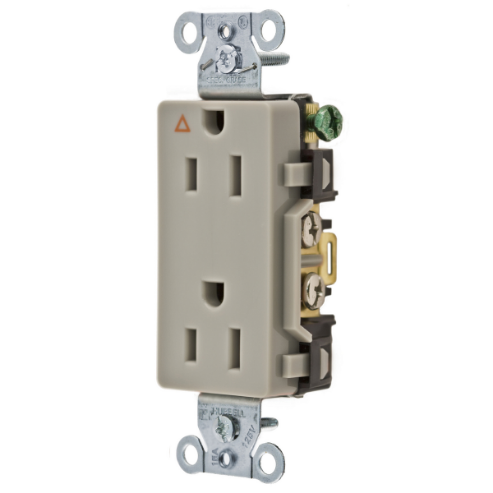

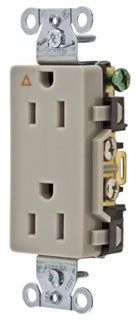

Hubbell Wiring Device-KELLEMS 15A Commercial Environments Isolated Ground Receptacle, Gray; Tamper Resistant: No

Hubbell Wiring Device-KELLEMS 15A Commercial Environments Isolated Ground Receptacle, Gray; Tamper Resistant: Nozoom

Attributes

Key Value
Accessory Group-
Additional Electrical P.Isolated Ground
Additional Electrical P.Isolated Grounding
AFCINo
Amperage15 A
Amps15
Amps - Plugs and Recep.15
Amps - Plugs and Recept.15 A
ApplicationCommercial Grade
Application EnvironmentCommercial
ApprovalsCSA, UL
Boot Code-
ColorGray
Color - Plugs and Recep.Gray
CommentsCommercial Grade
Connection OrientationStraight
ConnectivityBack and Side Wired Scr.
Contact MaterialBrass
Corrosion ResistantNo
Country of Origin (subj.China
Cover TypeNo Cover
Current / amperage rati.15 A
Current Rating15 A
Current rating15 A
Dielectric strengthWithstands 2,000V minim.
Dimensions1.29 in x 0.83 in x 3.2.
Display sizeStandard Sized Product
Environmental conditionsIndoor Dry Unless Prote.
Face Plate Height2.73 in
Face Plate Width1.33 in
Family SeriesHubbell Plugs & Recepta.
Flange TypeNon-Flanged
For LocationIndoor
GFCINo
GradeFederal Specification
Gross Weight0.15 lbs
GroundingIsolated Ground
Height3.28 in
Horsepower Rating1/2 hp
Housing ColorGray
Housing ColourGray
Housing MaterialNylon
HP1/2 hp
IlluminatedNo
IncludesGrounding Staple, Mount.
Includes Mounting Hardw.Yes
Isolated GroundYes
Isolated GroundingYes
ItemReceptacle
Item - Plugs and Recept.Isolated Ground Recepta.
Item NumberIG15DRGRY
Item typeDecorator Duplex
Key Resistance Properti.Corrosion Resistant
Length1.29 in
ManufacturerHubbell
Manufacturer Part NumberIG15DRGRY
MarketCommercial
MaterialNylon
Material - mounting har.Screw Mounting
Max HP0.5
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
Mounting TypeFlush
Mounting Type - Plugs a.Flush
Multimedia OutletNo
NEMA Configuration5-15R
NEMA Enclosure Rating1
Nema Rating5-15R
NEMA Receptacle Configu.5-15R
NEMA Receptacle Configu.5-15R
Net Weight0 lbs
Number of Gangs1
Number of poles2-Pole
Number of Poles2
Number of Poles & Wires2 Pole / 3 Wire
Number of Wires3
Number of wires3-Wire
OEM brand nameHubbell wiring device-k.
Operating temperatureMaximum continuous 75C .
Outlet TypeDecorator
Outlet Type - Plugs and.Decorator Duplex
Overall Depth3.28 in
Phase1, Single, Single phase
PolarizedYes
Power IndicatorNo
Primary Resistance Prop.Corrosion Resistant - C.
Product TypeReceptacle
Receptacle TypeSingle, Decorator Duplex
Resistance PropertiesCorrosion Resistant
SeriesCommercial specificatio.
ShroudedNo
Special FeaturesIsolated Ground
StandardsCertified to CSA C22.2,.
StyleStyle Line Decorator
Sub-CategoryDuplex Receptacles
Surge ProtectionNo
Surge SuppressionNo
Tamper ResistantNo
TypeDuplex, Standard Duplex
UL 94 Flammability Rati.V-2
USBNo
Voltage125VAC, 125 V, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC
Voltage rating descript.125 V
Wattage1875 W
Weather ResistantNo
Weather Resistant - Plu.No
Width (in)0.83
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wire size#14 AWG to #10 AWG
Wiring MethodBack and Side, Back, Si.
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comIG15DRGRY7.41In StockHubbell7.4 @ 1
thumbzoomZoroG29674478.21In StockHubbell1.818.2 @ 1
thumbzoomgordonelectricsupply.comIG15DRGRY8.851In StockHUBBELL8.85 @ 1
thumbzoomMRO Supply10297548.864In StockHubbell Wiring8.86 @ 4
thumbzoomGalcoIG15DRGRY-HBBL9.121In StockHubbell0.159.12 @ 1
thumbzoomcbtcompany.comIG15DRGRY9.531In StockHubbell Wiring Device-Kellems9.53 @ 1
thumbzoomsustainablesupply.comC119935615.121In StockHubbell0.1715.12 @ 1
Newark93Y917215.171In StockHUBBELL WIRING DEVICES15.17 @ 1
grainger.caHBLIG15DRGRY20.424180841In StockHUBBELL WIRING DEVICE-KELLEMS0.1720.42418084 @ 1
thumbzoomRaptor SuppliesAD7HWX24.86103751In StockHUBBELL WIRING DEVICE-KELLEMS24.8610375 @ 1
