Johnson Controls T9180

mpnT9180
brandname: Johnson Controls
manufacturername: Johnson Controls

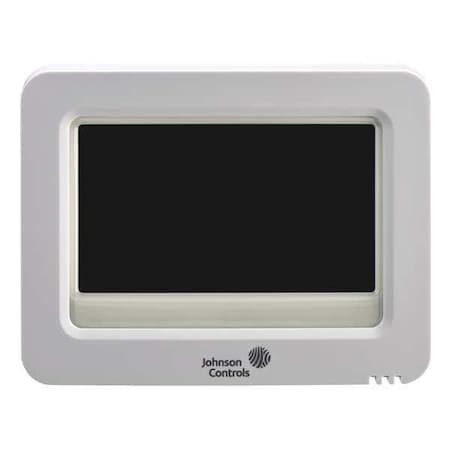

Series T9000 Commercial High-Resolution Color Touch Screen Digital Room Thermostat and Integral Skyport Cloud Services Wi-Fi

Brand: Johnson Controls
PartNumber: T9180
PackageQuantity: 1
Binding: Misc.
Manufacturer: Johnson Controls, Inc
Label: Johnson Controls, Inc

Attributes

Key	Value
750mV Compatible	No
Agency Compliance	UL/cUL Listed, CA Title.
Amazon Alexa Compatible	No
Application	Heat and Cool
Application/Stages	Heat and Cool; 3H/2C Co.
Automatic Changeover	Yes
Backlit Screen	Yes
Batteries Included	No
Battery Backup	No
Brand	Johnson Controls
Changeover Type	Automatic
Color	White
Compatible Software/Dev.	Android, Apple Homekit
Compatible System Type	Electric Forced Air Fur.
Control Range	35 Degrees to 99 Degre.
Control Type	Touch Screen
Country of Origin (subj.	China
Dehumidification Control	No
Depth	1 3/32 in
Differential Type	Adjustable
Display Color	Multicolor
Display Size	7.95 sq in
Display Type	Digital, Backlit
Dual Transformer Compat.	No
Electrical Connection T.	Hardwired
Fan Settings	Auto-on
Fan Switching	Auto-on
Features	Color Touch Screen, Wi-.
Filter Change Reminder	Yes
Filter Indicator	Yes
For Use With	Conventional Packaged o.
Frequency	50 Hz, 60 Hz
Height	4 1/64"
Housing Color	White
Housing Colour	White
Humidification Control	No
Includes	SD Memory Card Input
Includes Batteries	No
Includes Positive Off	Yes
International Shipping	No
Item	WiFi Thermostat, High-R.
Key Pad Lockout	Yes
Maximum Temperature Con.	99 Degrees F
Millivolt Compatible	No
Minimum Temperature Con.	35 Degrees F
Mounting Direction	Horizontal
Mounting Direction/Shape	Horizontal
Mounting Location	Wall
Mounting Type	Horizontal, Surface Mou.
Mpn	T9180
Number of Cooling Stage.	2
Number of Cooling Stage.	2
Number of Heating Stage.	3
Number of Heating Stage.	4
Number of Zones	1
Operating Humidity Range	+/-10% RH from 30% to 7.
Overall Depth	1 7/16 in
Overall Height	4 in
Overall Width	5 3/16 in
Power Method	Hardwired
Programmable Fan	Yes
Programming Capability	7-Day
Programs per Week	7
Remote Control Functions	On/Off and Temp. Control
Shape	Rectangle
SKU	ZO-G9911049
Smart Capabilities	Smart Alerts
Smart Connectivity	Wi-Fi Control
Stages	3H/2C Conventional, 4H/.
Stages Cool	2
Stages Heat	4
Standards	UL/cUL Listed, CA Title.
System Settings	Auto-Cool-Heat-Off
System Switching	Auto-Heat-Cool-Off
Temp. Settings per Day	4
Temperature Control Ran.	35 Degrees F to 99 Deg.
Temperature Differential	1 Degrees F
Temperature Limiting	Yes
Temperature Readout	Yes
Temperature Scale	Fahrenheit/Celsius
Temperature settings pe.	4
Temporary Program Overr.	Yes
Temporary Temperature H.	Yes
Terminal Designations	C, G, R, Sensor, W1/O/B.
Thermostat Type	Low Voltage
Voltage	20 to 30V AC, 24VAC
Width	5 13/64"
WiFi Capability	Yes
Wireless	No
