Marathon Electric Y502

B007ZQNV8A

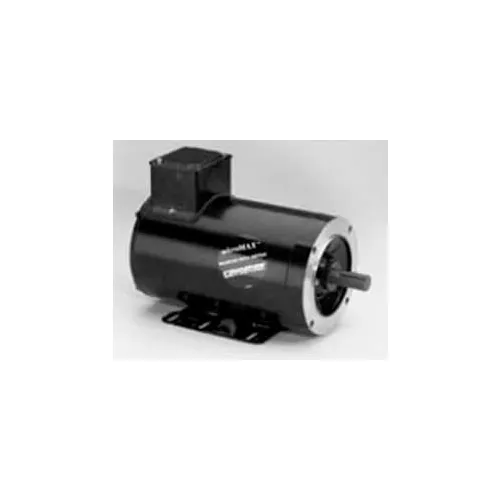

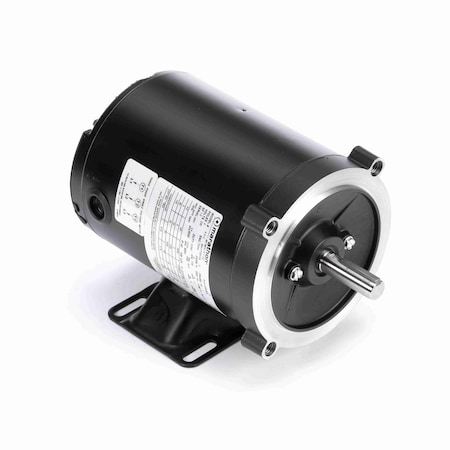

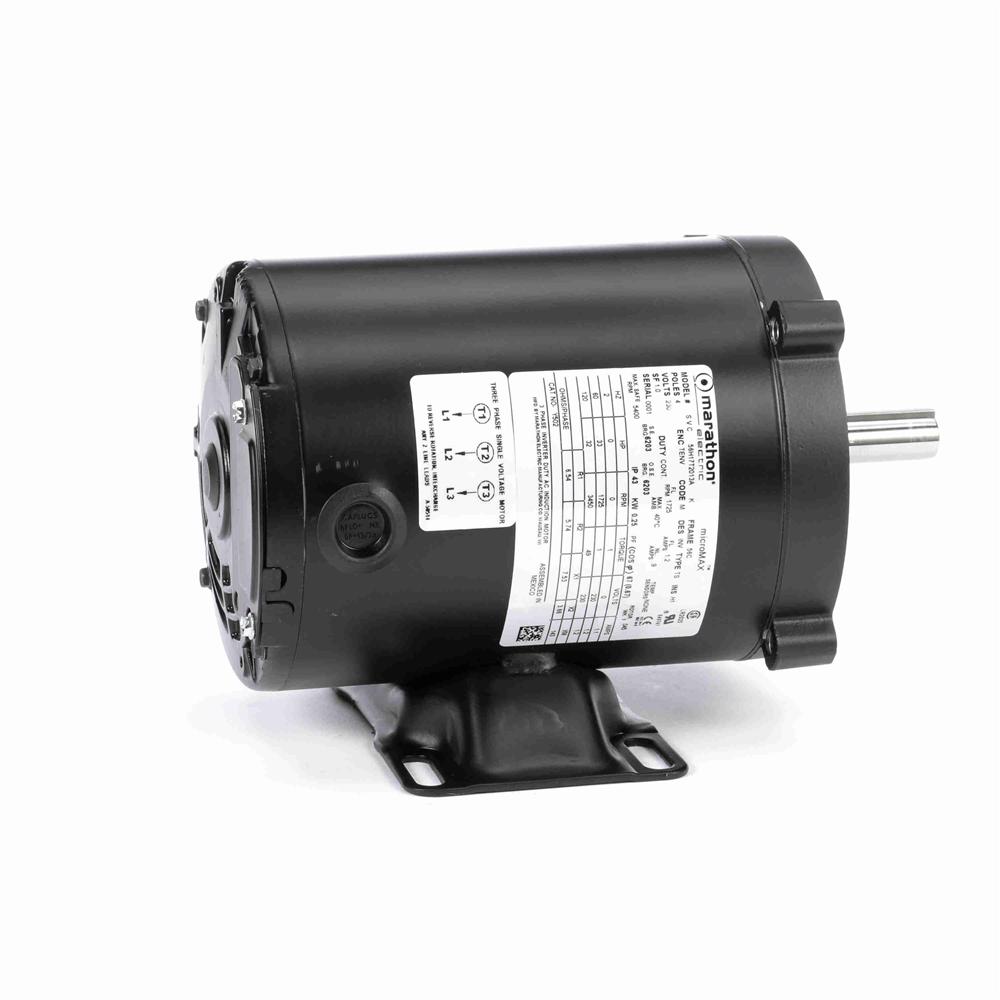

Marathon Y502 56C Frame Totally Enclosed Non Vent 56H17T2013 Vector Duty Motor, 1/3 hp, 1800 RPM, 230 VAC, 3 Phase, 1 Speed, Ball Bearing, C-Face with Base

Marathon Y502 56C Frame Totally Enclosed Non Vent 56H17T2013 Vector Duty Motor, 1/3 hp, 1800 RPM, 230 VAC, 3 Phase, 1 Speed, Ball Bearing, C-Face with Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.056H17T2013
Amps1.2
ApprovalsCE, CSA, UL
Bearing TypeBall
BearingsBall
CompositionSteel
Conduit Box LocationExterior
Conduit Box PositionF1
CT Speed Range1000:01:00
duty / condition type:Continuous Duty, Invert.
Duty CycleContinuous
Efficiency0.74
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialSteel
Enclosure TypeTENV (Totally Enclosed .
enclosure type:TENV (Totally Enclosed .
Encoder AcceptableNo
Family SeriesMarathon Electric Motor.
FinishBlack
Frame56C
frame material:Rolled Steel
frame size:56C
frequency rating:60 Hz
Full Load Amps1.20
full load current:1.20 A
full load efficiency:74.00 %
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Ins. ClassH
Insulation ClassH
insulation class:H
Inverter DutyYes
ip rating:43
ItemVector Motor
Item NumberY502
Length Less Shaft7 7/8 in
ManufacturerMarathon Electric
Manufacturer Model #056H17T2013
Manufacturer Part Number056H17T2013
Manufacturers Warranty .3 Years
Max. Ambient Temp.40 Degrees C
Max. Operating Frequency120 Hz
Max. Speed5,400 RPM
Maximum Ambient Tempera.40? C
Model Number56H17T2013
Motor ApplicationCrane
Motor BearingsBall
motor category:Vector Drive Motor
Motor Design3-Phase
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignTotally Enclosed Nonven.
Motor Frame MaterialSteel
motor horsepower:0.33 hp, 1/3 hp
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
motor phase:3 ph
Motor Service Factor1
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length6.25"
motor supply voltage:230 V
Motor Thermal ProtectionNone
MountingBase
Mounting OrientationHorizontal
Mounting TypeC-Face Footed
mounting type:Rigid Base/C-Face Flange
Nameplate RPM1,725
NEMA DesignA
NEMA Frame56C
Net Weight14 lbs
No. of Speeds1
Nominal Efficiency74 %
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Overall Length9.8 ", 9 15/16 in, 9.91"
overall length (c-dimen.9.91 in
Overload ProtectionNone
Package Quantity1
Phase3, Three
Product SeriesHIGH PERFORMANCE INVERT.
Product TypeThree Phase
RotationReversible
RPM1,800 RPM, 1725, 1800
Service Factor1
service factor:1.00
Shaft Dia.5/8 in
Shaft Diameter5/8"
shaft diameter:0.63 in
Shaft Length2.06", 2 1/16 in
Ship Weight17 lbs.
Speed Range1,000:1
StandardsUL Recognized (E49747),.
standards met:UL, CSA
synchronous rpm:1800 rpm
Torque1 ft-lb
Usable @ 200VNo
Usable @ 208VNo
Voltage230V AC, 230
Voltage (AC)230 VAC
Volts230
Weight17 lb
weight:17 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comY502212.01In StockMARATHON212.0 @ 1
thumbzoommotionindustries.com04482078291.411In StockMarathon Electric291.41 @ 1
thumbzoomapexindustrialautomation.comY502310.12116Marathon310.12 @ 1
thumbzoomemotorpro.comY502313.221In StockMarathon17.0313.22 @ 1
thumbzoomMRO Supply2270394319.961In StockMarathon Electric319.96 @ 1
thumbzoomAutomation DirectY502321.0126Marathon17.0321.0 @ 1
thumbzoomNational Supply NetworkB868985327.331In StockMARATHON MOTORS327.33 @ 1
thumbzoomGlobal IndustrialWBB868985345.951In StockMarathon Motors345.95 @ 1
thumbzoomGalcoY502-MARA366.51In StockMarathon Electric14.0366.5 @ 1
thumbzoomZoroG2530419407.991In Stock10Marathon407.99 @ 1
industrialmotors.comY502423.6125MARATHON ELECTRIC423.6 @ 1
thumbzoomcbtcompany.comY502448.41In StockMarathon Electric Motors448.4 @ 1
us.rs-online.com72650791462.171In StockMarathon Motors462.17 @ 1
grainger.caAOSY502527.595639461In StockMARATHON17.37527.59563946 @ 1
