Marathon Electric Y545

B08KHMVB9Q

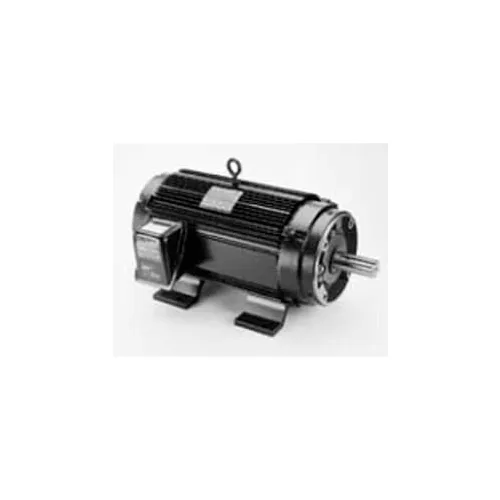

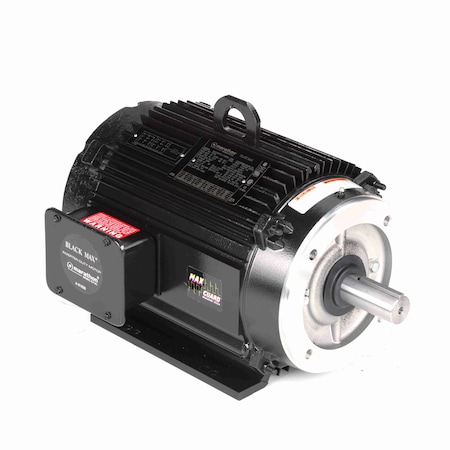

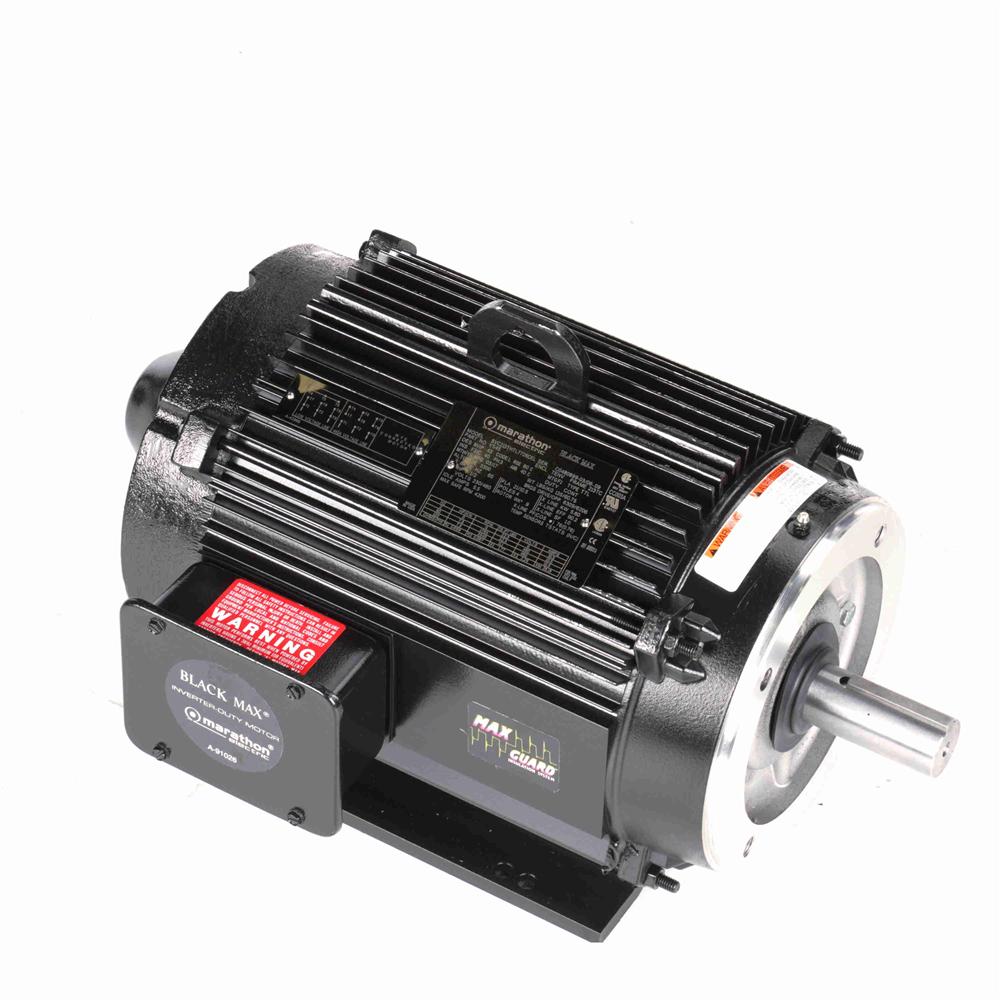

Marathon Electric Y545 Vector Drive Motor - 3 ph, 7-1/2 hp, 1800 rpm, 230/460 V, 213TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz

Marathon Electric Y545 Vector Drive Motor - 3 ph, 7-1/2 hp, 1800 rpm, 230/460 V, 213TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hzzoom

Attributes

Key Value
Alternate Mfr Part Numb.213THTL7726
Amps21/10.5
ApprovalsCE, CSA, UL
Bearing TypeBall
BearingsBall
CompositionAluminum
CT Speed Range1000:01:00
Current Rating21.0 ; 10.5 A
Duty CycleContinuous
Efficiency90.2, 0.902
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialAluminum
Enclosure TypeTENV (Totally Enclosed .
Family SeriesMarathon Electric Motor.
Frame213TC
Frequency60 Hz
Gross Weight0 lbs
Horsepower7-1/2 hp
Horsepower Rating7.50 HP
HP7 1/2, 7-1/2
Hz60
Insulation ClassF
Insulation TypeClass F
Inverter DutyYes
Item NumberY545
ManufacturerMarathon Electric
Manufacturer Model #213THTL7726
Manufacturer Part Number213THTL7726
Maximum Ambient Tempera.40? C
Model Number213THTL7726
Motor Shell Length10.25"
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid Base, C-Face Foot.
NEMA Frame213TC
Net Weight146 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
Overall Length20.54", 20.54 "
Overload ProtectionThermostat
Phase3, 3 Phase
Product SeriesHIGH PERFORMANCE INVERT.
Product TypeThree Phase
RotationReversible
RPM1,800 RPM, 1700 - 1800,.
Service Factor1
Shaft Diameter1-3/8"
Shaft Length3.12"
Ship Weight146 lbs.
Special FeaturesService Factor - 1
StandardsUL Recognized
Supply Voltage230 VAC ; 460 VAC
TypeSquirrel Cage Inverter .
UPC Code722856024817
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comY5451378.01In StockMARATHON1378.0 @ 1
thumbzoomMRO Supply22702771484.1212Marathon Electric1484.12 @ 1
thumbzoomapexindustrialautomation.comY5451493.211122Marathon1493.21 @ 1
AmazonTPB007ZQO9HC1646.351In Stock2Marathon Electric1646.35 @ 1
AmazonUNKB007ZQO9HC1646.351In StockMarathon Electric1646.35 @ 1
thumbzoomZoroG25305221943.9911Marathon1943.99 @ 1
thumbzoomGalcoY545-MARA1948.471In StockMarathon Electric146.01948.47 @ 1
thumbzoomAutomation DirectY5452276.01In StockMarathon146.02276.0 @ 1
us.rs-online.com722412672350.231In StockMarathon Motors2350.23 @ 1
thumbzoomemotorpro.comY5452358.861In StockMarathon146.02358.86 @ 1
thumbzoommidwestapplianceparts.comY545-MT-P2403.711In StockMarathon2403.71 @ 1
cbtcompany.comY5452551.781In StockMarathon Electric Motors2551.78 @ 1
thumbzoomNational Supply NetworkB8684962592.491In StockMARATHON MOTORS2592.49 @ 1
thumbzoomGlobal IndustrialWBB8684962635.01In StockMarathon Motors2635.0 @ 1
kirbyrisk.com5102762776.381In StockMarathon2776.38 @ 1
