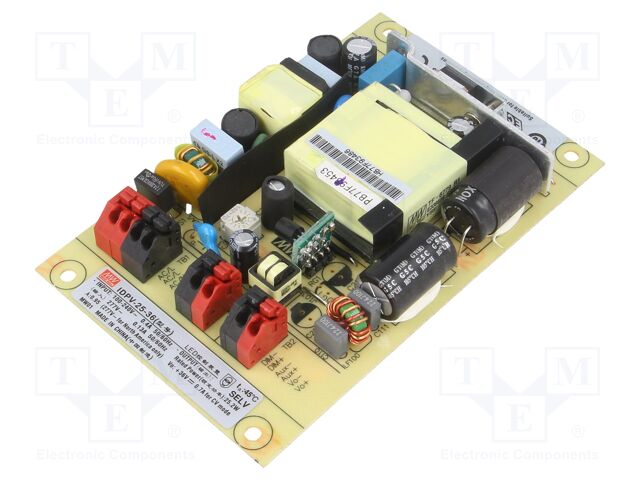

Mean Well USA IDPV-25-36

B07ML5PFSL

IDPV-25-36, AC/DC LED Power Supply - Const Volt - 25.2W - Fixed: 700mA - Dim: 0-10 Vdc/PWM (2 Items)

IDPV-25-36, AC/DC LED Power Supply - Const Volt - 25.2W - Fixed: 700mA - Dim: 0-10 Vdc/PWM (2 Items)zoom

Attributes

Key Value
ApplicationLED
Approval AgencyCB, CCC, CE, cURus, ENEC
Base Product NumberIDPV-25
Body dimensions114.5x72.5x20mm
CategoryPower Supplies - Extern.
Current - Output (Max)700mA
DimmingAnalog, PWM
Efficiency82%
Electrical connectionTerminal Block
FeaturesOCP, SCP
Kind of power supplyLED
ManufacturerMEAN WELL
Manufacturer seriesIDPV-25
MfrMEAN WELL USA Inc.
Mounting TypeChassis Mount
Number of outputs1
Number of Outputs1
Operating modesConstant Voltage
Operating temperature-20...40?C
Operating Temperature-20?C ~ 45?C
Output current0.7A
Output voltage36V DC
PackageBox
Part StatusActive
Power25.2W
Power (Watts)25 W
Protectionanti-overload OPP,
Ratings-
SeriesIDPV-25 (25W)
Size / Dimension4.51" L x 2.85" W x 0.7.
Termination StyleTerminal Block
TopologyAC DC Converter
TypeConstant Voltage
Type of power supplyswitched-mode
Voltage - Input (Max)295VAC
Voltage - Input (Min)90VAC
Voltage - Isolation3.75 kV
Voltage - Output36V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key1065995919.492512MEAN WELL USA Inc.19.4925 @ 2
thumbzoomTMEIDPV-25-3620.1912MEAN WELL20.19 @ 2
