Molex / Waldom 55959-1430

B07QQDZ8DG

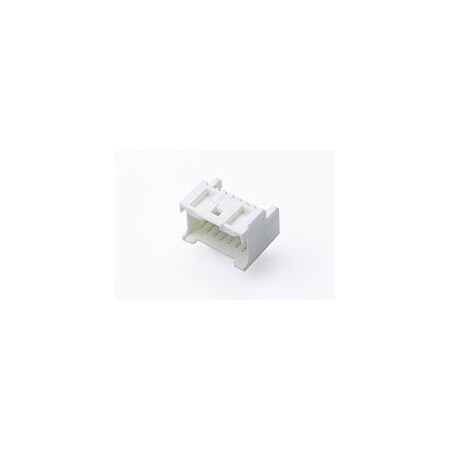

55959-1430, Conn Shrouded Header HDR 14 POS 2mm Solder RA Thru-Hole MicroClasp Tray (100 Items)

55959-1430, Conn Shrouded Header HDR 14 POS 2mm Solder RA Thru-Hole MicroClasp Tray (100 Items)zoom

Attributes

Key Value
ApplicationFor PCB
ApplicationsGeneral Purpose, Indust.
Body OrientationRight Angle
BrandMolex
ColorNatural
Connection DirectionAngle
Connector ShapeSquare
Connector SystemWire to Board
Connector TypeHeader
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post0.126" (3.20mm)
Contact MaterialBrass
Contact PlatingTin
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A, 3A
Current Rating (Amps)-
Fastening TypeLatch Holder
Features-
Flammability RatingUL 94V-0
Hole Center to Center2 mm
Ingress Protection-
Insulation ColorNatural
Insulation Height0.461" (11.70mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerMolex
Mated Stacking Heights-
MaterialPolyester
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrMolex
Mounting TypeThrough Hole, Through H.
Number Of Contacts14
Number of Contacts14
Number of Positions14
Number of Positions Loa.All
Number Of Rows2
Number of Rows2
Operating Temperature-
Overall Contact Length-
Package Quantity1
Part StatusActive
Pitch2mm
Pitch - Mating0.079" (2.00mm)
PRICED TO CLEARYes
Row number2
Row Spacing - Mating0.197" (5.00mm)
SeriesMICROCLASP
Shrouded/UnshroudedShrouded
ShroudingShrouded - 4 Wall
StandardsUL E29179
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationKinked Pin, Solder
Termination MethodSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 55959-14300.54100100MOLEX0.54 @ 100
TTI55959-14300.621001600Molex0.62 @ 100
thumbzoomjensentools.com101943840.631100Molex0.63 @ 100
Allied ElectronicsE52960760.641100Molex Incorporated0.64 @ 100
Newark05N12830.6731100MOLEX0.673 @ 100
Mouser538-55959-14300.6811100Molex0.681 @ 100
thumbzoomRS Delivers406-5180.920410100Molex0.9204 @ 100
TMEMX-55959-14300.933100MOLEX0.93 @ 100
thumbzoomMisumi USA55959-14301.071100Molex1.07 @ 100
thumbzoomRadwell55959-14301.610100MOLEX1.6 @ 100
thumbzoomZoroG2765530132.01100Molex132.0 @ 100
