Panasonic Industrial Devices EEE-1AA471UAP

B00GQQRP0K

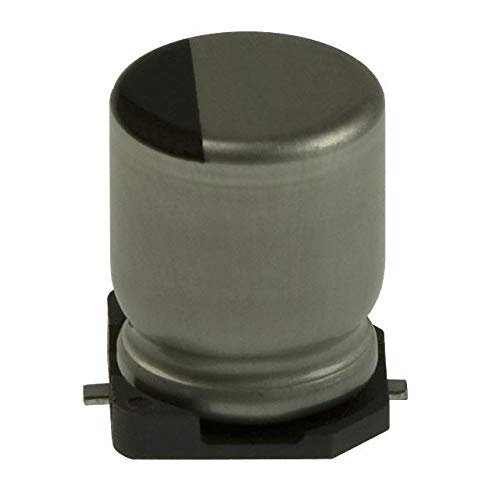

Panasonic Industrial Devices EEE-1AA471UAP Capacitor Aluminum

Panasonic Industrial Devices EEE-1AA471UAP Capacitor Aluminumzoom

Attributes

Key Value
Alternate Part No.667-EEE-1AA471UAP
ApplicationsAutomotive
Base Product NumberEEE-1AA
Body dimensions?8x10.2mm
BrandPanasonic
Capacitance470 ?F, 470 uF, 470?F
Capacitance Range100 to 999 uF
Case Code(F)
Case Diameter8 mm
Case Height10 mm
Case Length10.5 mm
Case SizeDia. 8 x L 10.5 mm
CategoryCapacitors
Conform to the normAEC-Q200
Dimensions0.315 Dia. x 0.413 L ; .
Dissipation Factor DF0.26
Element MaterialAluminum Electrolytic
ESR (Equivalent Series .-
Height - Seated (Max)0.402" (10.20mm)
Lead Spacing-
Leakage Current3 uA
Lifetime @ Temp.1000 Hrs @ 85?C
Load Life2000 h
ManufacturerPanasonic
Manufacturer Part No.EEE-1AA471UAP
Manufacturer seriesVS(A)
Maximum Operating Tempe.+ 85 C, 85 C
MfrPanasonic Electronic Co.
Minimum Operating Tempe.- 40 C, -40 C
MountingSMD
Mounting TypeSurface Mount
Operating current390mA
Operating Temperature-40?C ~ 85?C
Operating temperature-40...85?C
Operating voltage10V DC
PackageTape & Reel (TR)
Package / CaseRadial, Can - SMD
PackagingReel, Tape & Reel
PolarizationPolar
ProductHigh Temp Electrolytic .
Product CategoryAluminium Electrolytic .
Product StatusActive
RatingsAEC-Q200
Ripple Current390 mA
Ripple Current @ High F.663 mA @ 10 kHz
Ripple Current @ Low Fr.390 mA @ 120 Hz
SeriesS, S Series, S-A
Service life1000h
Size / Dimension0.315" Dia (8.00mm)
Surface Mount Land Size0.327" L x 0.327" W (8..
TerminationSMD
Termination StyleSMD/SMT
Tolerance20% %, ?20%, 20 %
TypeAluminum Capacitors SMD.
Type of capacitorelectrolytic
Voltage - Rated10 V
Voltage Rating10 VDC
Voltage Rating DC10 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comEEE-1AA471UAP0.17811000PANASONIC0.178 @ 1
Newark49W50250.215500465PANASONIC0.215 @ 1
thumbzoomTMEEEE1AA471UAP0.239500418PANASONIC0.239 @ 500
us.rs-online.com702562520.49297500465Panasonic Electronic Components0.49297 @ 500
Digi-Key17177420.881465Panasonic Electronic Components0.88 @ 1
thumbzoomswatee.comEEE-1AA471UAP1.6811667Panasonic1.68 @ 1
