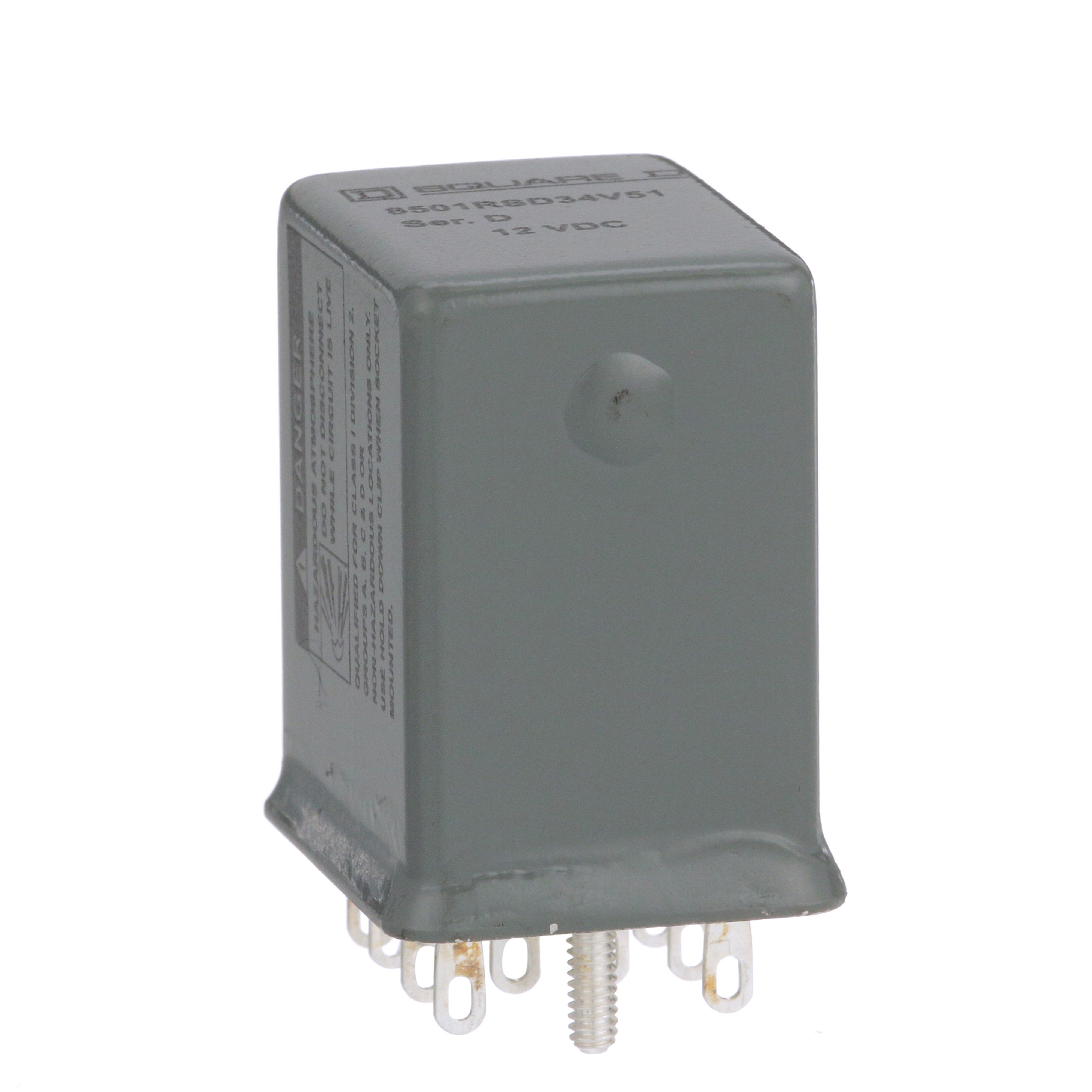

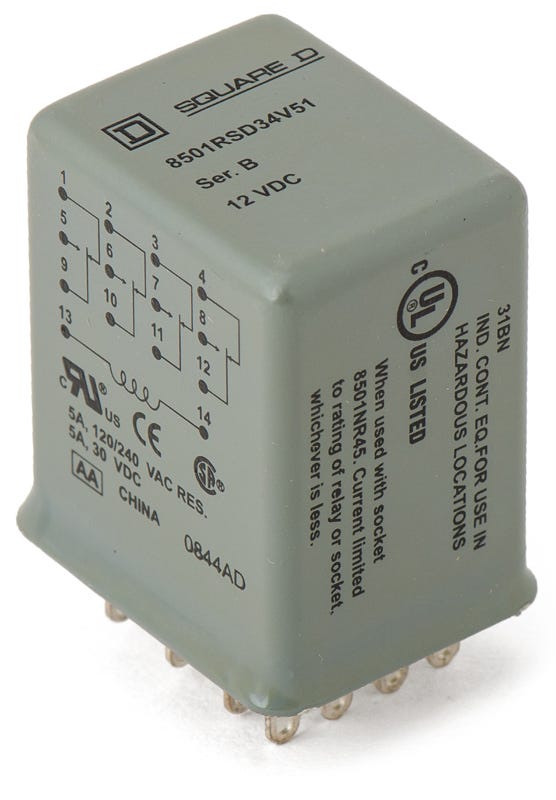

Square D by Schneider Electric 8501RSD34V51

B07696FQ6F

Power Relay, 4PDT, 12 VDC, 5 A, 8501R Series, Socket, DC

Power Relay, 4PDT, 12 VDC, 5 A, 8501R Series, Socket, DCzoom

Attributes

Key Value
BrandSquare D
CategoryRelays
Coil Insulation-
Coil TypeNon Latching
Coil Voltage12 V DC, 12 VDC, 12VDC
Coil Volts240VAC
Contact Current Rating5 A
Contact Form4PDT, 4PDT (4 Form C)
Contact MaterialSilver Tin Oxide (AgSnO)
Contact Rating (Current)5 A
Contact Voltage Rating300
Control Voltage12
Country of OriginCN - China
Country of Origin (subj.China
Current Rating5 A
Depth38.9 mm
ECCNEAR99
Features-
Gtin785901324683
Height29.4 mm
HP Ratingnot rated
ItemRelay 240Vac 5Amp Type .
Materialhermetically sealed sil.
MfrSchneider Electric
Mounting TypeSocketable
Mpn8501RSD34V51
Must Operate Voltage-
Must Release Voltage-
Operate Time20 ms
Operating Temperature-40?C ~ 55?C
PackageBox
Primary TypePower Relays
Product StatusActive
Relay TypeGeneral Purpose
Release Time20 ms
Seal Rating-
Series8501 Series, Square D, .
Switching Voltage240VAC, 30VDC - Max
Termination StylePlug In
Time Cycle20 ms - pick-up || 20 m.
Typelow voltage
UNSPSC39122325
Upc78590132468
UPC Code785901324683
Use With8501NR45
Width23.1 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Superbreakers8501RSD34V5141.081In StockSchneider Electric / Square D41.08 @ 1
thumbzoomsuperbreakers.com8501RSD34V5141.081In StockSquare D41.08 @ 1
thumbzoomZoroG057186858.01In Stock35Square D0.158.0 @ 1
thumbzoommostelectric.com8501RSD34V5164.661In StockSQUARE D/TELEMECANIQUE64.66 @ 1
thumbzoomgordonelectricsupply.com8501RSD34V5165.091In Stock10SQUARE D65.09 @ 1
thumbzoomstandardelectricsupply.com237936667.991In StockSquare D (Schneider Electric)67.99 @ 1
thumbzoomNewark16B658377.811In StockSQUARE D BY SCHNEIDER ELECTRIC77.81 @ 1
us.rs-online.com7040560879.01In StockSquare D79.0 @ 1
thumbzoomsustainablesupply.comC304552980.491In StockSquare D0.180.49 @ 1
Graybar2209911194.55041In StockSquare D (Schneider Electric)94.5504 @ 1
Digi-Key16613447109.5961In Stock47Schneider Electric109.596 @ 1
thumbzoomNational Supply Network69535466110.191In StockSquare D110.19 @ 1
